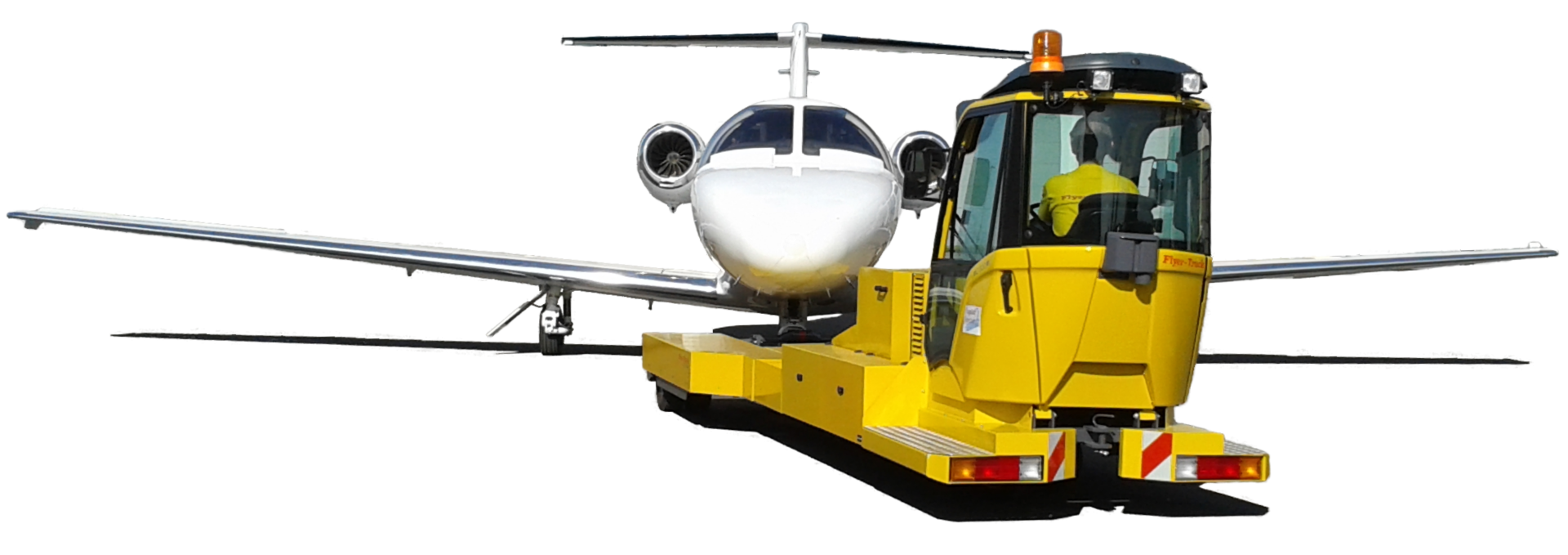

C200 electro
C200 electro
adapted for aircraft and helicopter
up to 25.0 t.
max. take off weight
Overview
Technical Data
drive system
2 AC drive motors each 48V, 5.0 kW
transmission PMS
battery
Lead-acid batteries
battery charger
HF charger 230/48V 120A with charge level indicator
brake
Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake multi-disc brake
parking brake multi-disc brake
speed
Forward and backward:
max. about 20 km / h
operation range
6 hours operating time, depending on speed and load
frames
Loading weight: 3500 kg,
for aeroplanes approx. 25.0 t MTOW
weight empty: 3900 kg
for aeroplanes approx. 25.0 t MTOW
weight empty: 3900 kg
control / steering
Pulse contact control
electro-hydraulic steering operated by steering wheel
cabin
Driver cabin for one operator with ergonomically situated operating elements, side door, sliding window
landing gear bracket
Universal receptacle for double front landing gear, up to width tire 660 mm, with hydraulic front gear wheel hold system, hydraulic door closing system
axes
2 drive axes
tires
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
lighting / safety device
- 2 emergency stop
- Driver, movable working and safety lights
- Safety up turn light on top
- Windshield wipers in the front and rear with wash
- Safety up turn light on top
- Windshield wipers in the front and rear with wash
- heating
- Signal horn
- Fire-extinguisher
- Fire-extinguisher
Configuration
Configurate your Flyer-Truck aircraft mover especially for your individual use:
- cabin equipment
- lighting
- landing gear bracket

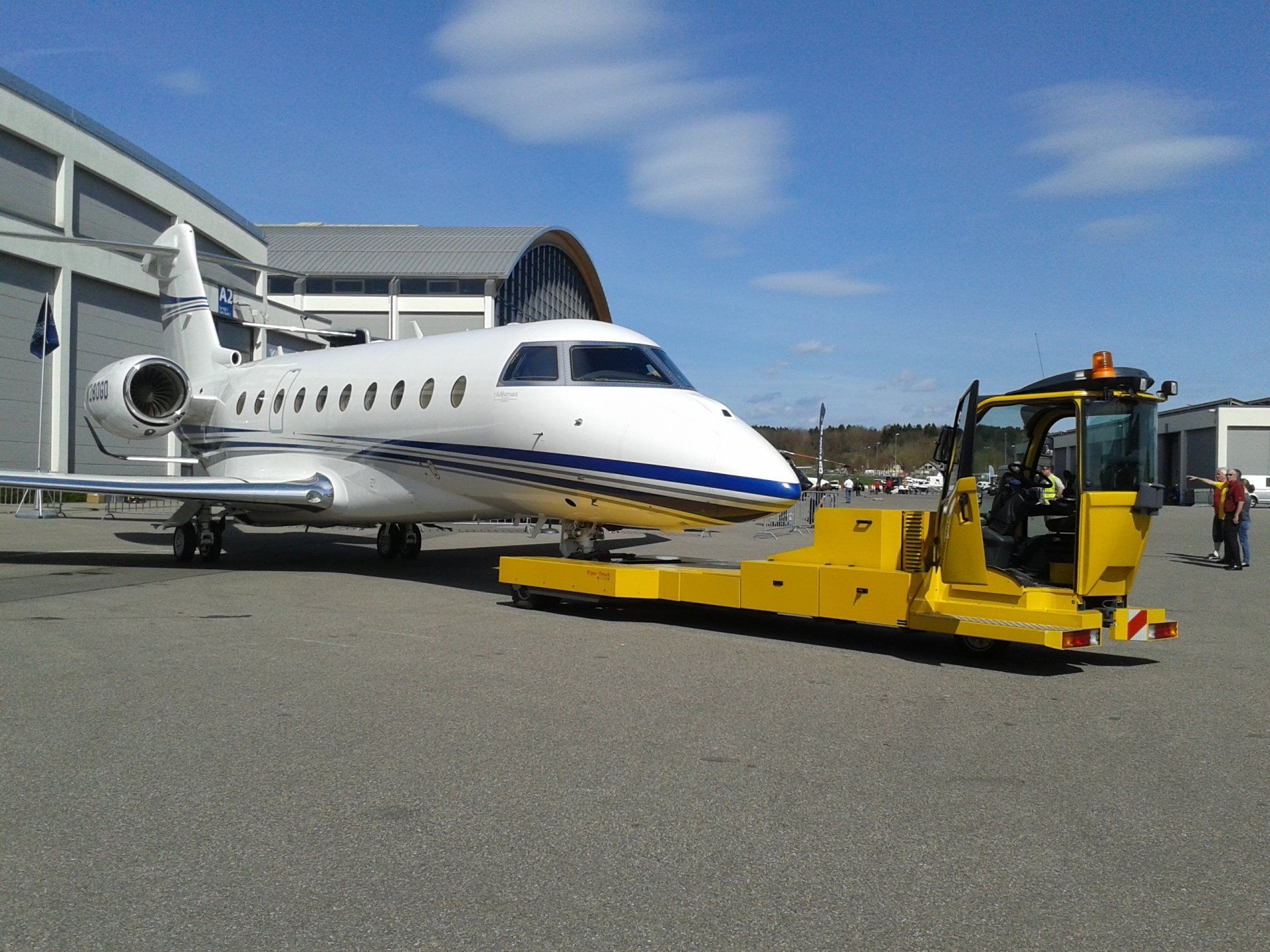

Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
