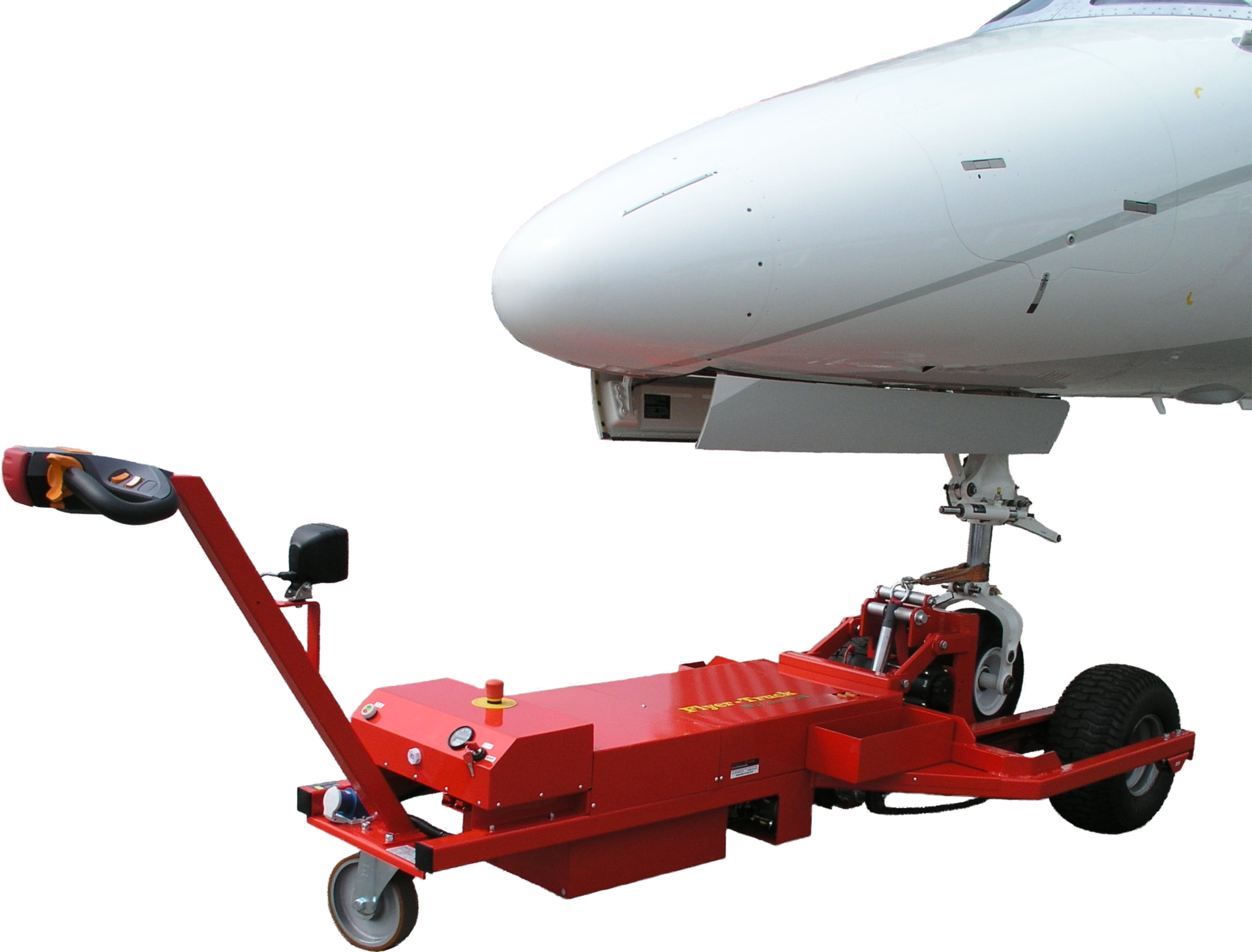

FLT 57 electro
FLT 57 electro
adapted for aircraft and helicopter
up to 5.7 t.
max. take off weight
Overview
Technical Data
drive system
Electric engine AC 24V 1.8 kW
Differential axis TX1
Pulse contact control
Differential axis TX1
Pulse contact control
battery
2 x 12V 135 Ah
battery charger
HF charger 230/24V 18A with charge level indicator
incl. 230 V adapter cable 1.0 m (charging cable)
incl. 230 V adapter cable 1.0 m (charging cable)
brake
Spring power brake magnetic 16 Nm / 24V
speed
Forward and backward:
approx. 0 - 6 km / h
frames
Loading weight: 1100 kg,
up to approx. 5.7 t MTOW
weight empty: 330 kg
dimension: L x W 3.07 x 1.21 m
weight empty: 330 kg
dimension: L x W 3.07 x 1.21 m
steering

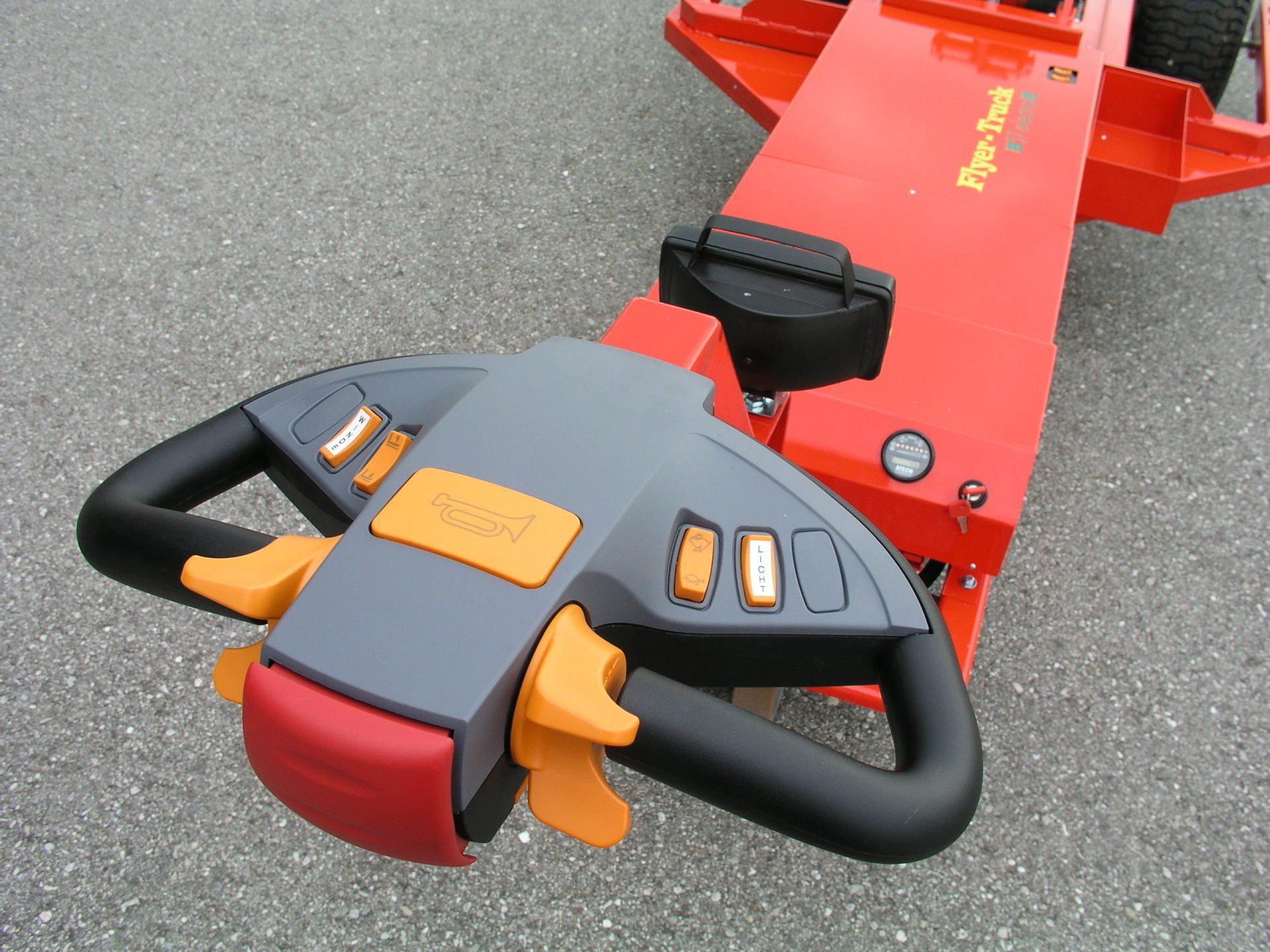

Drawbar steering header
Plastic case with driving switches, fast and creep speed, signal horn
Plastic case with driving switches, fast and creep speed, signal horn

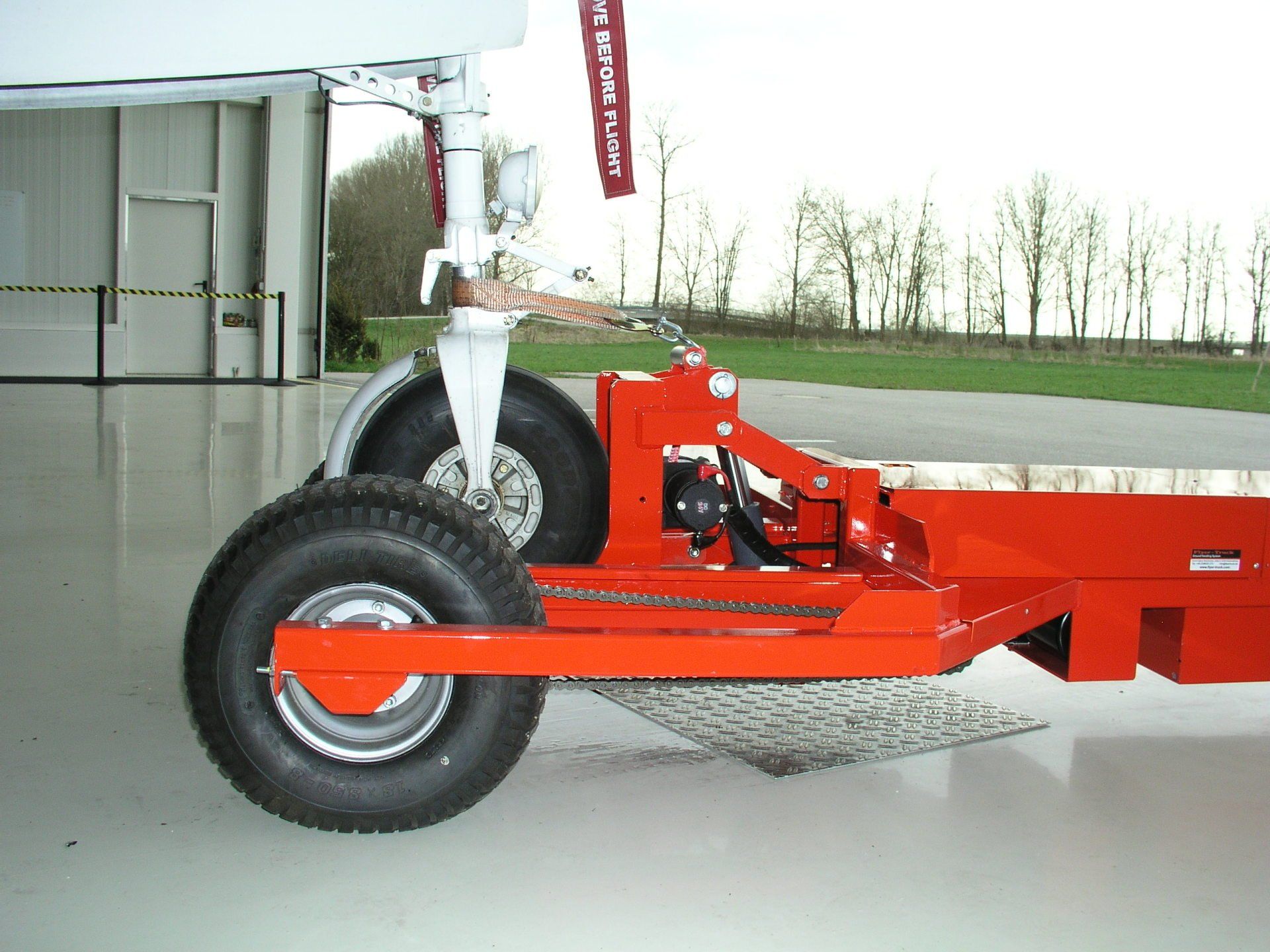

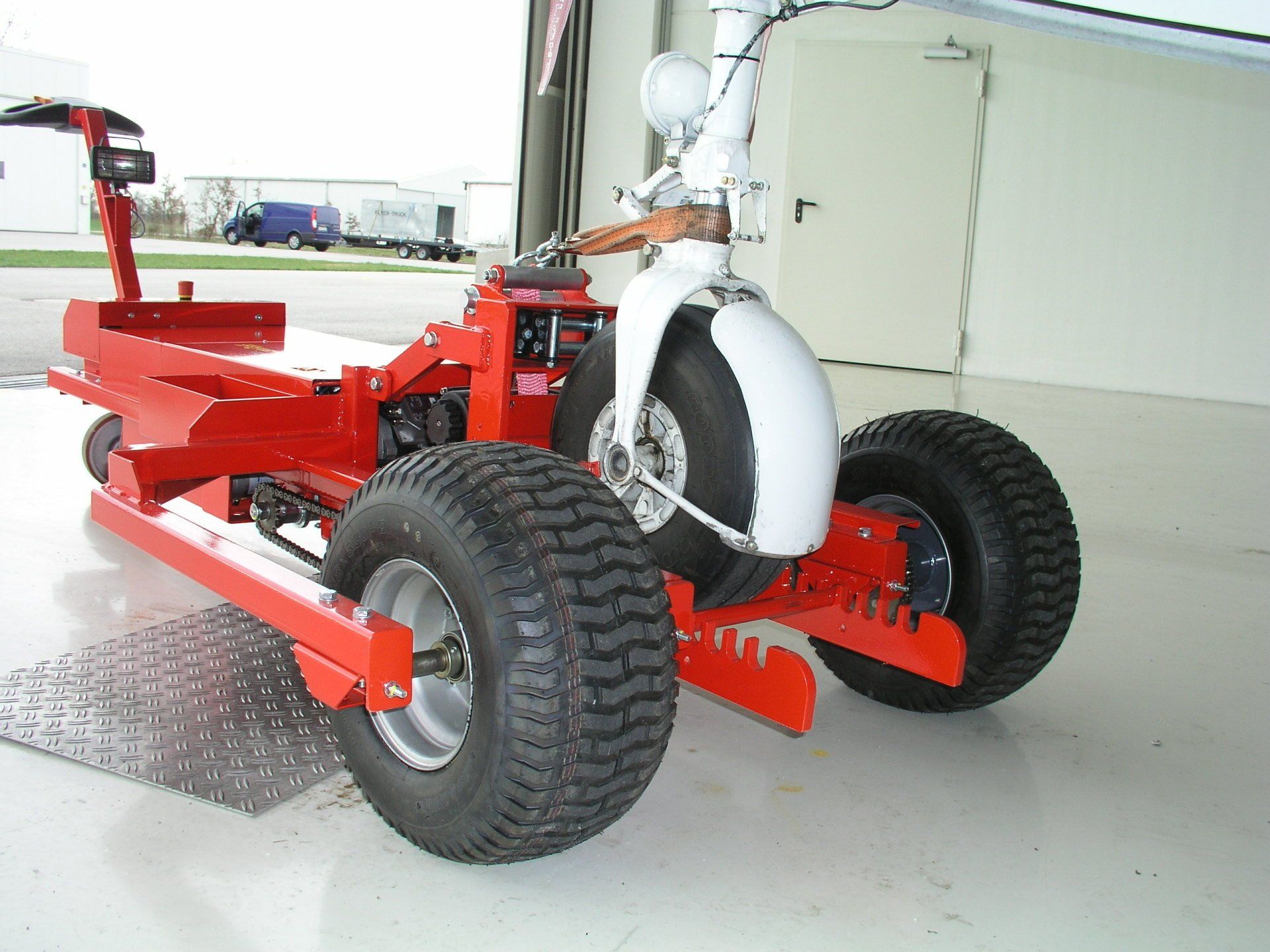

landing gear bracket

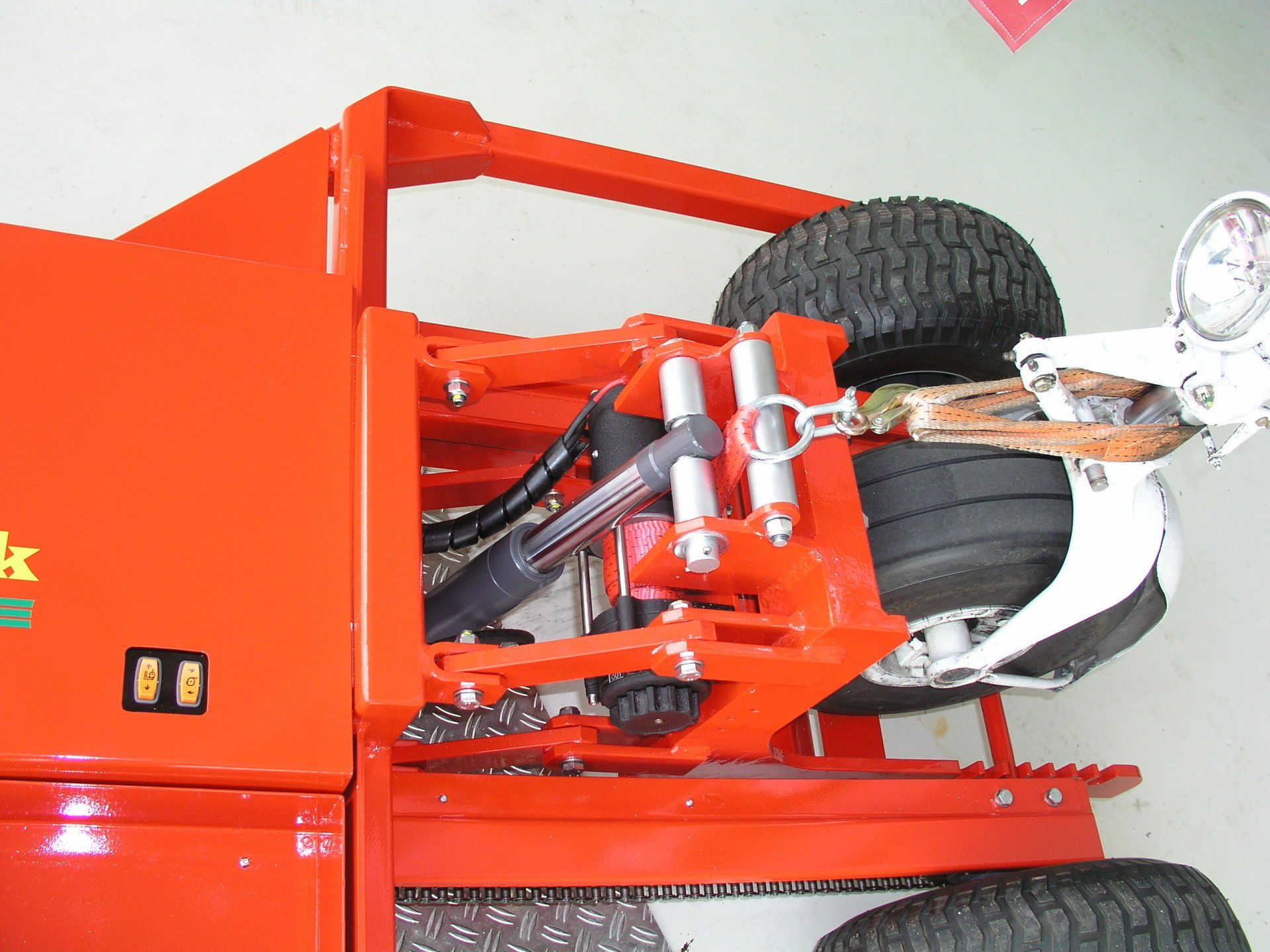

Electric hydraulic landing gear bracket with powerful belt winch and a mechanical safety pin,
the aircraft isn’t moving during the docking
tires
18.0 x 8.50-8 drive wheels
GPU
External GPU connector
Gallery
Adapted for aircraft types like:
Beech Bonanza 33, 36, Baron 58
Beech Jet 400, 400 A

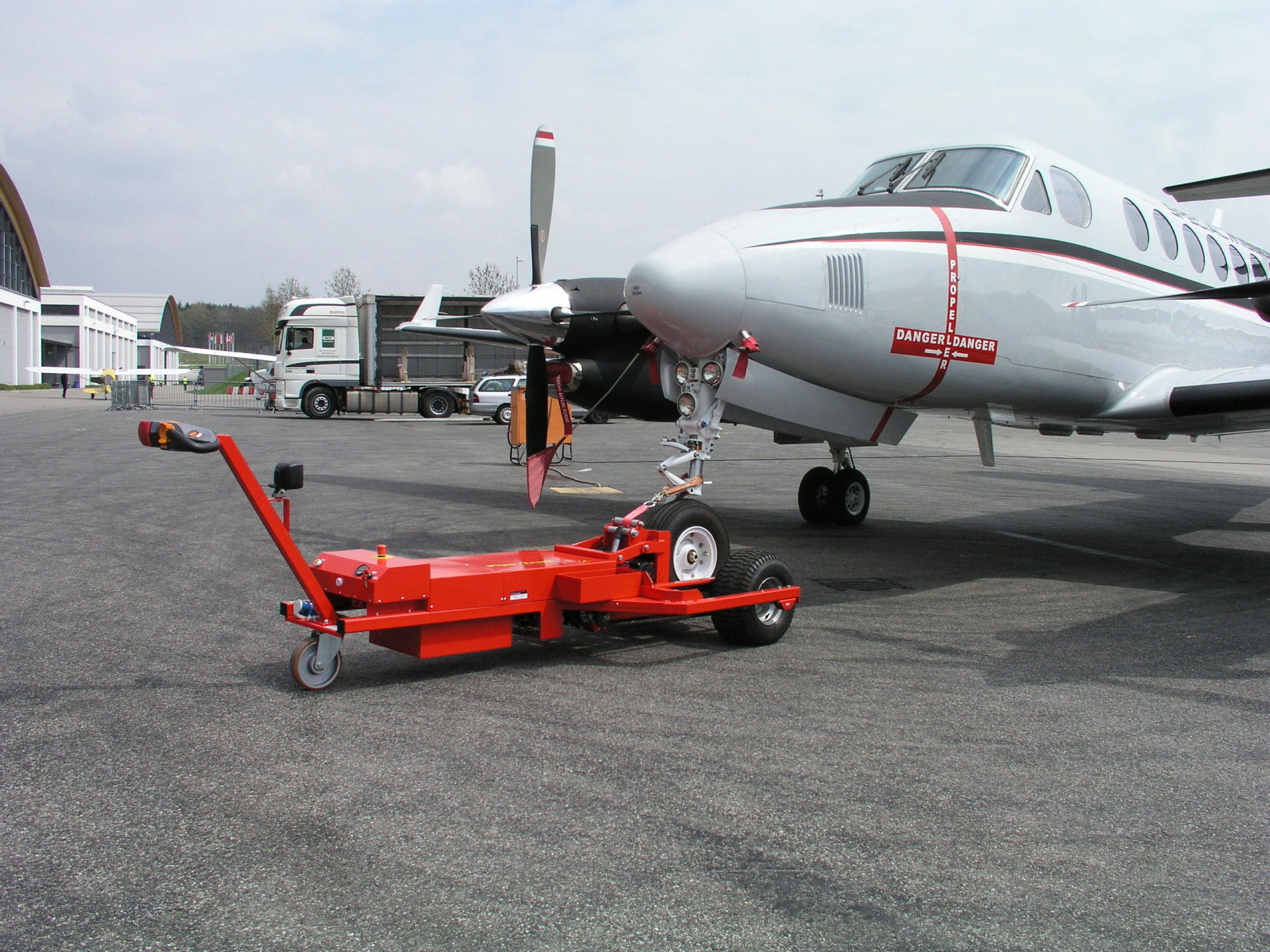

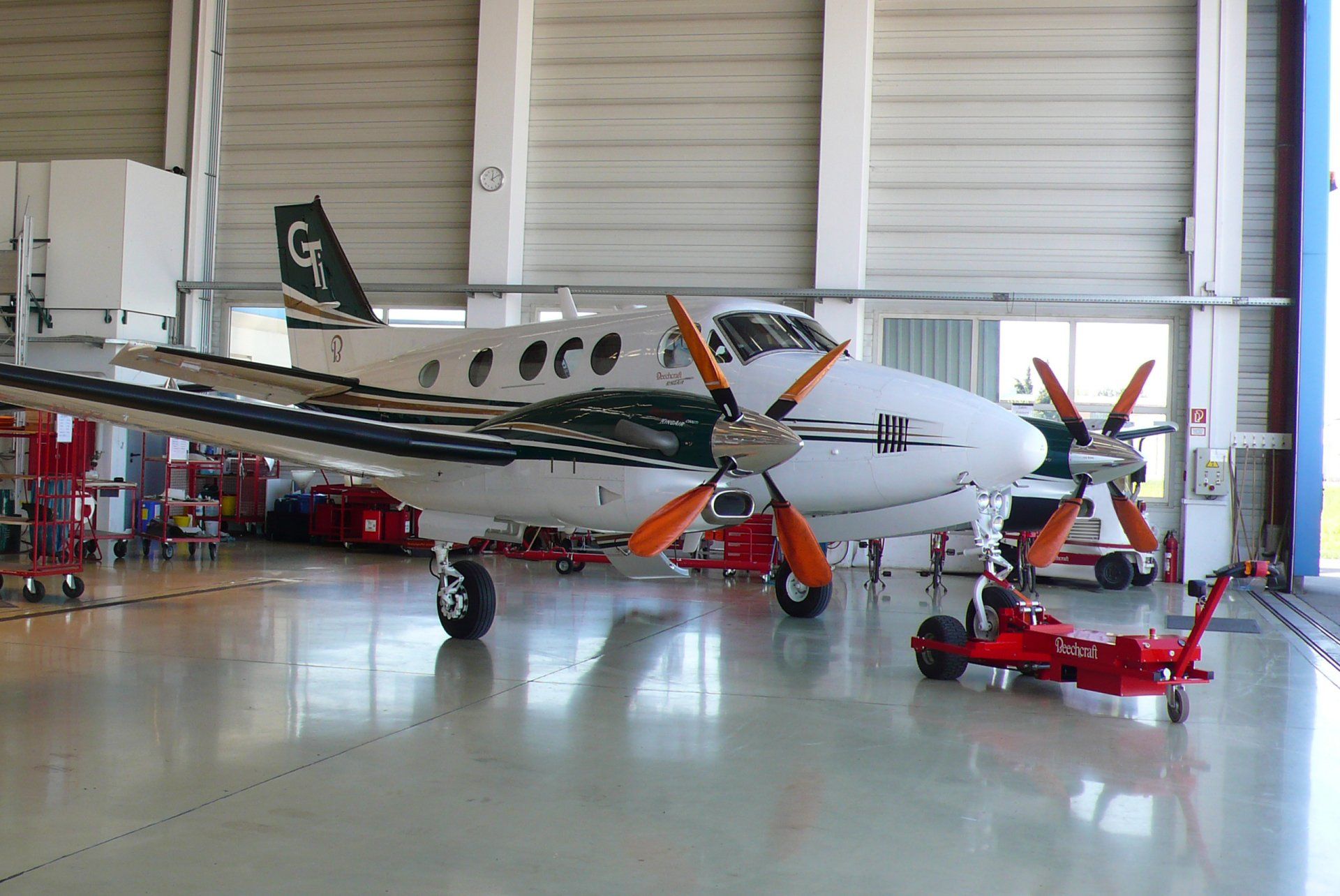

Beech King Air 90, 200, 250, Beech Premier 1
Cessna Caravan I, 414, Golden Eagle 421

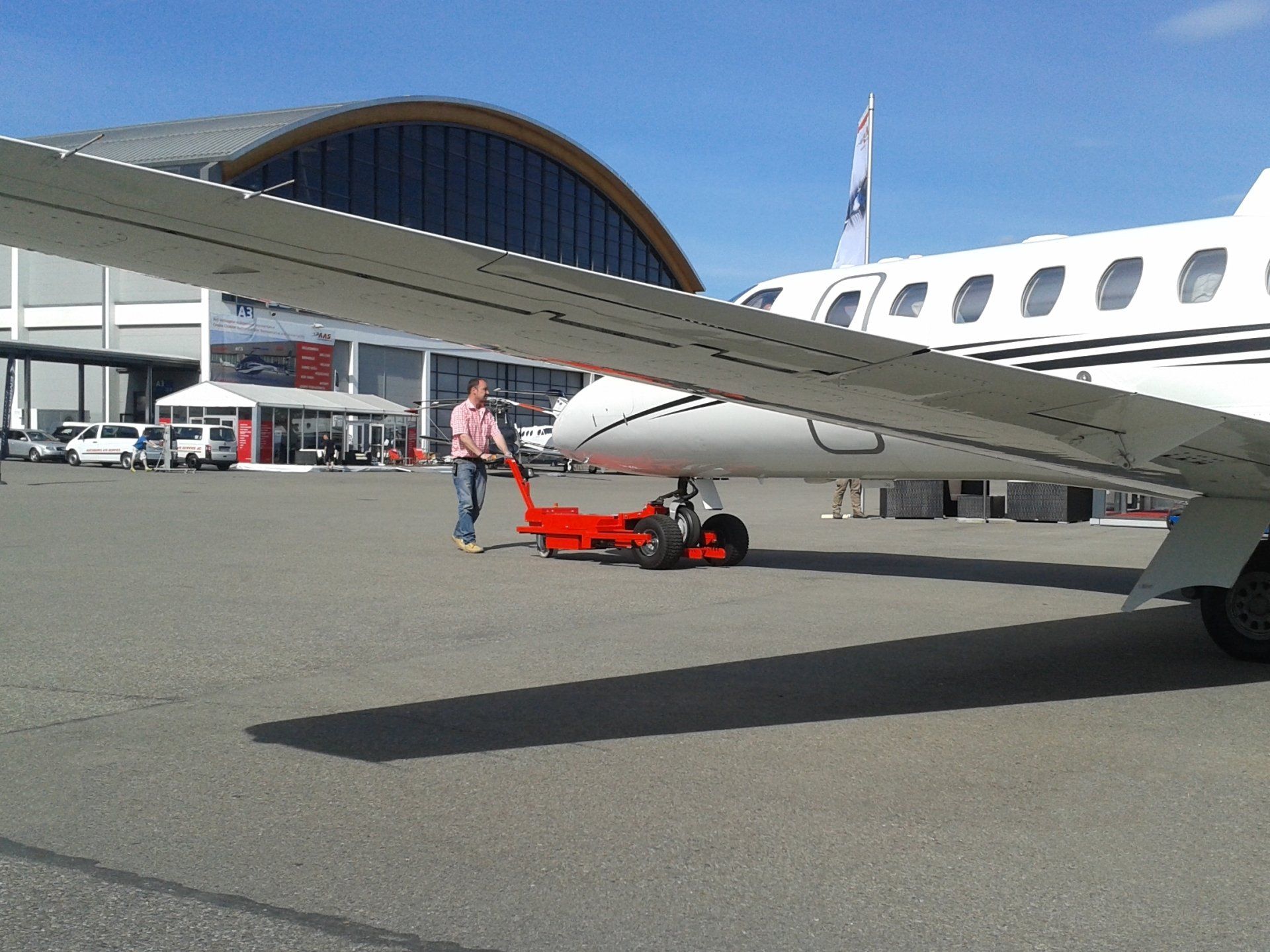

Cessna Citation II, Citation Jet CJ1 , CJ2 , M2, MustangCirrus Jet
Daher TBM 700, 850, 900

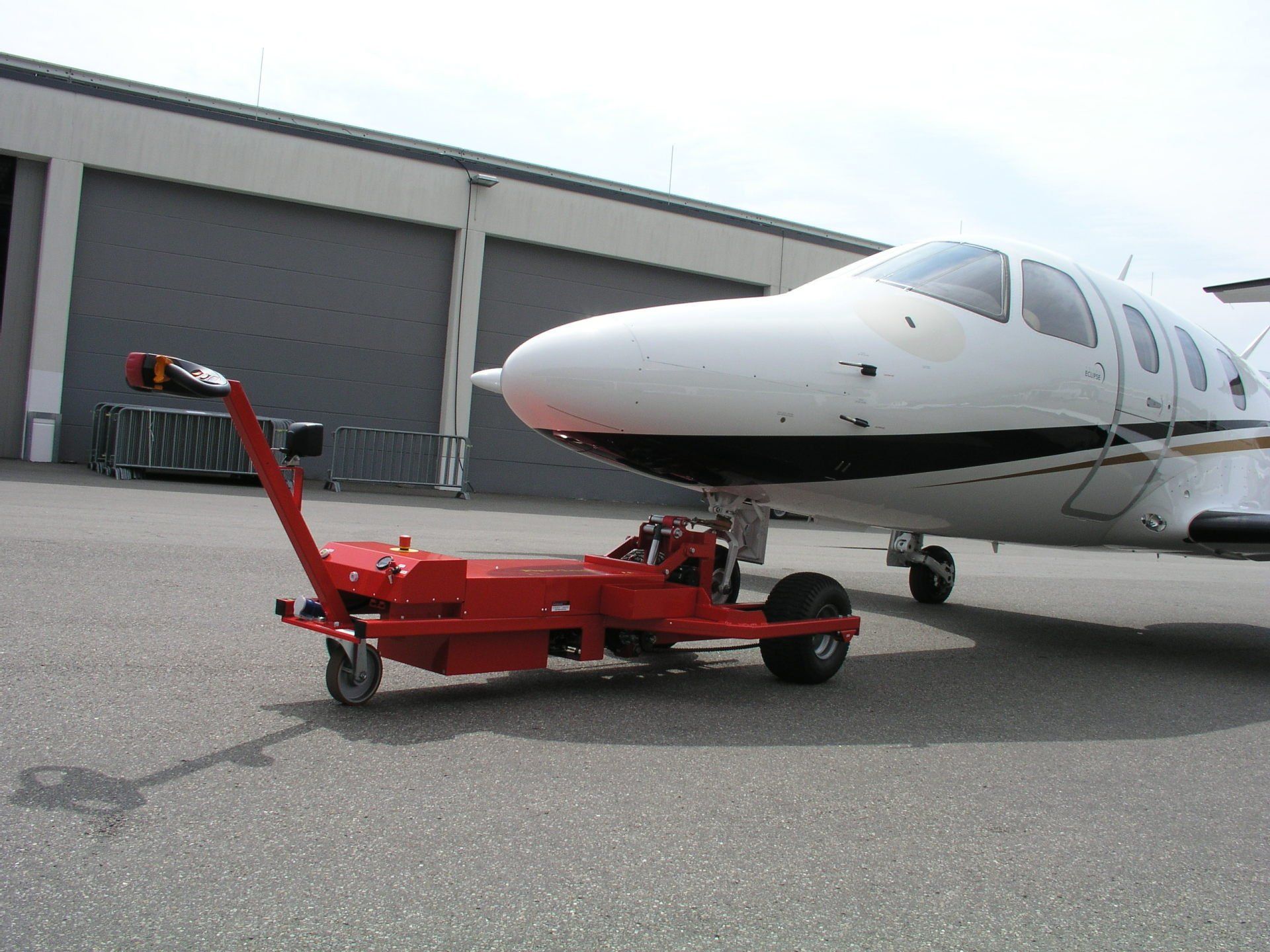

Eclipse 500Hondajet
Learjet 24
Phenom 100

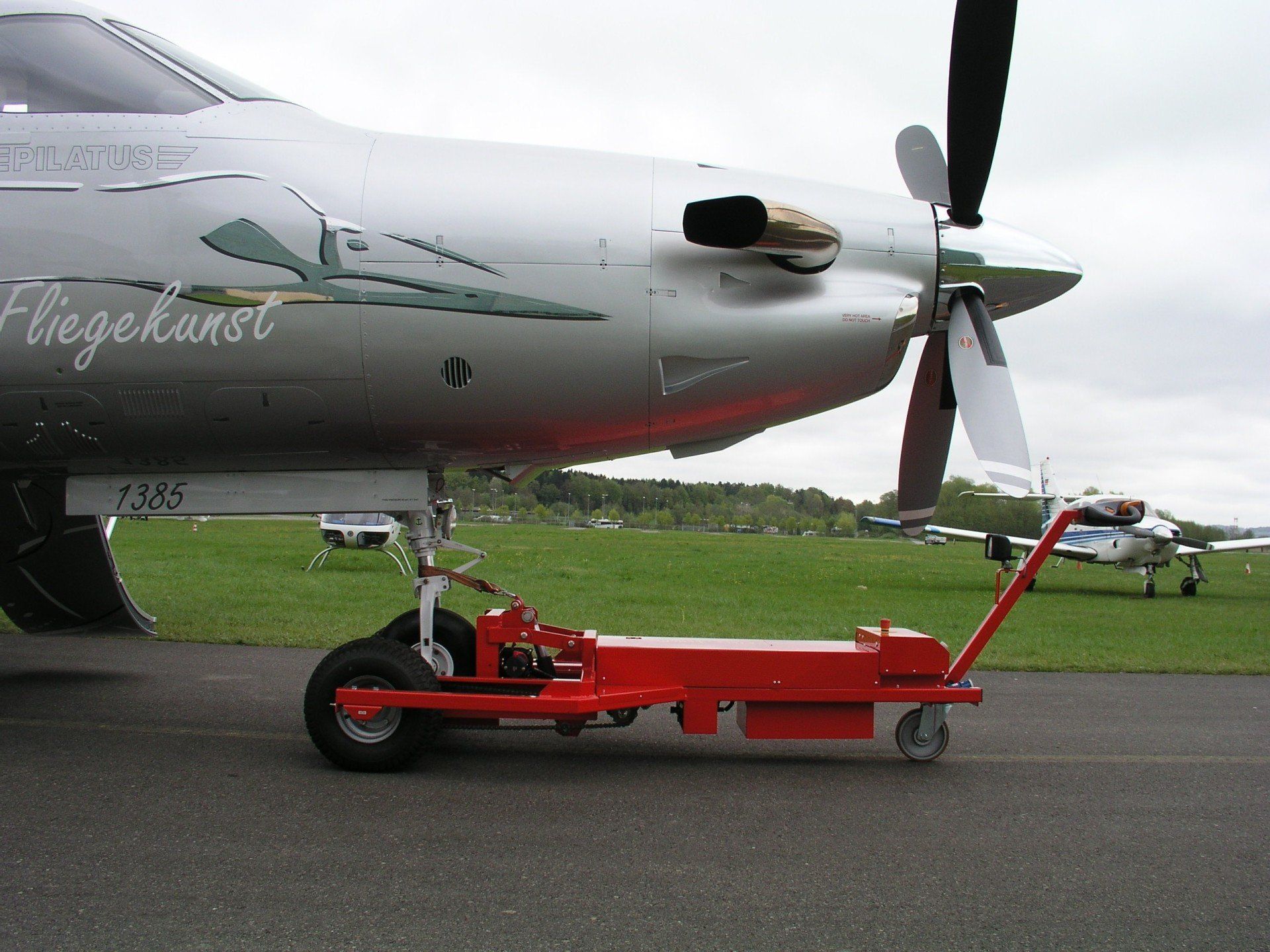

Pilatus PC-12
Piper PA 46, Cheyenne I/II
