FLT 42

adapted for aircraft and helicopter
up to 4.2 t. max. take off weight

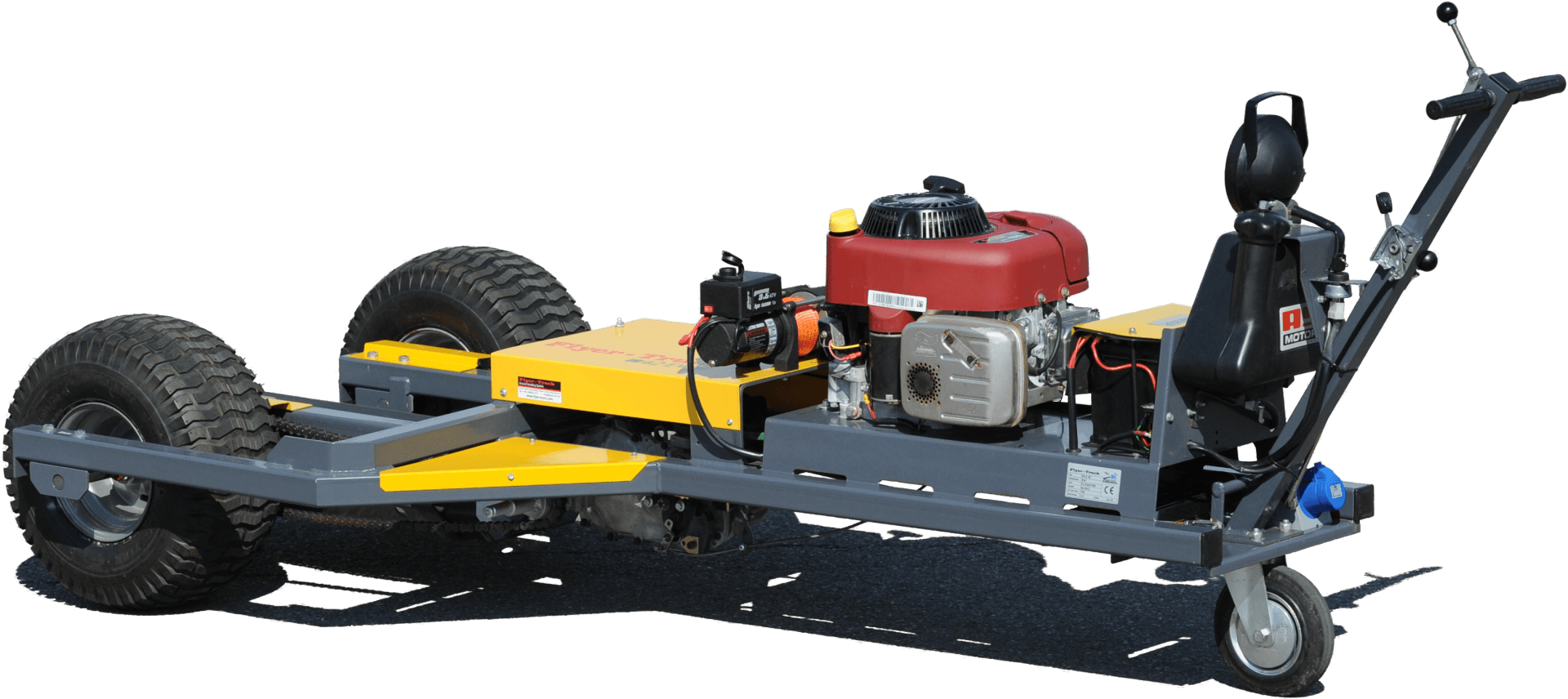

FLT 42

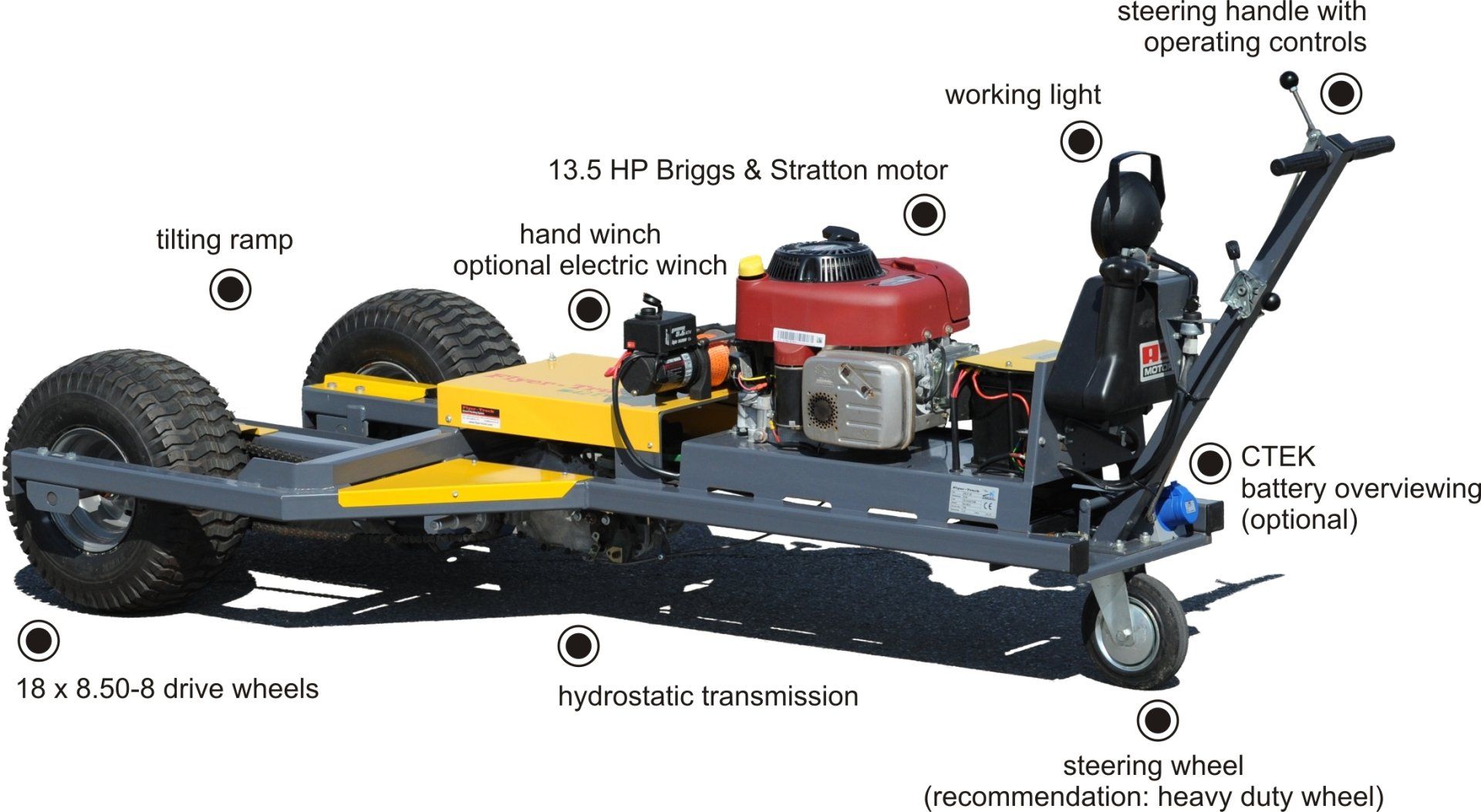

Overview

FLT 42

Technical Data

engine

13.5 HP Briggs & Stratton AVS 4-stroke engine with electric starter

gearbox

Hydraulic traction drive - forward and reverse gear.
Continuously variable speed control, single lever operation

frames

Loading weight: 750 kg,
up to approx. 4.2 t MTOW
weight empty: 150 kg
dimension: L x W 2.70 x 1.21 m

landing gear bracket

Simple bracket for nose wheel pick up with tilting ramp,
hand winch with flat belt and to pull lever

transmission

2 drive wheels, one roller chain drive

tires

18.0 x 8.50-8 drive wheels

electric

Battery 12V 45 Ah

Gallery

FLT 42 with Beech Duke
FLT 42
FLT 42
FLT 42 with Beech Baron
FLT 42 with Piper PA46 Meridian

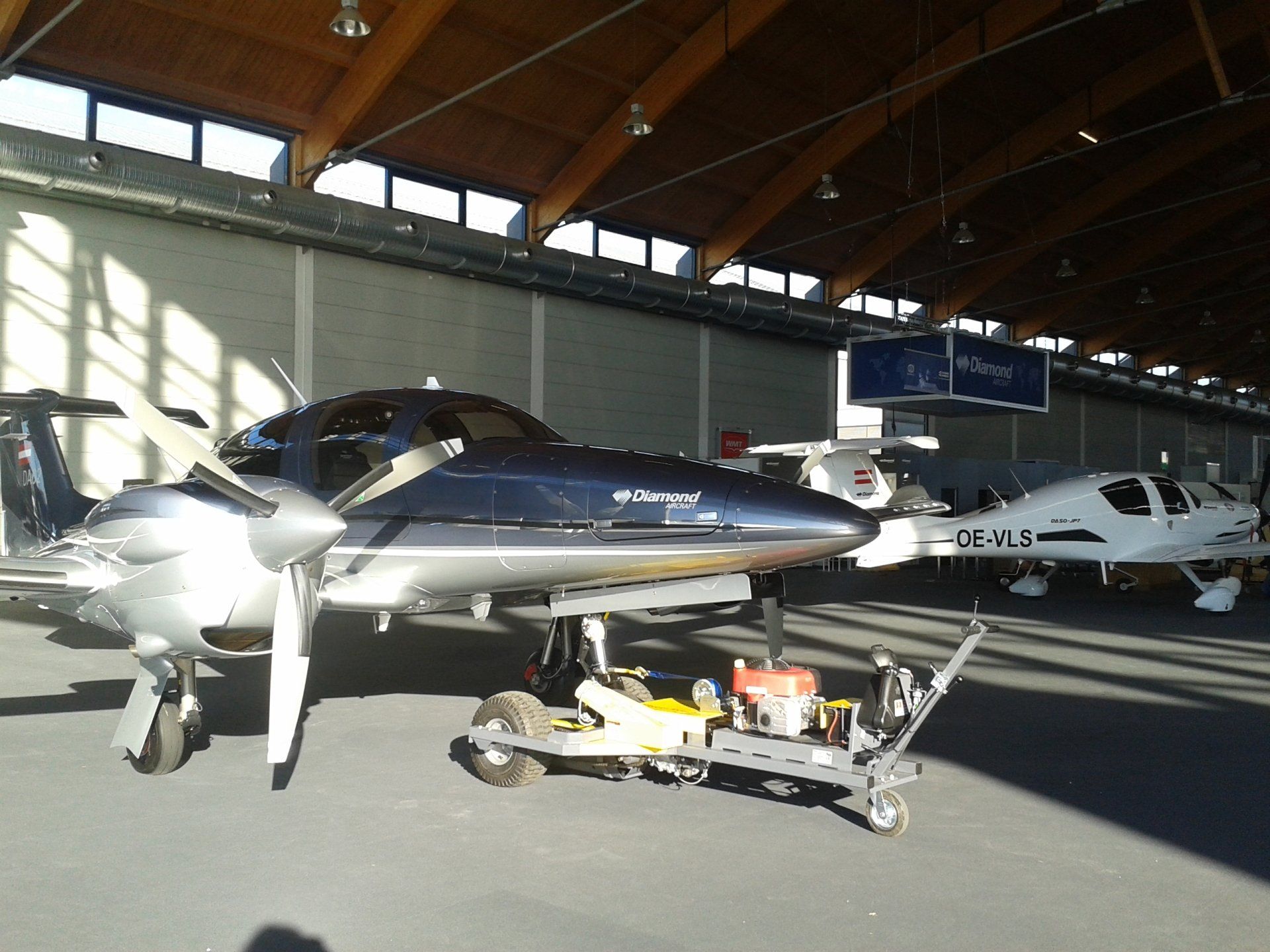

FLT 42 with Diamond DA62

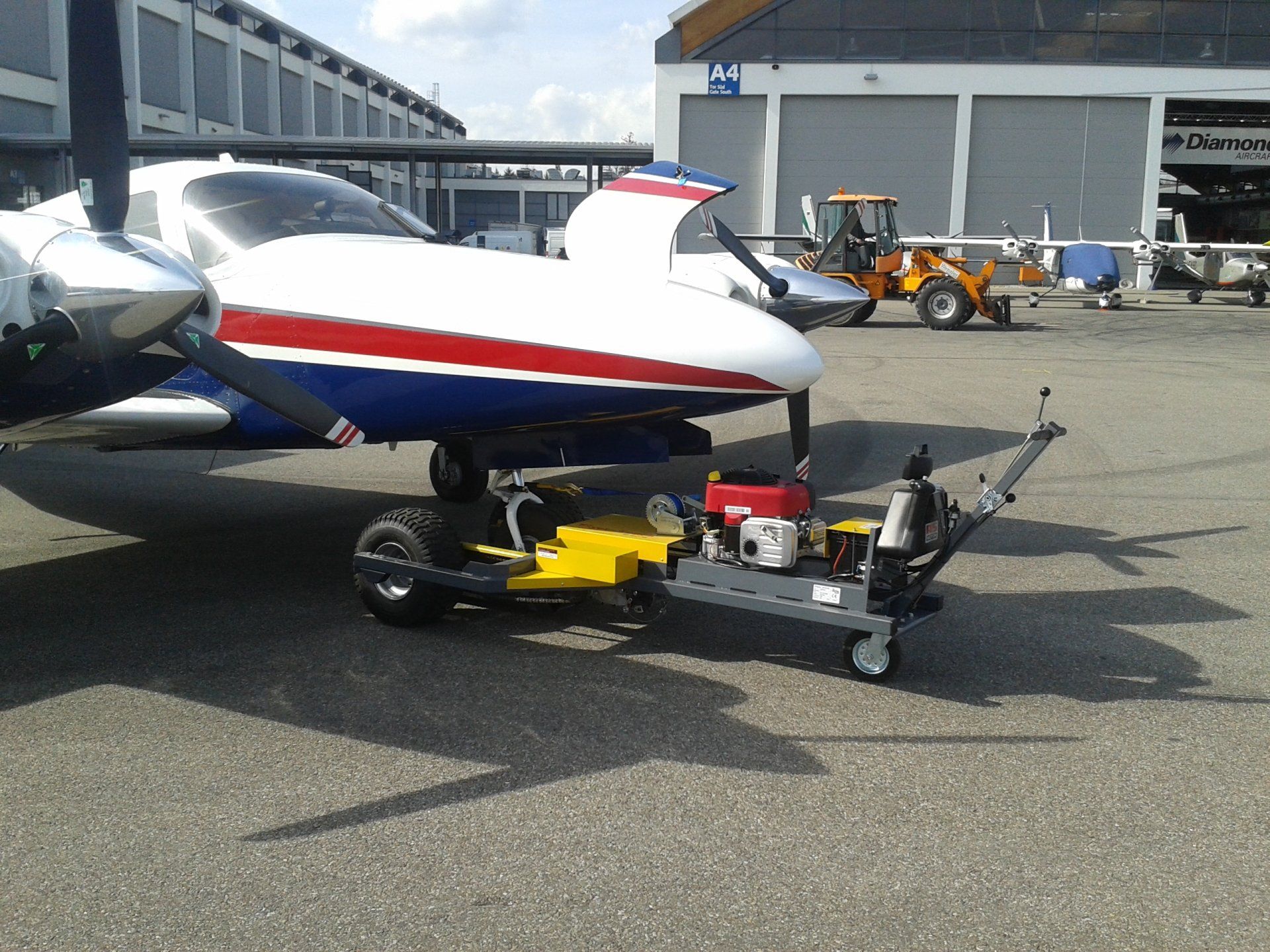

FLT 42 with Piper Seneca

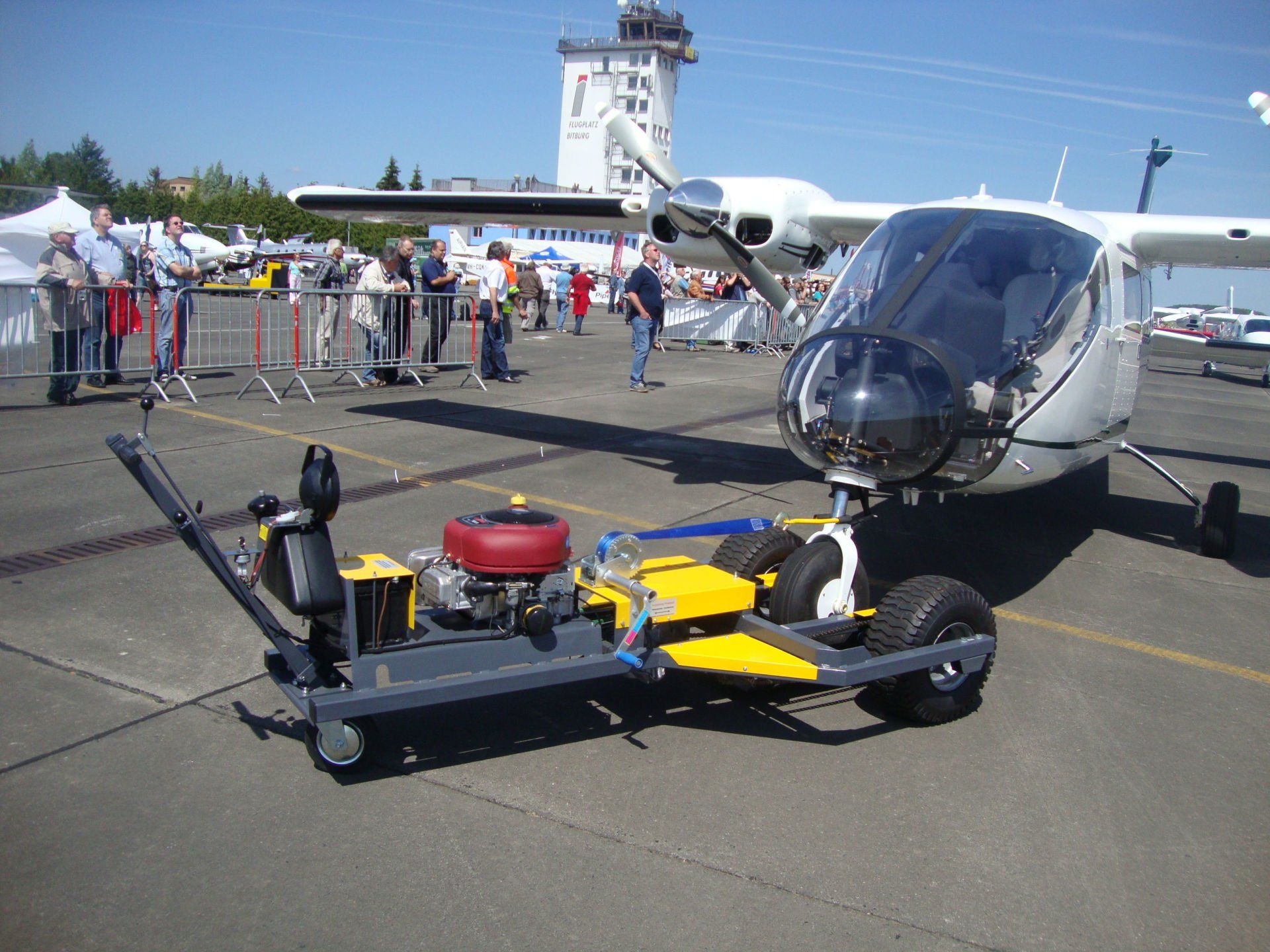

FLT 42 with Vulcanair

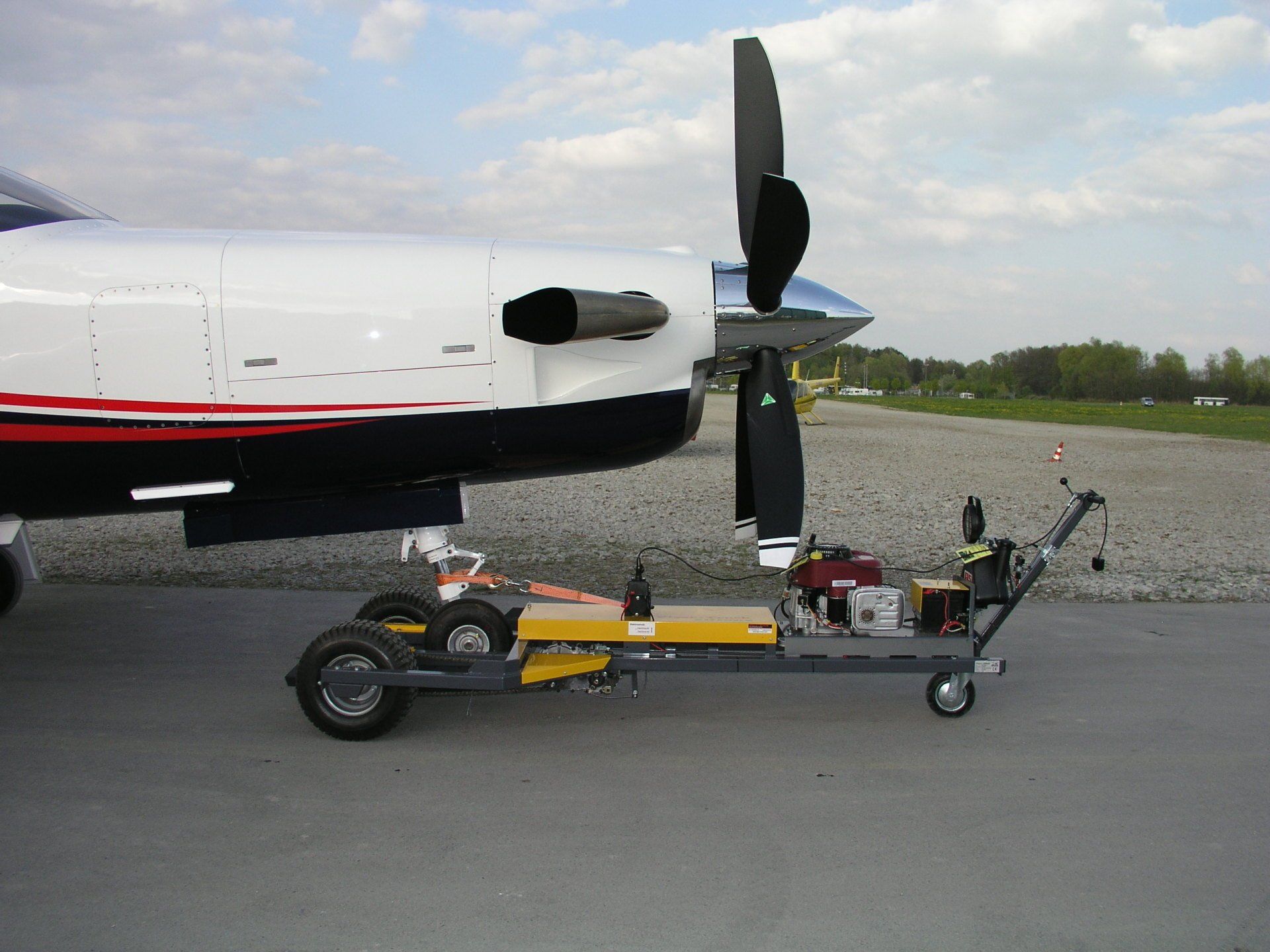

FLT 42 EWXL with TBM850
FLT 42 EW
FLT 42 EW
FLT 42 EW
FLT 42 EW with Beech Baron
FLT 42 EWXL with Phenom 100

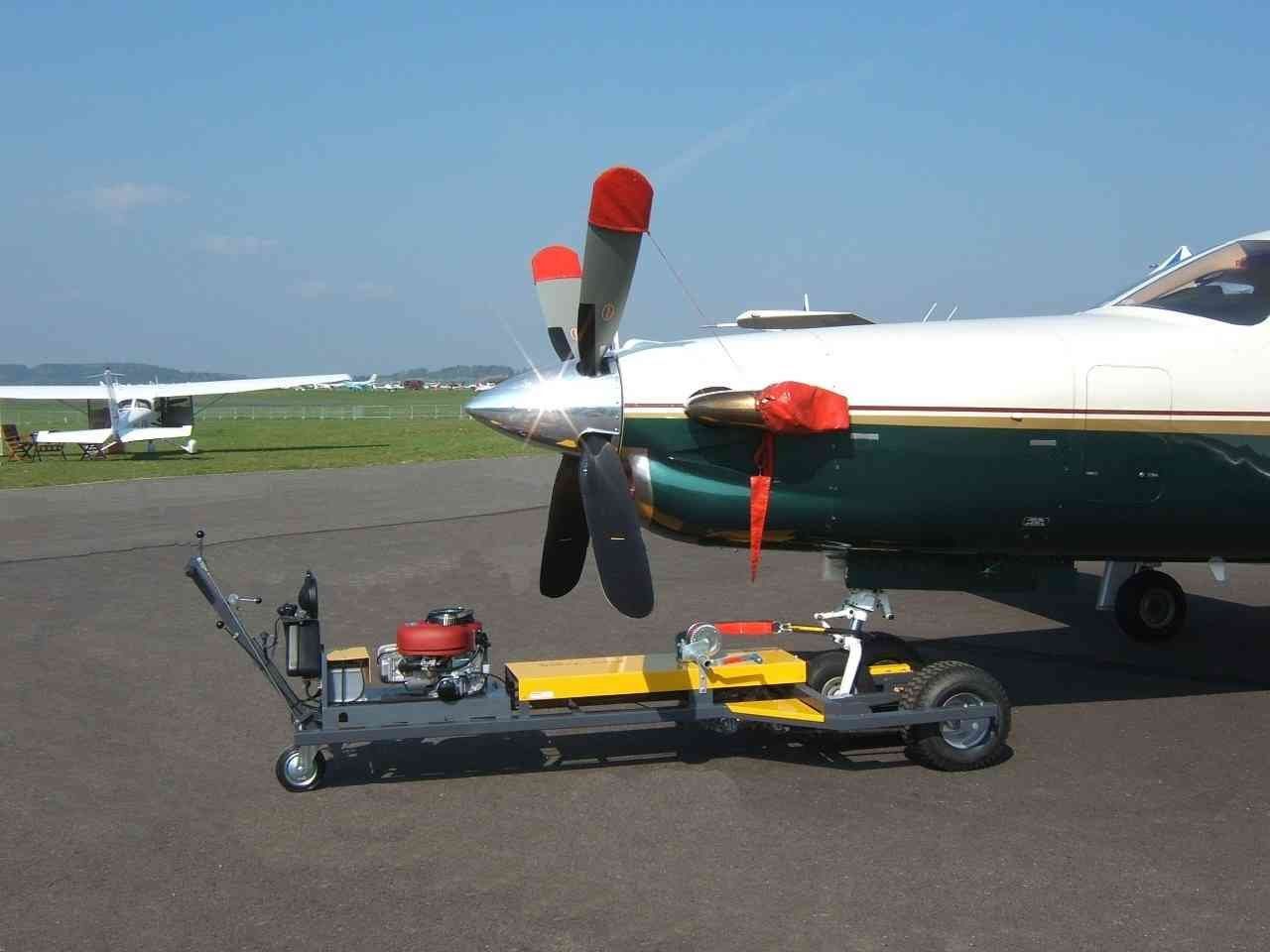

FLT 42 XL with Daher TBM 700
FLT 42 EWXL with Daher TBM 850
with Diamond DA40 or Cirrus SR20/22 adapter
with Diamond DA40 or Cirrus SR20/22 adapter
with Diamond DA40 or Cirrus SR20/22 adapter

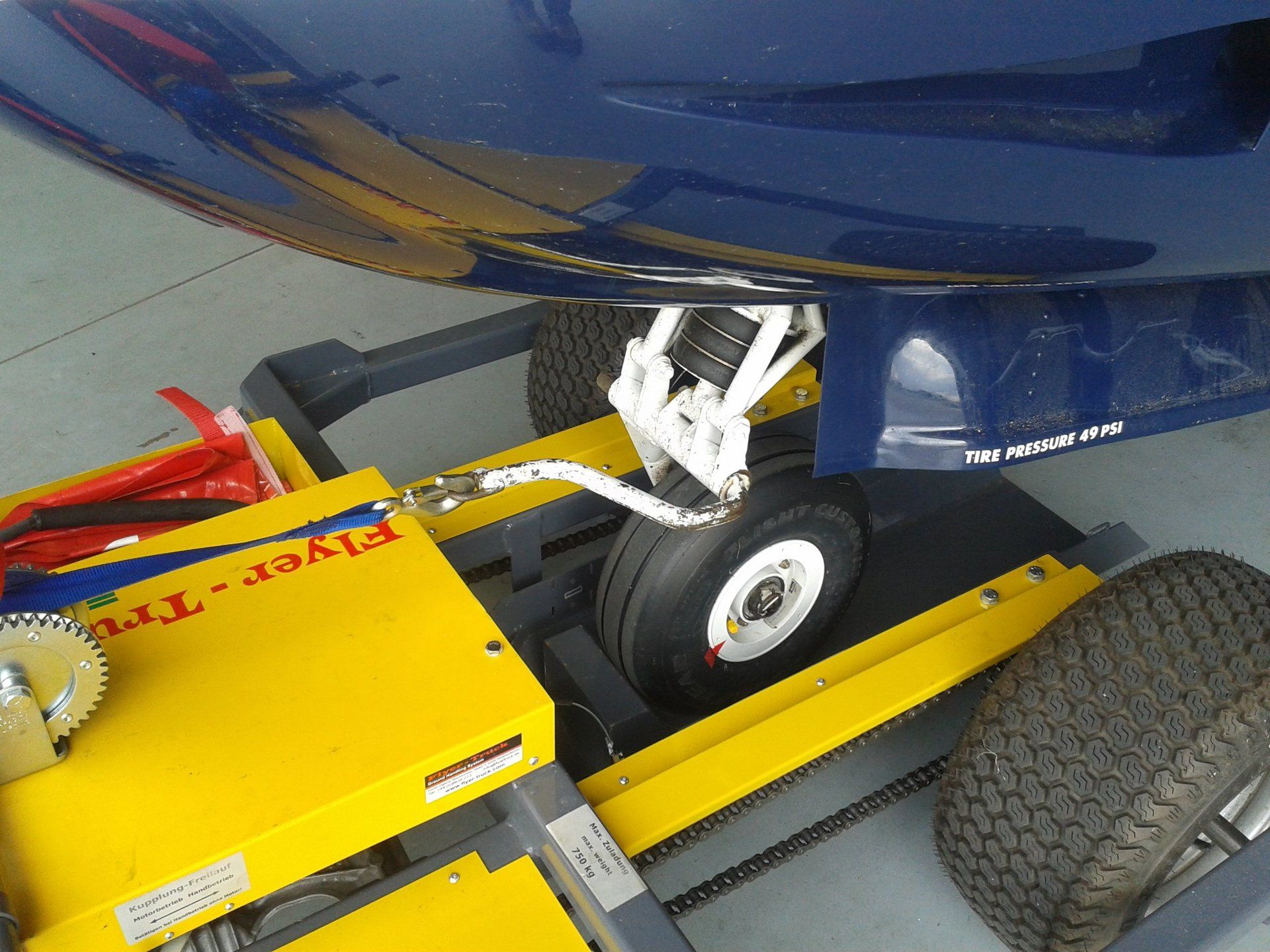

with special Mooney adapter
with wedge for aircraft with wheel fairing

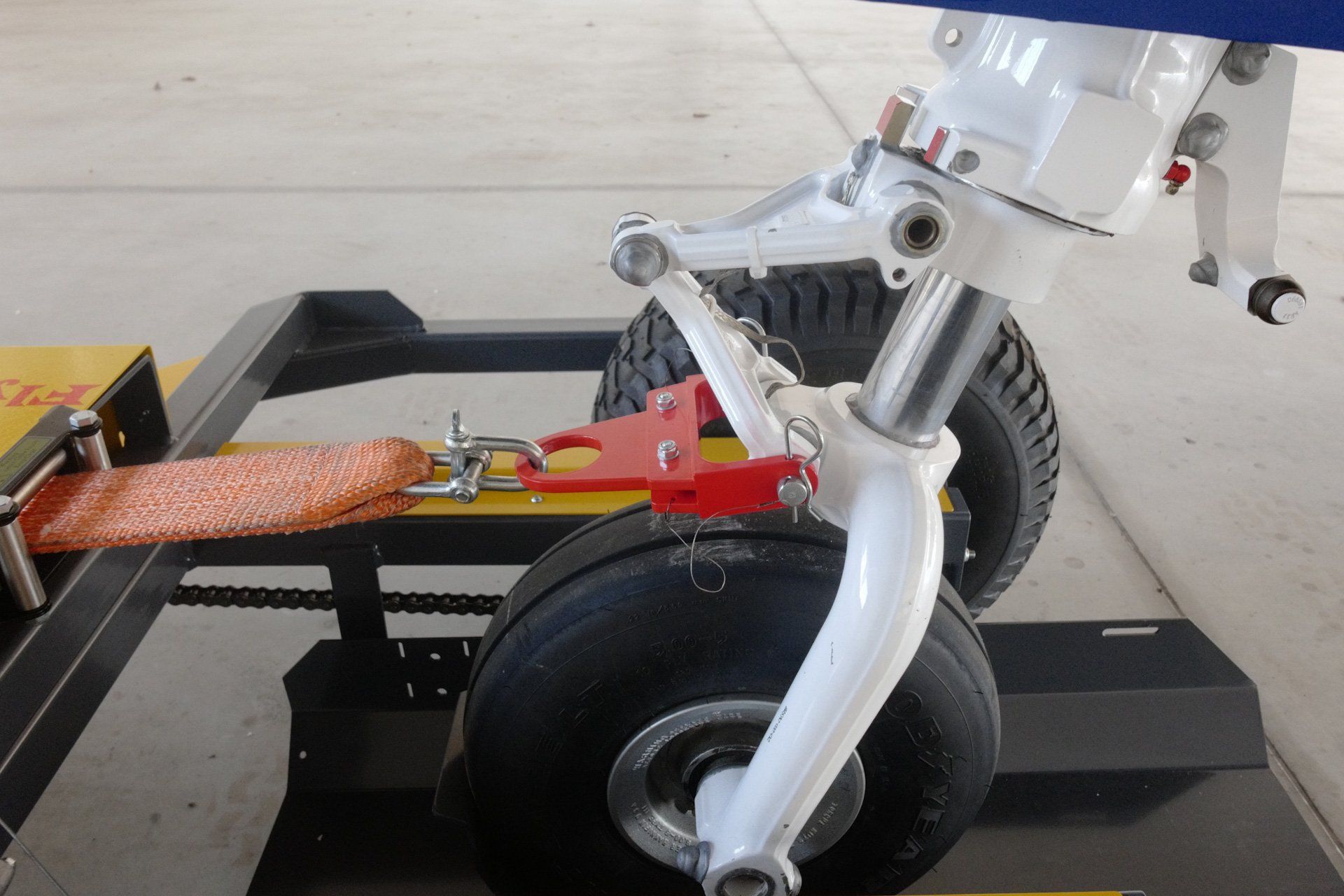

with TBM tool

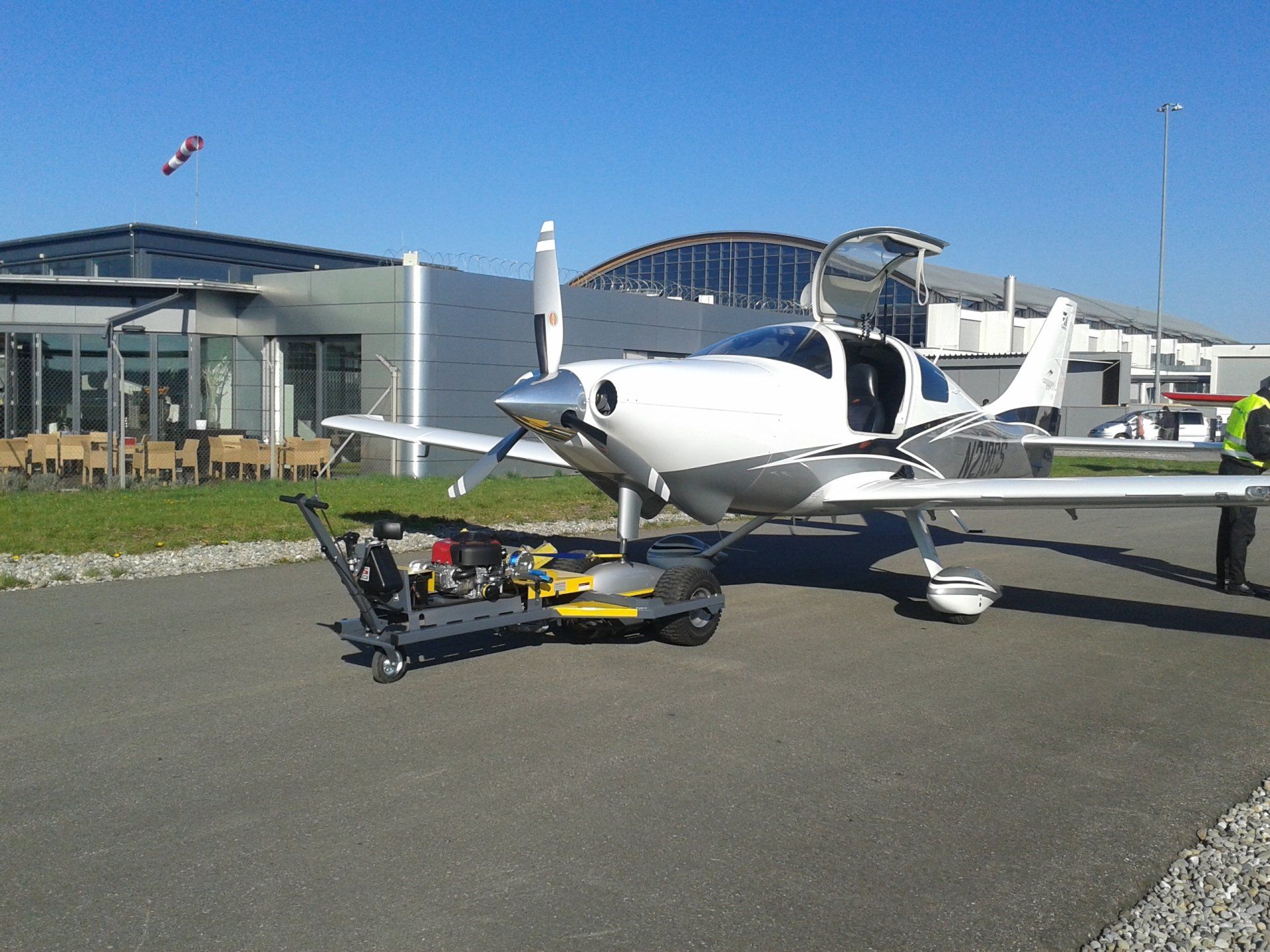

Cessna TTx

Adapted for aircraft types like:

Beech 23, 24, Bonanza 33, 36, Baron 58
Cessna 150, 172, 182, 206, 210, Caravan I, 310, 340, 414, Golden Eagle 421
Cirrus SR20 / 22
Daher TB9, 10, 20/21, 200
Daher TBM 700, 850 , 900 - with electric winch and frame extension
Diamond DA20 / 40, 42, 62
Eclipse 500
Mooney
Piper PA28, 32, 34 Seneca, PA 46
Rockwell Commander 111-114
Vulcanair P68, VR
