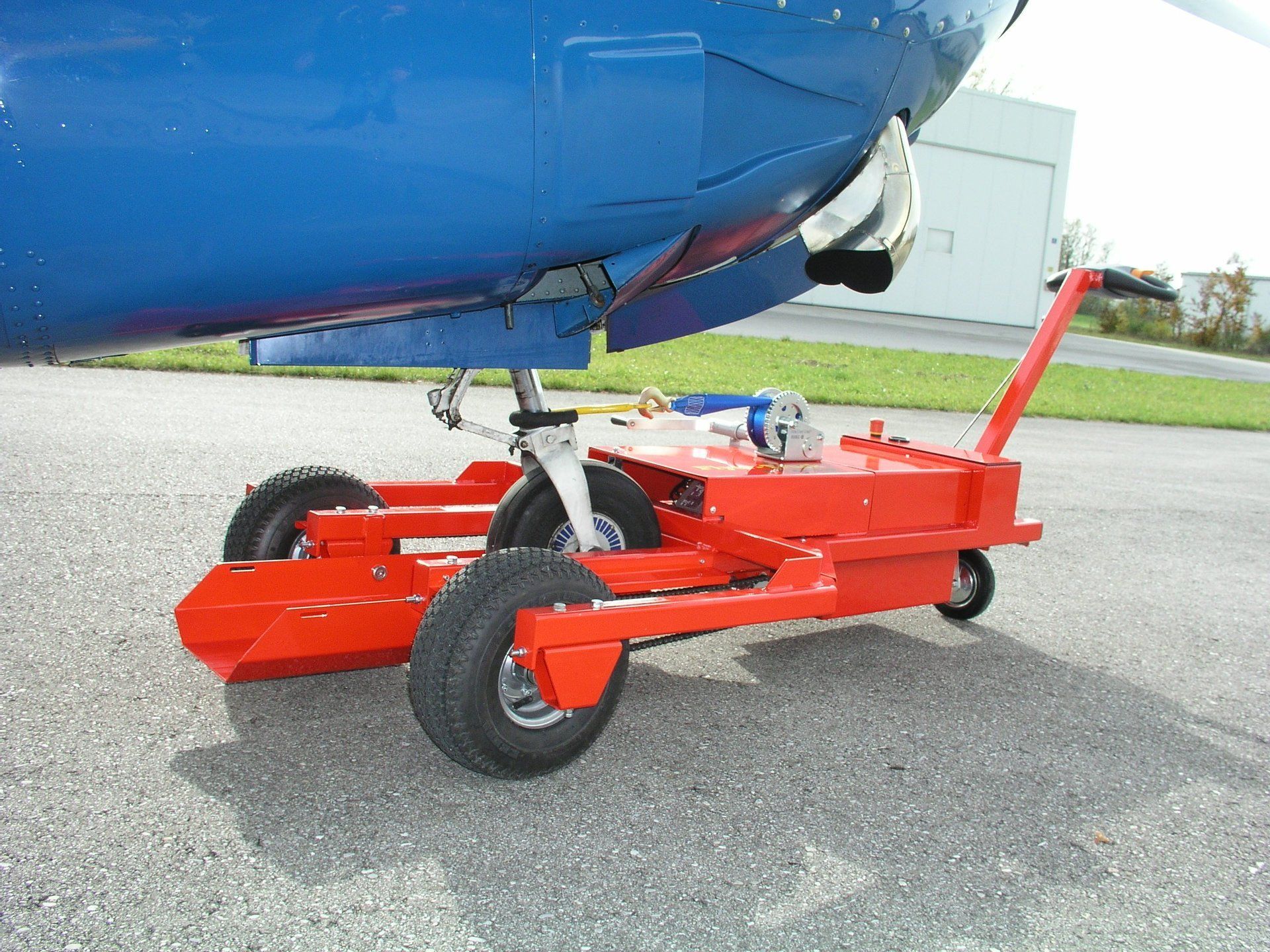

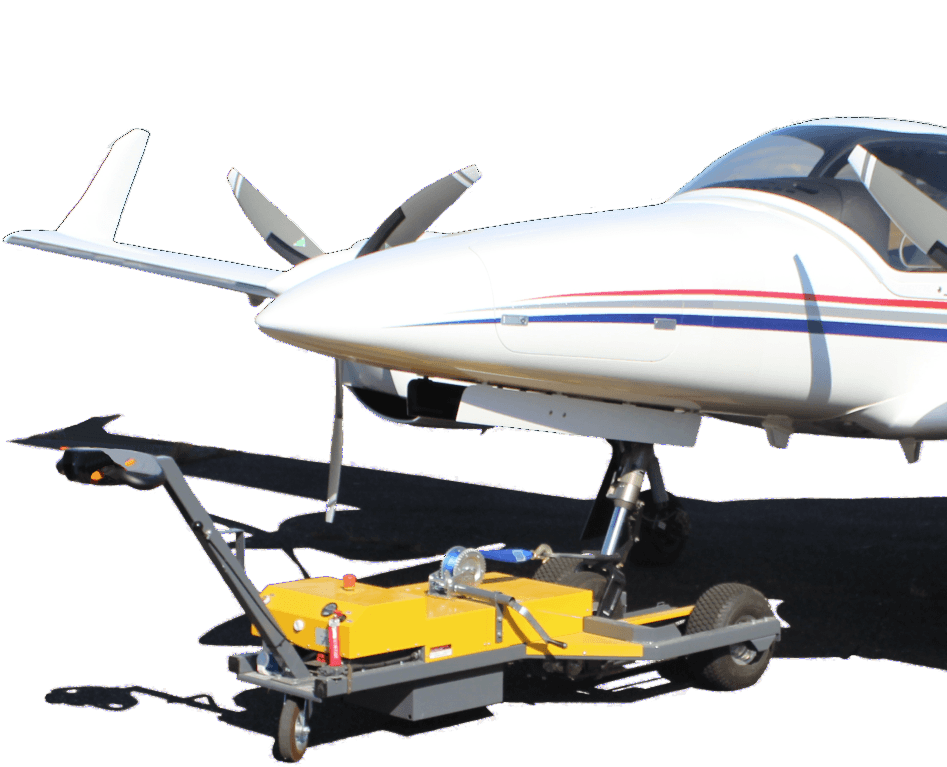

FLT 25 electro
FLT 25 electro
adapted for aircraft and helicopter
up to 2.5 t.
max. take off weight
Overview
Technical Data
drive system
Electric engine AC 24V 1.2 kW
differential axis TX1
pulse contract control
battery
2 x 12V 135 Ah
battery charger
HF charger 230 / 24V 18A with charge level indicator
incl. 230 V adapter cable 1.0 m (charging cable)
incl. 230 V adapter cable 1.0 m (charging cable)
brake
Spring power brake magnetic 16 Nm / 24V
speed
Forward and backward:
approx. 0 - 6 km / h
frames
Loading weight: 300 kg,
up to approx. 2.5 t MTOW
weight empty: 180 kg
dimension: L x W 2.70 x 1.10 m
weight empty: 180 kg
dimension: L x W 2.70 x 1.10 m
steering
Drawbar steering header
Plastic case with driving switches, fast and creep speed, signal horn
Plastic case with driving switches, fast and creep speed, signal horn
landing gear bracket

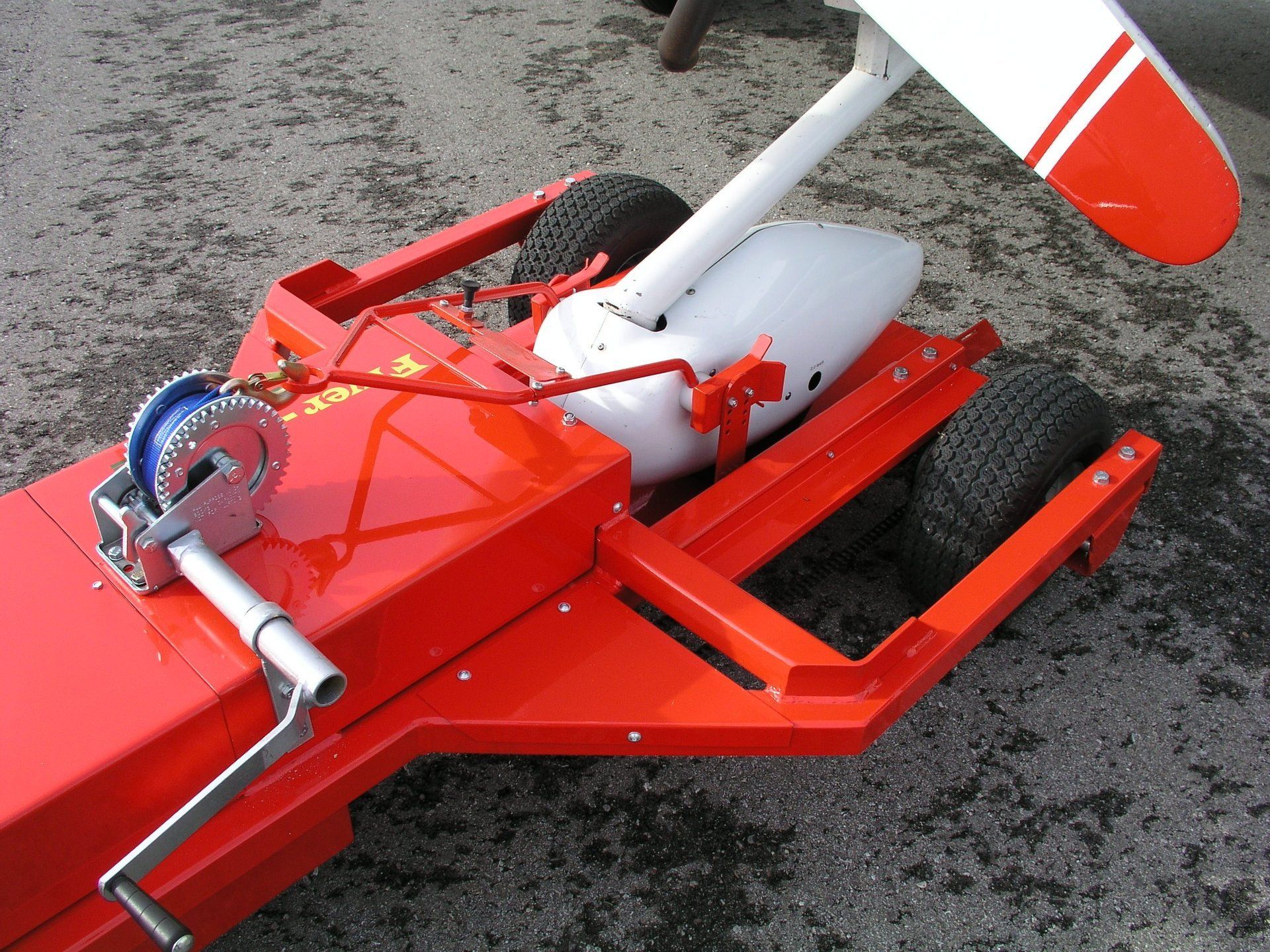

Simple bracket for nose wheel pick up with tilting ramp,

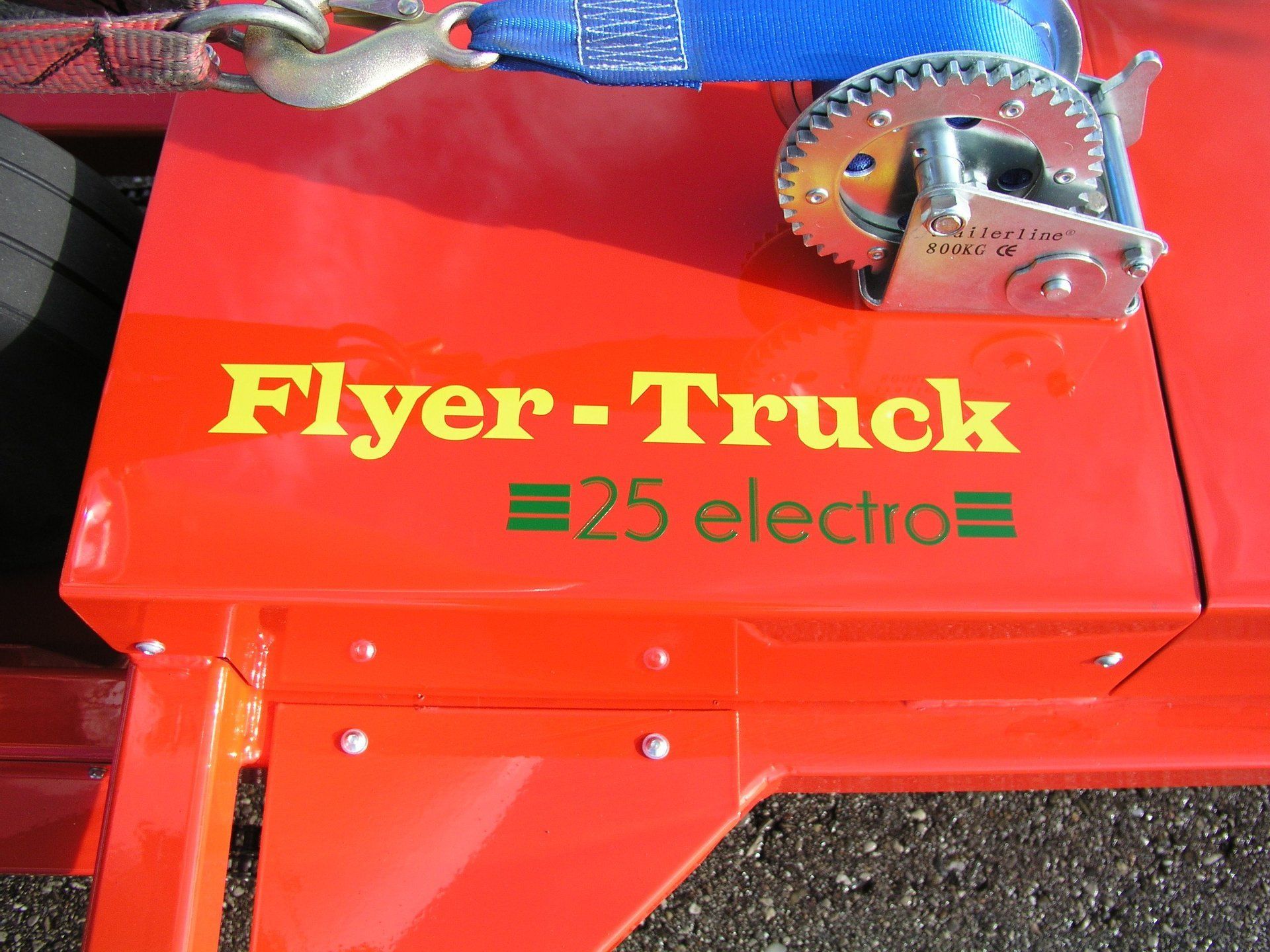

hand winch with flat belt and to pull lever
hand winch with flat belt and to pull lever
tires
15 x 6.00 – 6 Block
Gallery
Adapted for aircraft types like:
Beech 23, 24, Bonanza 33, 36, Baron 58

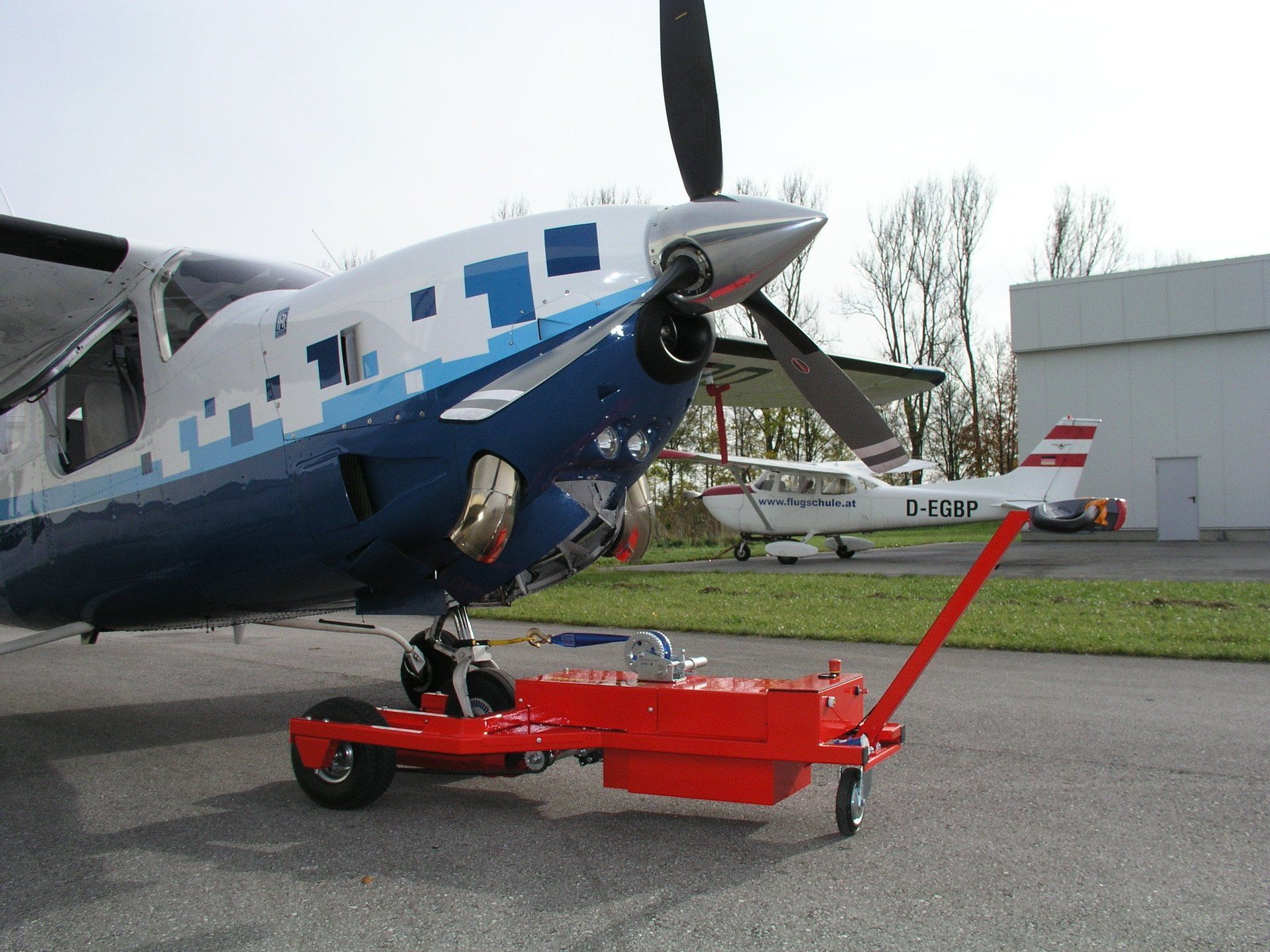

Cessna 150, 172, 182, 206, 210
Cirrus SR20/22
Daher TB9, 10, 20/21, 200

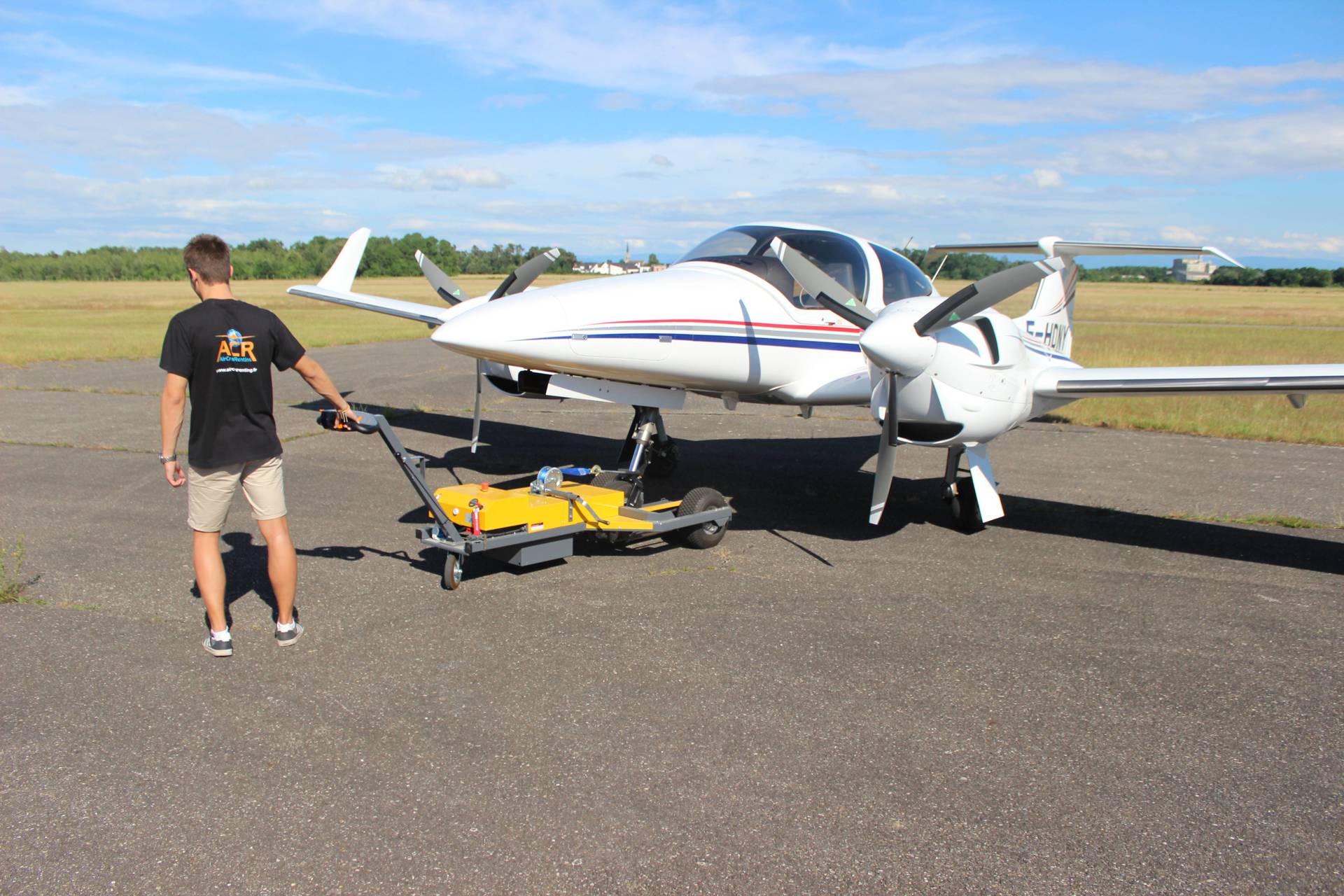

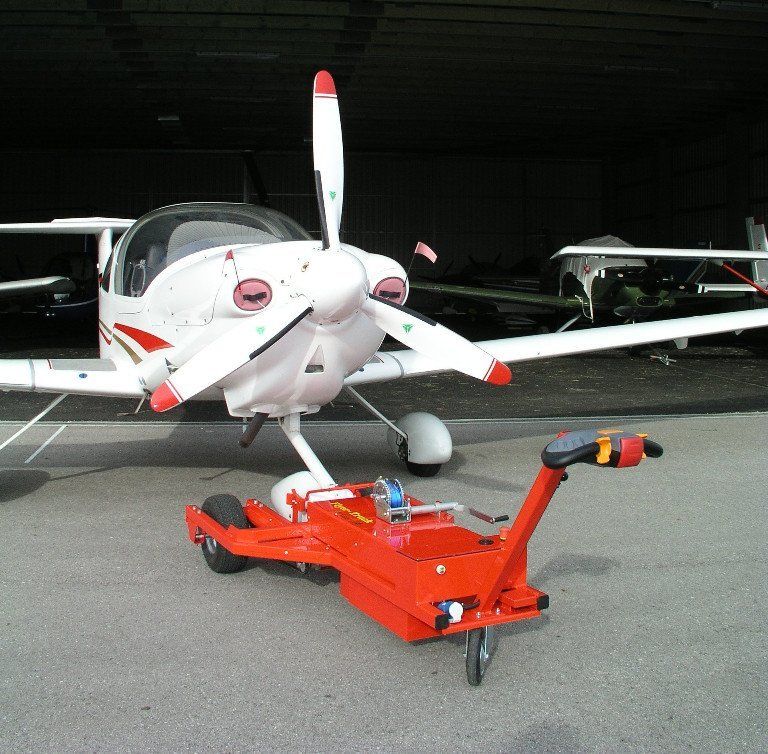

Diamond DA20/40, 42

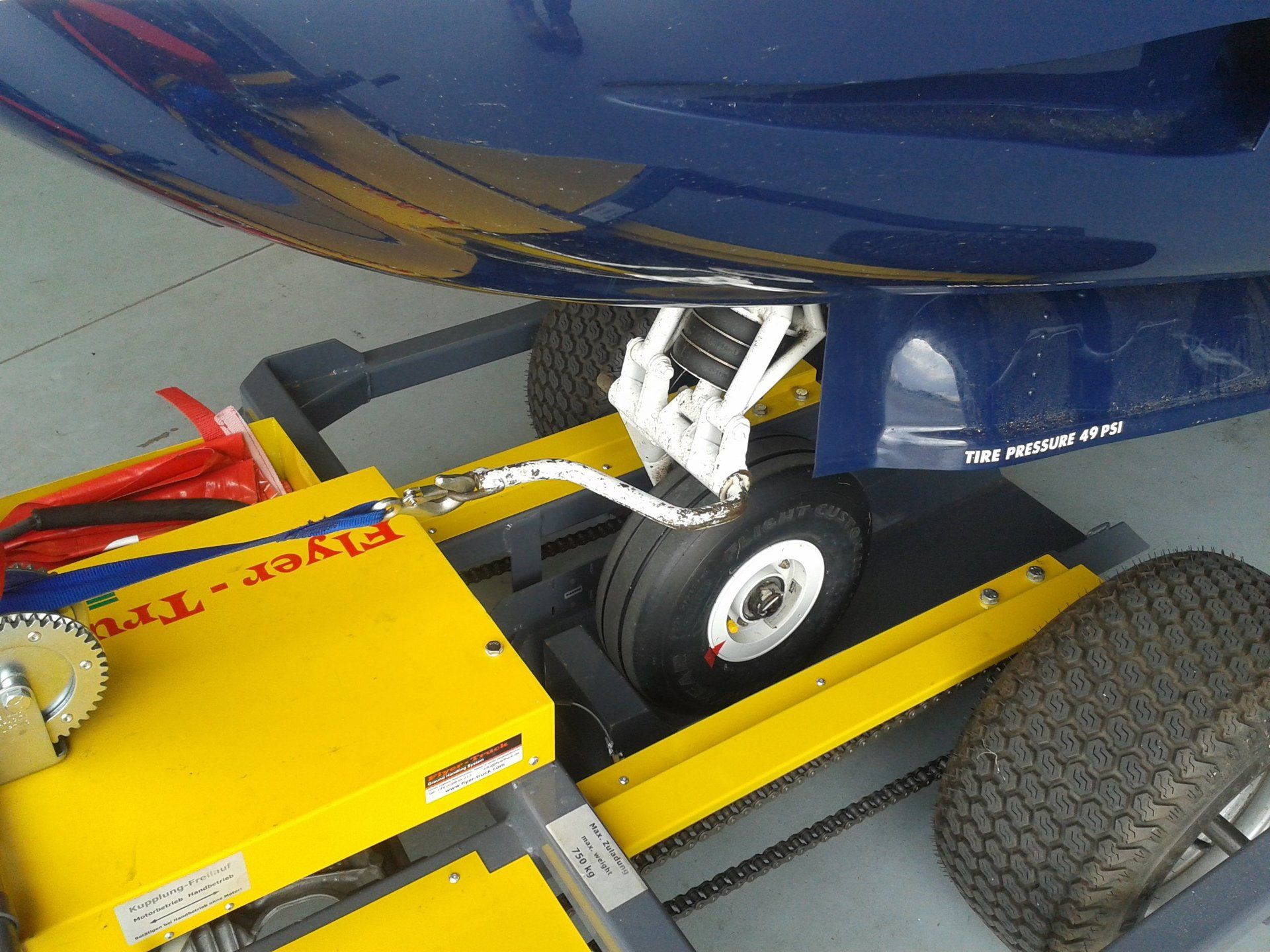

Mooney
Piper PA28, 32, 34 Seneca
Rockwell Commander 111-114
Tecnam P2006T

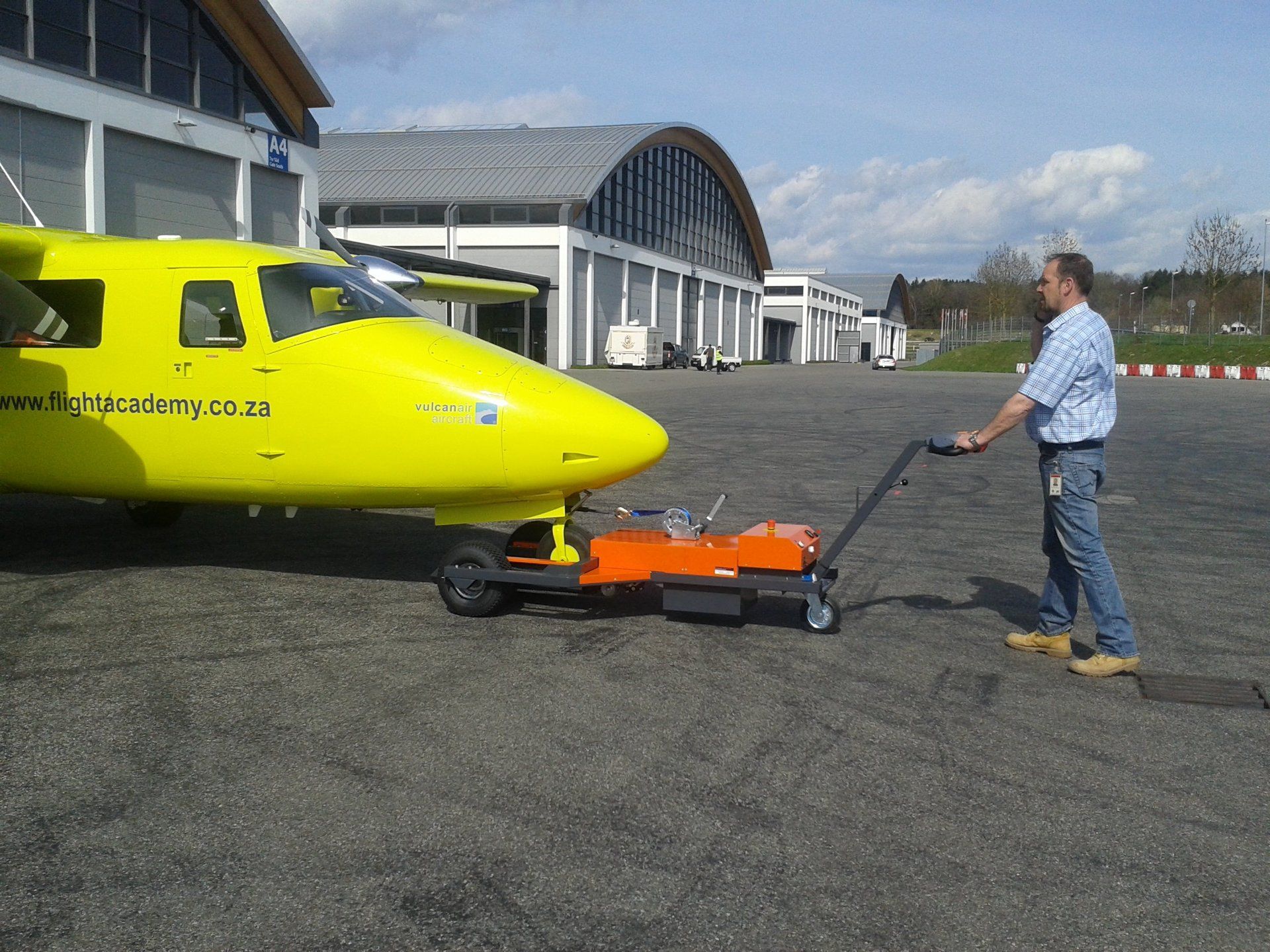

Vulcanair P68, VR
