FLT 200 RC electro
The Flyer-Truck FLT 200 RC electro is an aircraft tug for business jets up to 20.0 tons MTOW. A multi-talent for airplanes with single and double nose wheels. It combines the demand for value stability, easy of use, flexible use without mechanical conversion measures and the highest quality workmanship.

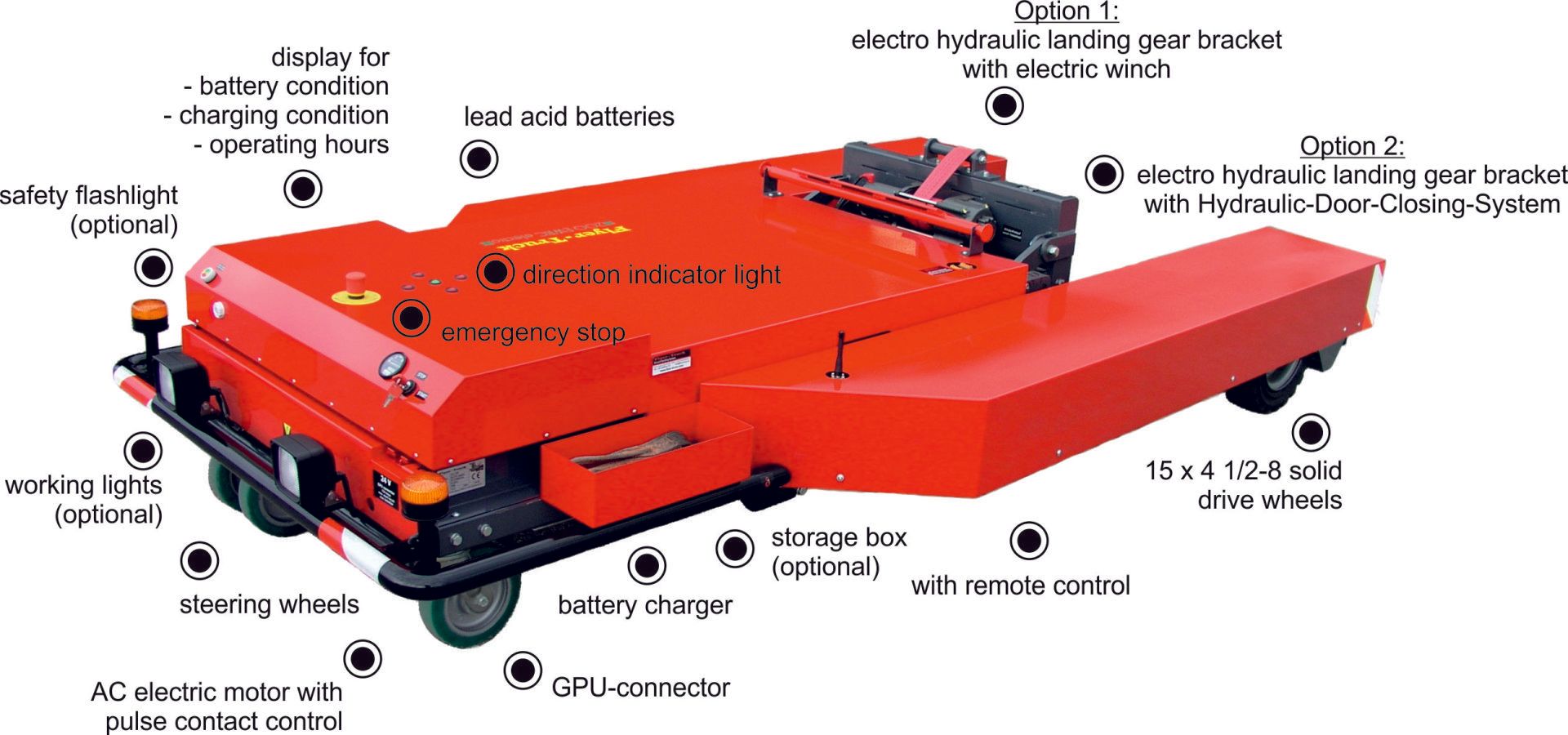

Overview


FLT 200 RC electro

Technical Data


drive system

2 AC drive motors 36V
pulse controls

battery

lead-acid batteries

battery charger

HF charger 230 / 36V 30A with charge level indicator, integrated

brake

Spring power brake magnetic 2 x 12 Nm

speed

Forward and backward:
approx. 0 - 6 km / h
2-steps, regulation via joystick

operating range

about 2 hours depending on the speed and loading

construction

for aircraft up to approx. 20.000 kg,   44.000 lbs
Max. loading: 2.500 kg, 5.500 lbs
Empty weight: 945 kg
dimensions: LxWxH 2.47 x 1.78 x 0.43 m

steering

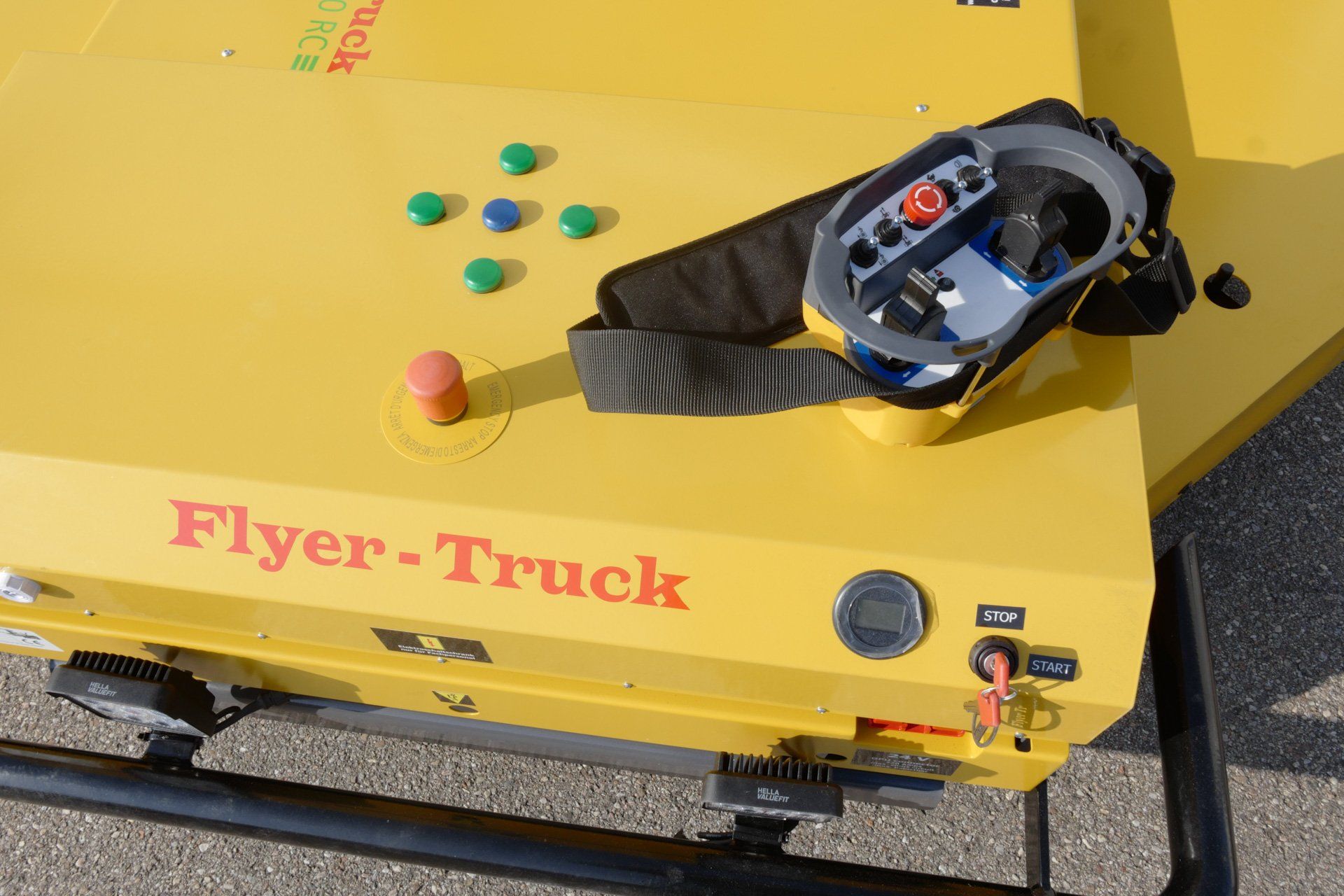

Remote controlled, with 2 finger-joysticks (forward and backward / left and right)
Operator button for the landing gear bracket, fast and creep speed, light, safety operating

landing gear bracket

Variant 1:

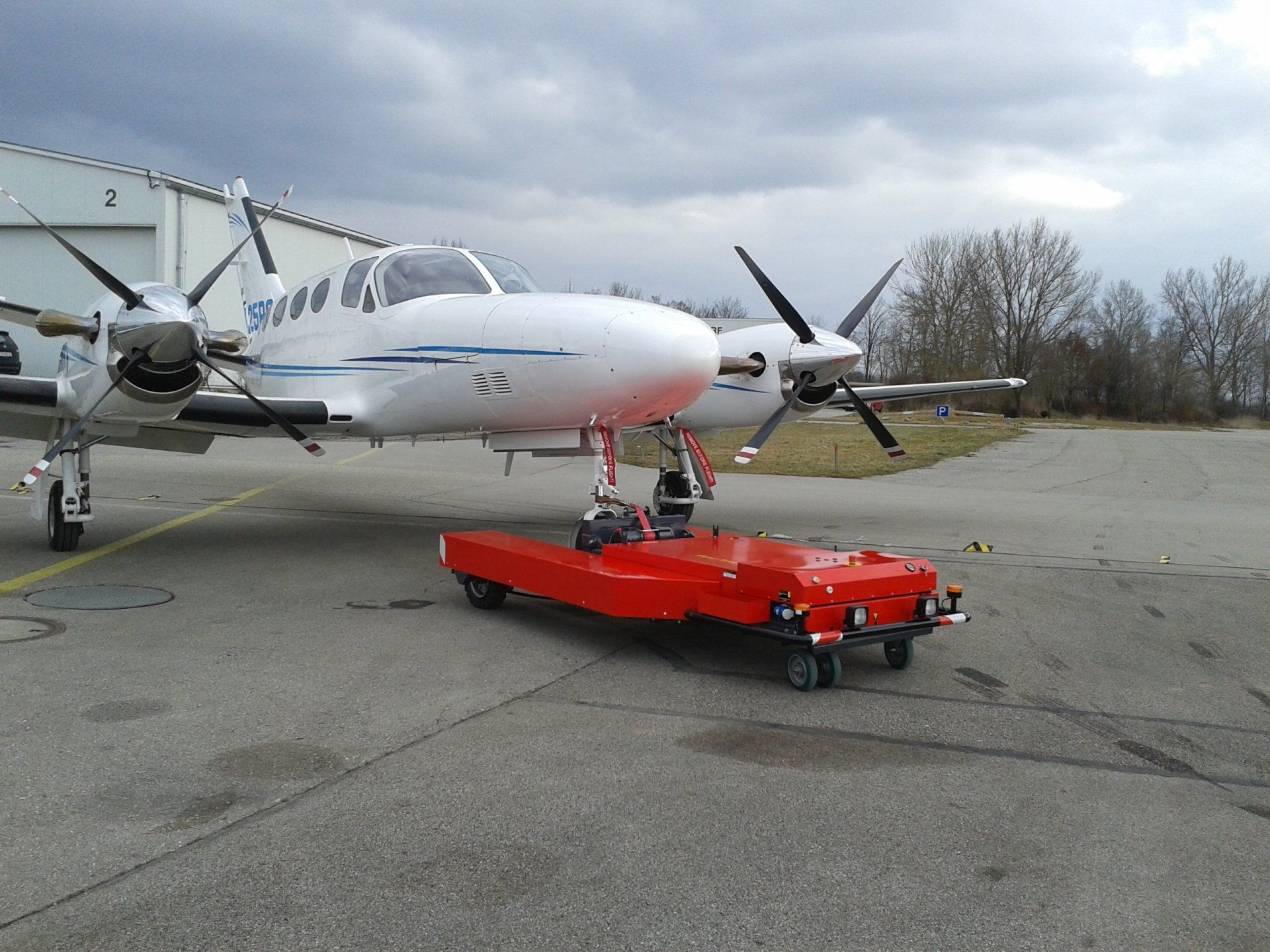

Electric hydraulic landing gear bracket EWEH
- with belt winch
- mechanical safety pin

Variant 2:

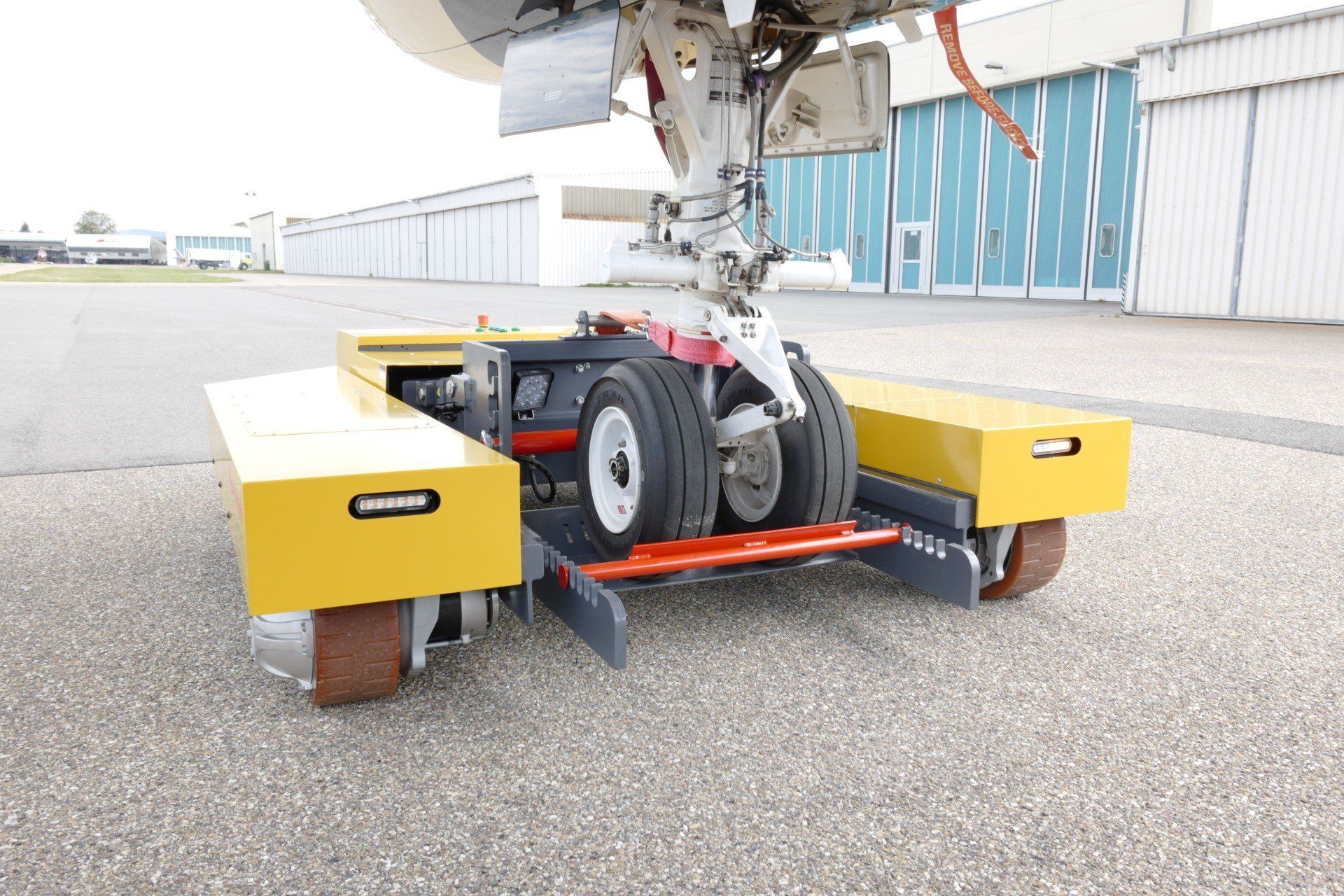

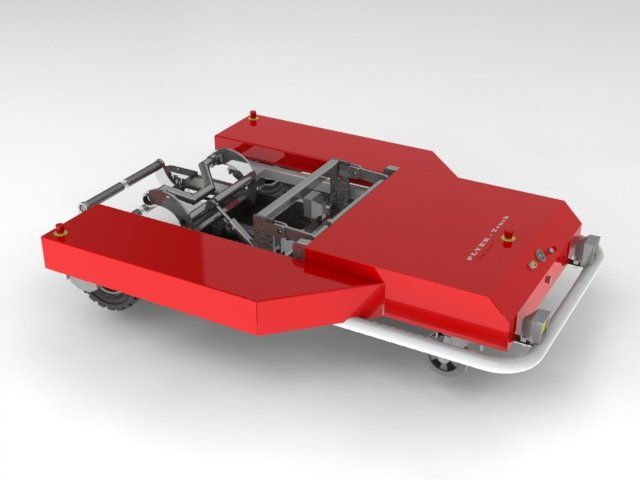

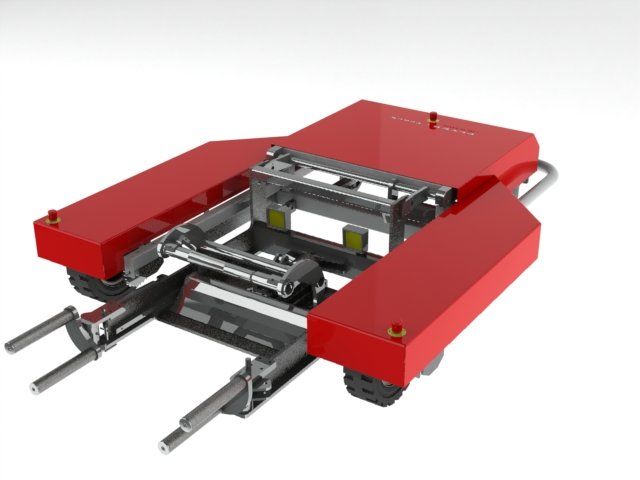

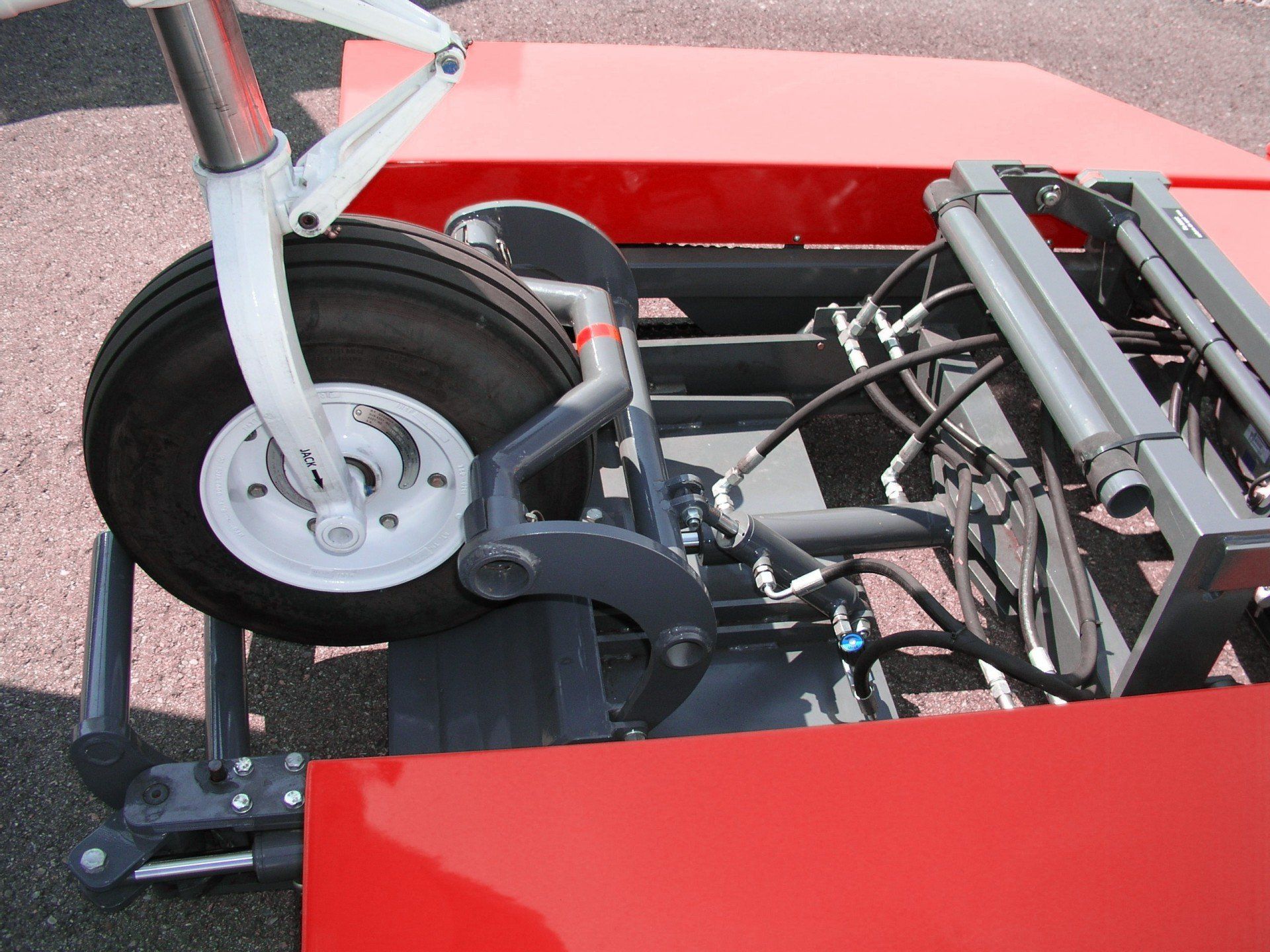

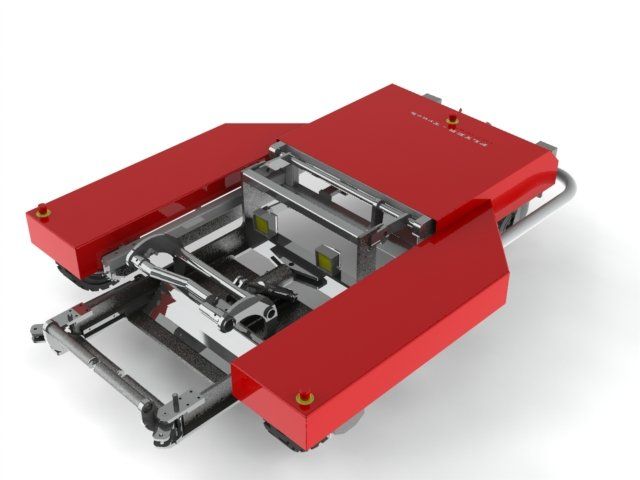

Electric hydraulic landing gear bracket HDCS:
- electric-hydraulic guided lifting and holding hydraulic
- with door opening and closing system
- ramp for different wheel diameter
- wheel hold system for safety anti output
- safety system anti uncontrolled opening of the doors

tires

2 pieces drive wheels, solid rubber, heavy duty
2 steering wheels, heavy duty

lighting / safety device

- 2 emergency stop
- 4 working lights
- warning light / flash lights yellow
- driving way lights

Gallery


Adapted for aircraft types like:


Beechcraft
Cessna

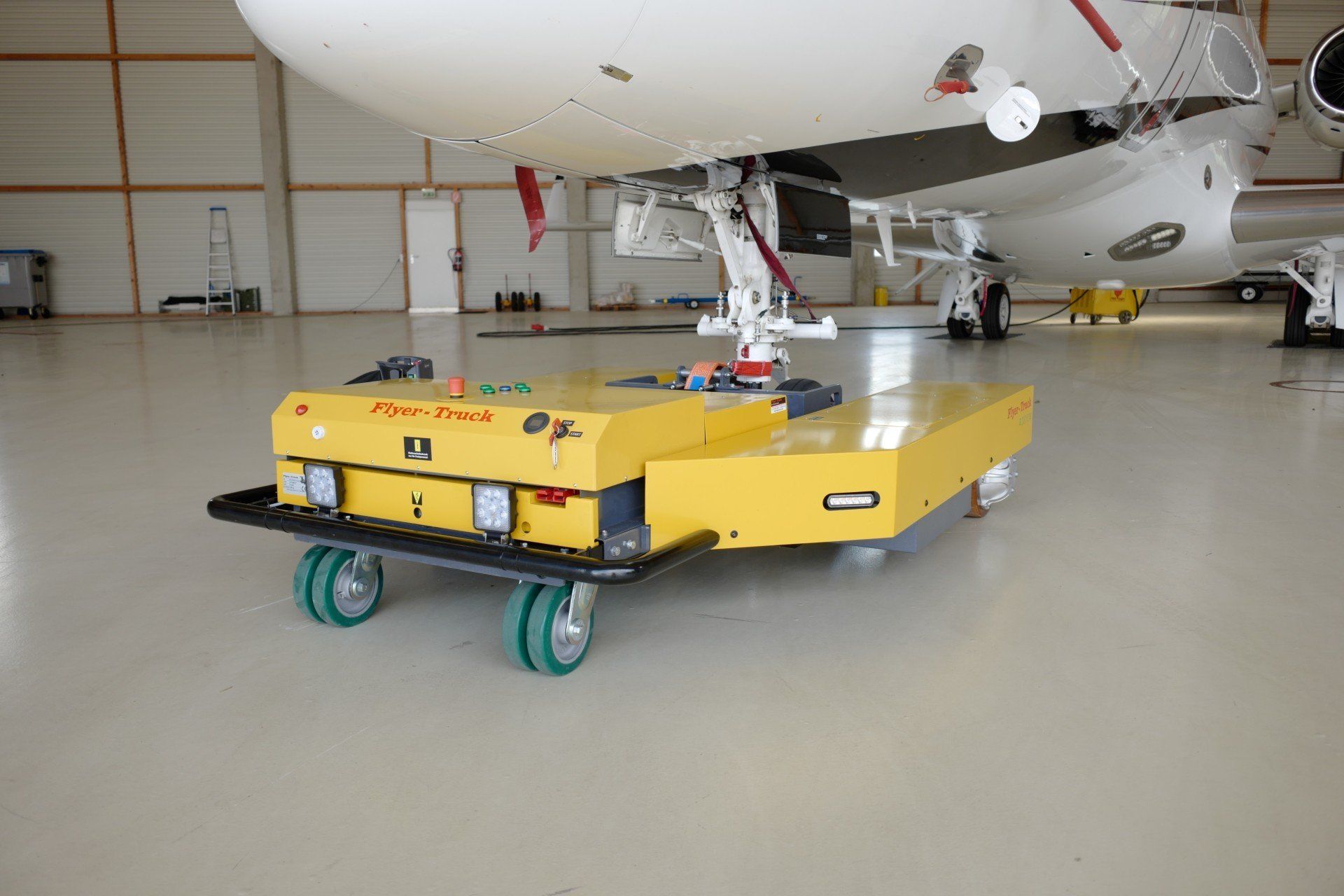

Challenger
Embraer
Falcon
Gulfstream
Hawker
