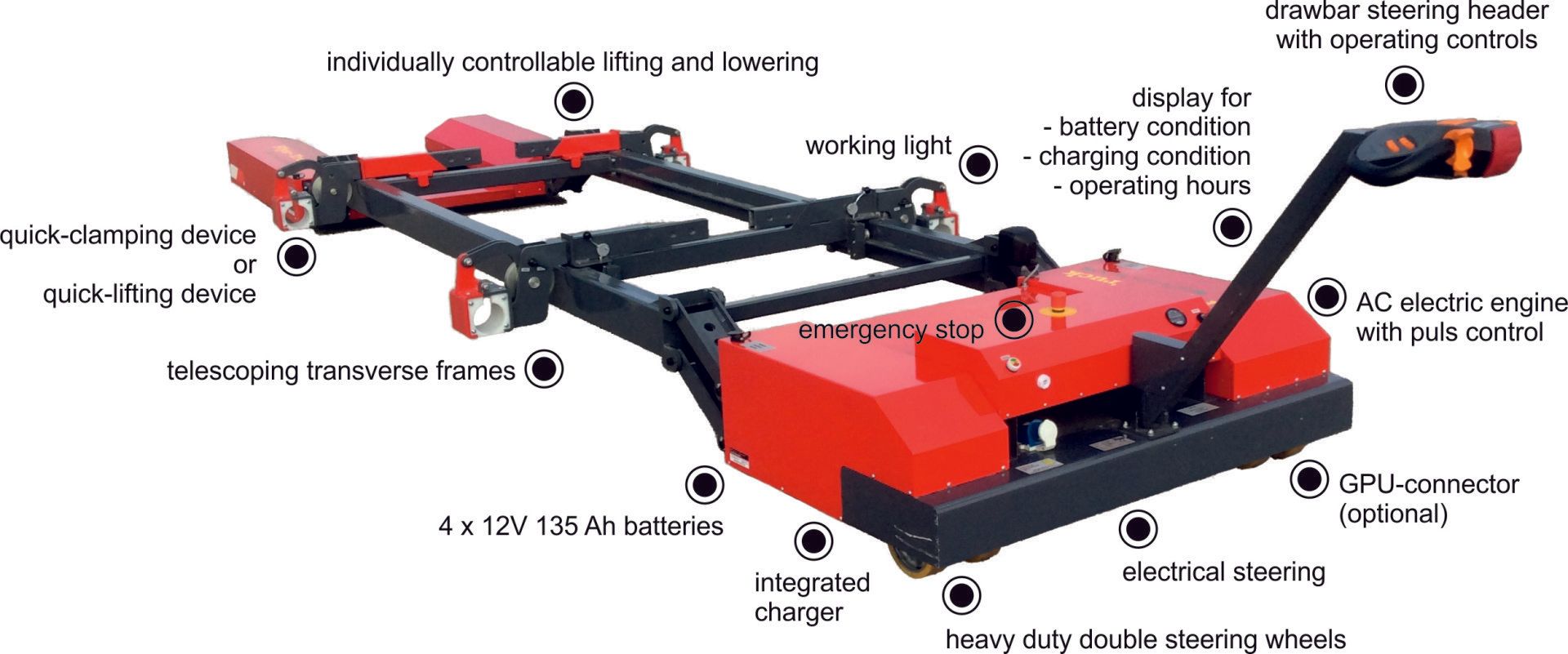

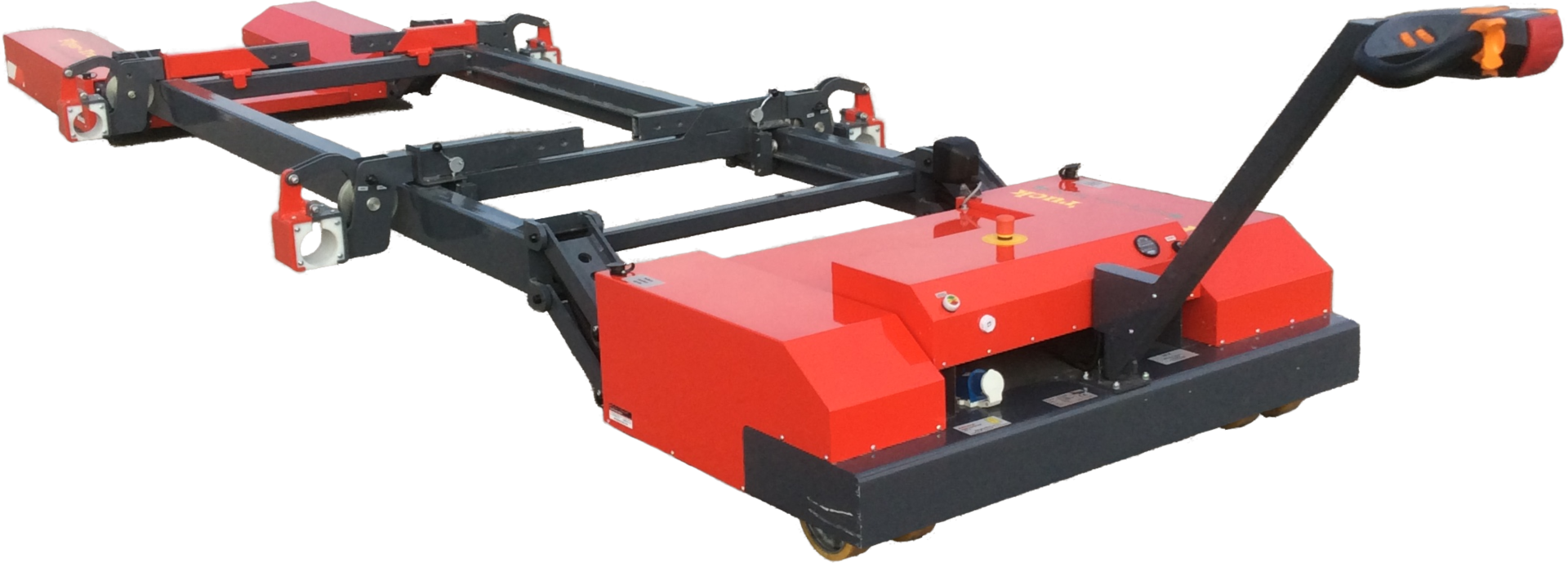

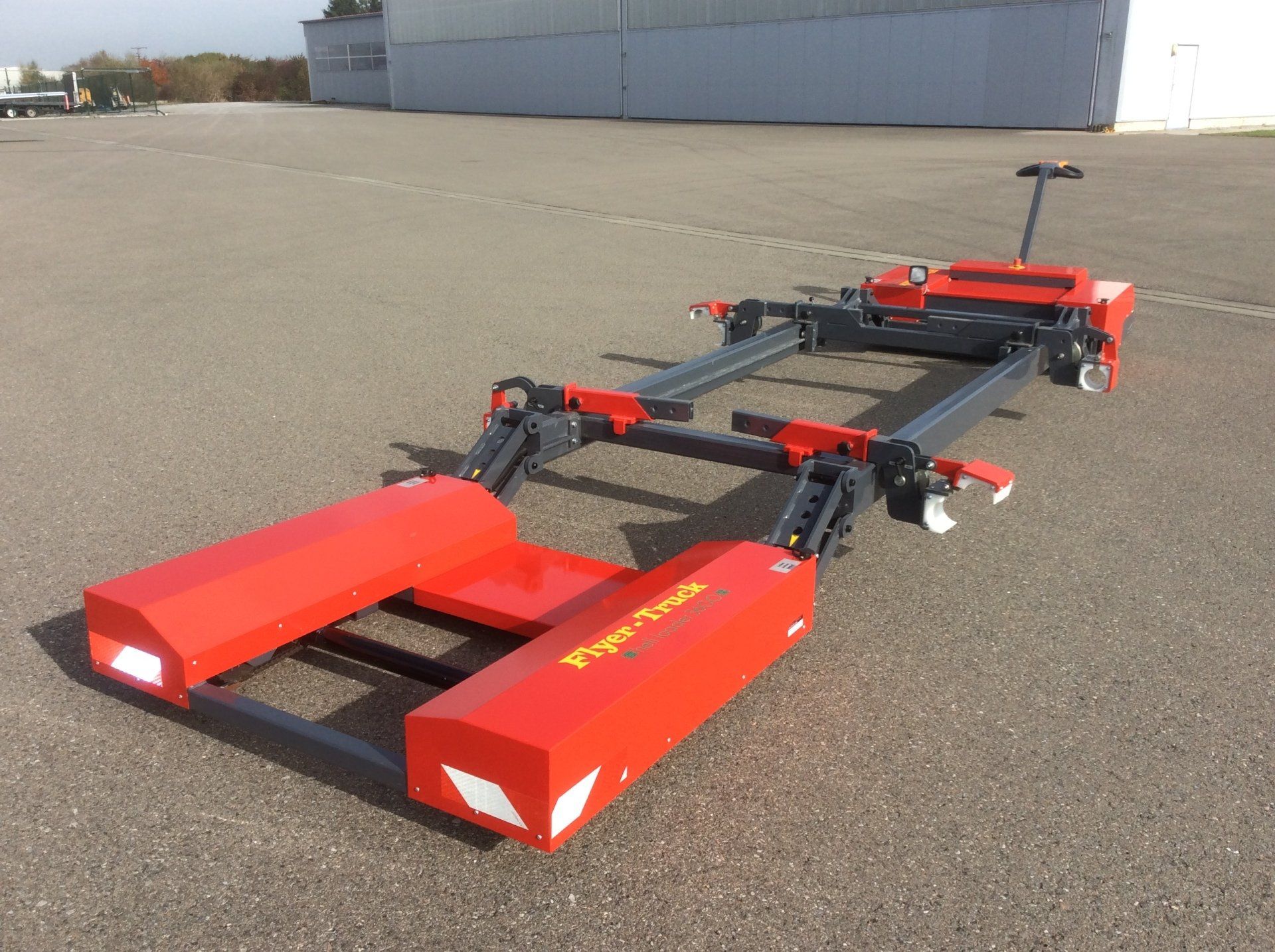

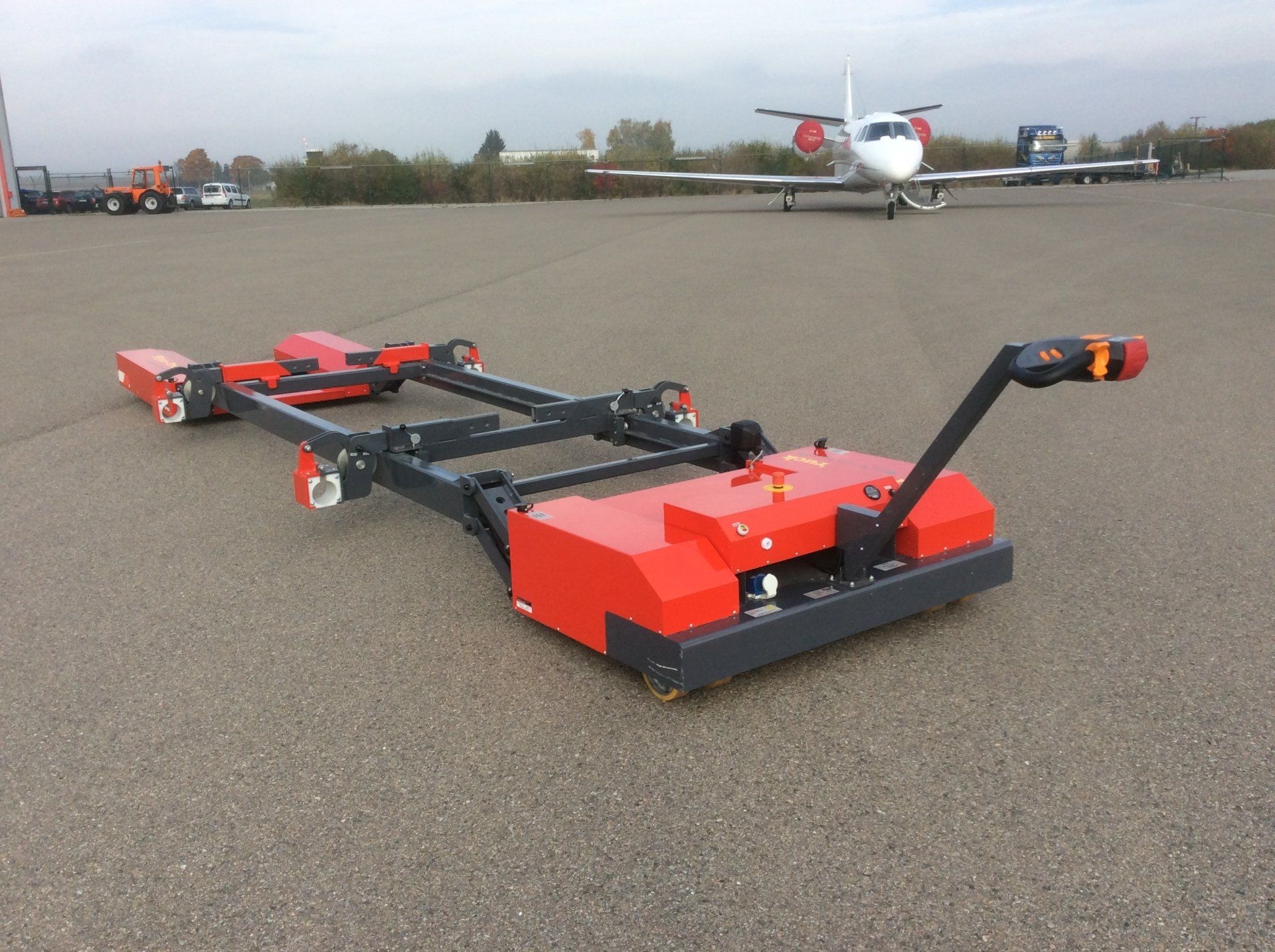

FLT Heli loader 3600
FLT Heli loader 3600
adapted for helicopter with skid
up to 4.5 t.
max. take off weight
for example:

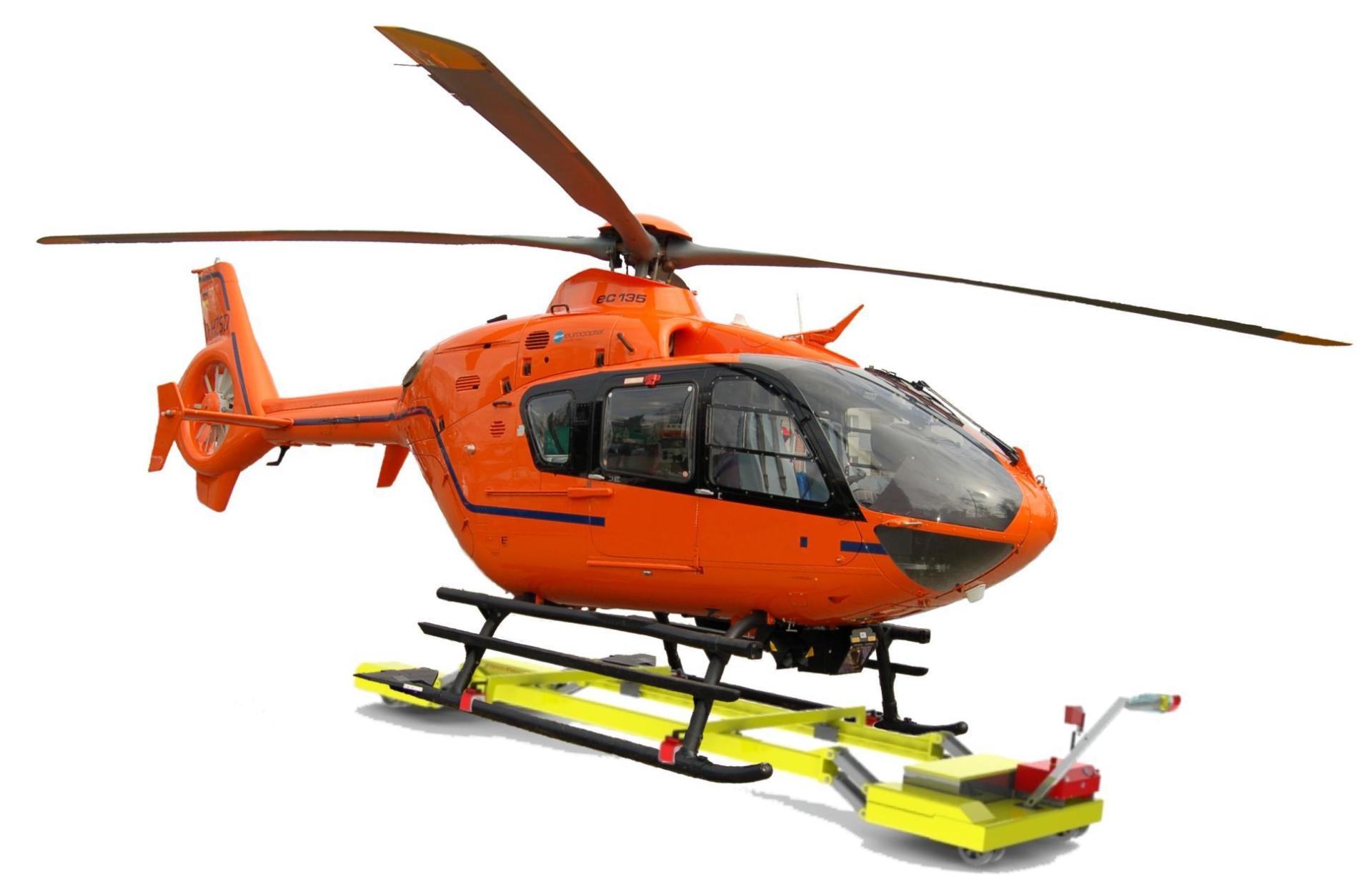

Eurocopter/Airbus AS350, EC120, EC130, EC135, EC145, BK117, H135, H145
Bell B206B, B206L, B407
Agusta A119
for example:
Eurocopter/Airbus AS350, EC120, EC130, EC135, EC145, BK117, H135, H145
Bell B206B, B206L, B407
Agusta A119
Overview
Technical Data
drive system
Electric engine with differential axis, 24V 1.2 kW
Two drive wheels, high traction because the center of weight is introduced near of the drive axle
pulse control
Two drive wheels, high traction because the center of weight is introduced near of the drive axle
pulse control
battery
4 x 12 V 135 AH lead-acid battery
battery charger
Integrated HF charger 230/24V 18A with charge level indicator and battery sustainment function
brake
Spring power brake magnetic 16 Nm/24V
speed
Forward and backward:
approx. 0 - 6 km / h
frames
For helicopter till approx. 4.500 kg, 8.000 lbs
dimensions: L x W 5.99 mx 1.36 m
dimensions: L x W 5.99 mx 1.36 m
steering
Mechanical steering:
Heavy duty double joint wheels,
single load till 2000 kg, 360° rotatable.
Steering over a steering handle
Heavy duty double joint wheels,
single load till 2000 kg, 360° rotatable.
Steering over a steering handle
Helicopter adapter /

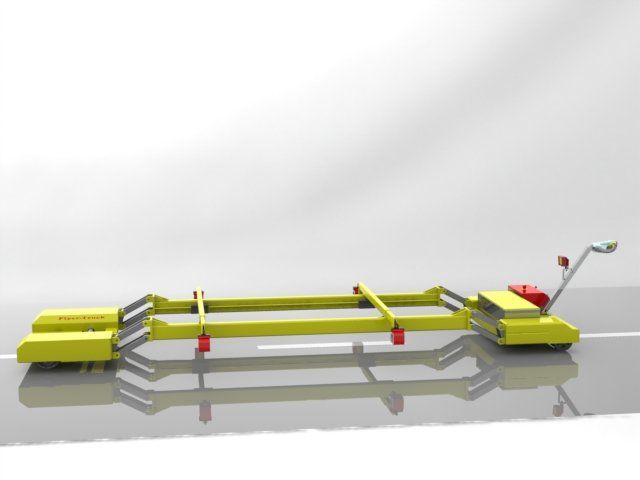

hydraulically lifting system
Parallel mounting frame with four hydraulic cylinders.
Level compensation through individually controllable lifting and lowering for a need-based position of the helicopter.
Side stability through continuous and telescoping transverse frames, screenless linear adjustment.

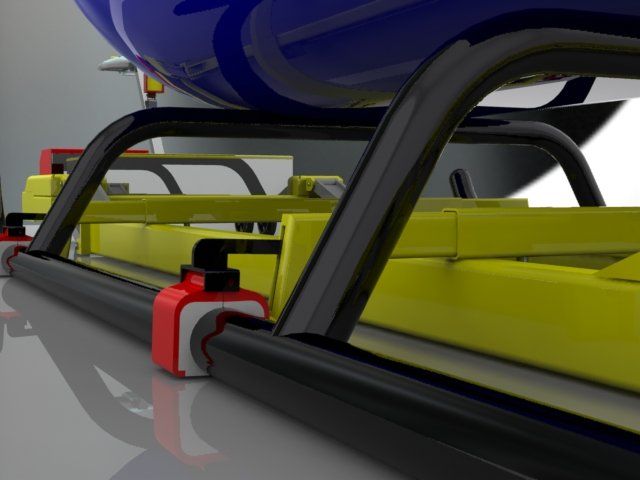

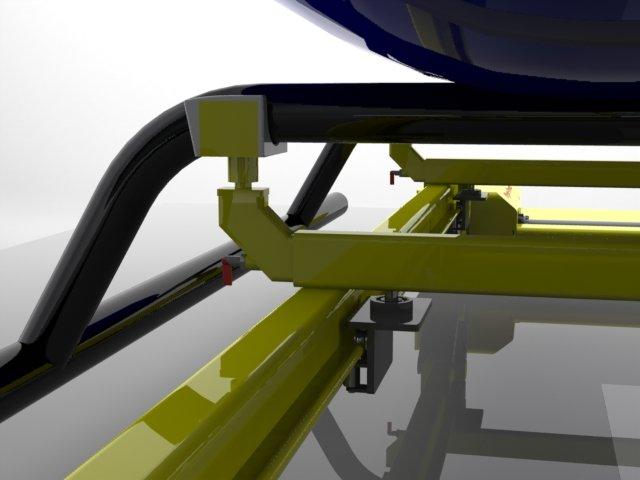

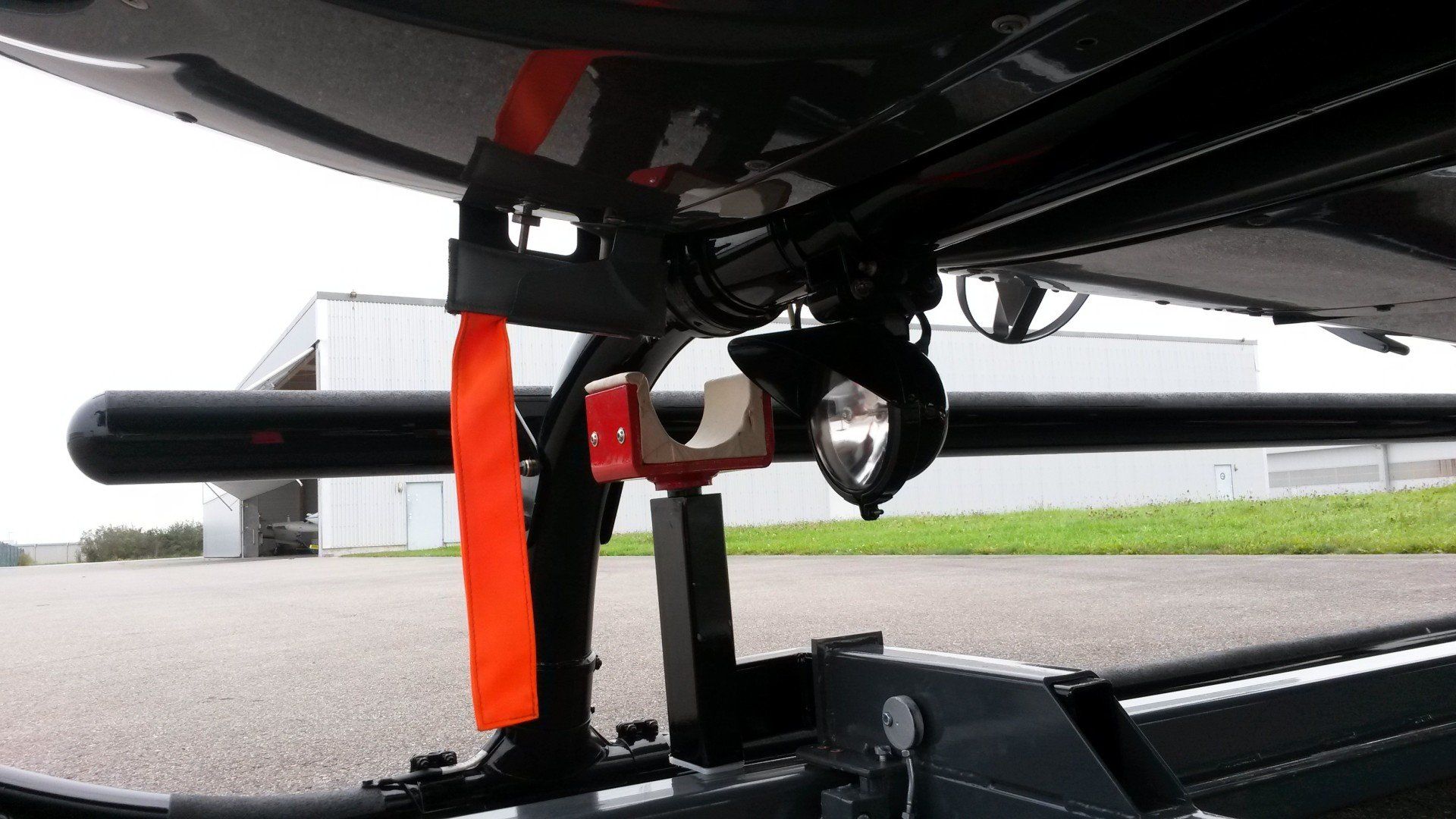

Universally adjustable transverse frames and adapter for helicopter docking. Freely adjustable, rolls guided and quick-clamping or quick-lifting device. Skids guide with plastic adapter
Level compensation through individually controllable lifting and lowering for a need-based position of the helicopter.
Side stability through continuous and telescoping transverse frames, screenless linear adjustment.
Universally adjustable transverse frames and adapter for helicopter docking. Freely adjustable, rolls guided and quick-clamping or quick-lifting device. Skids guide with plastic adapter
