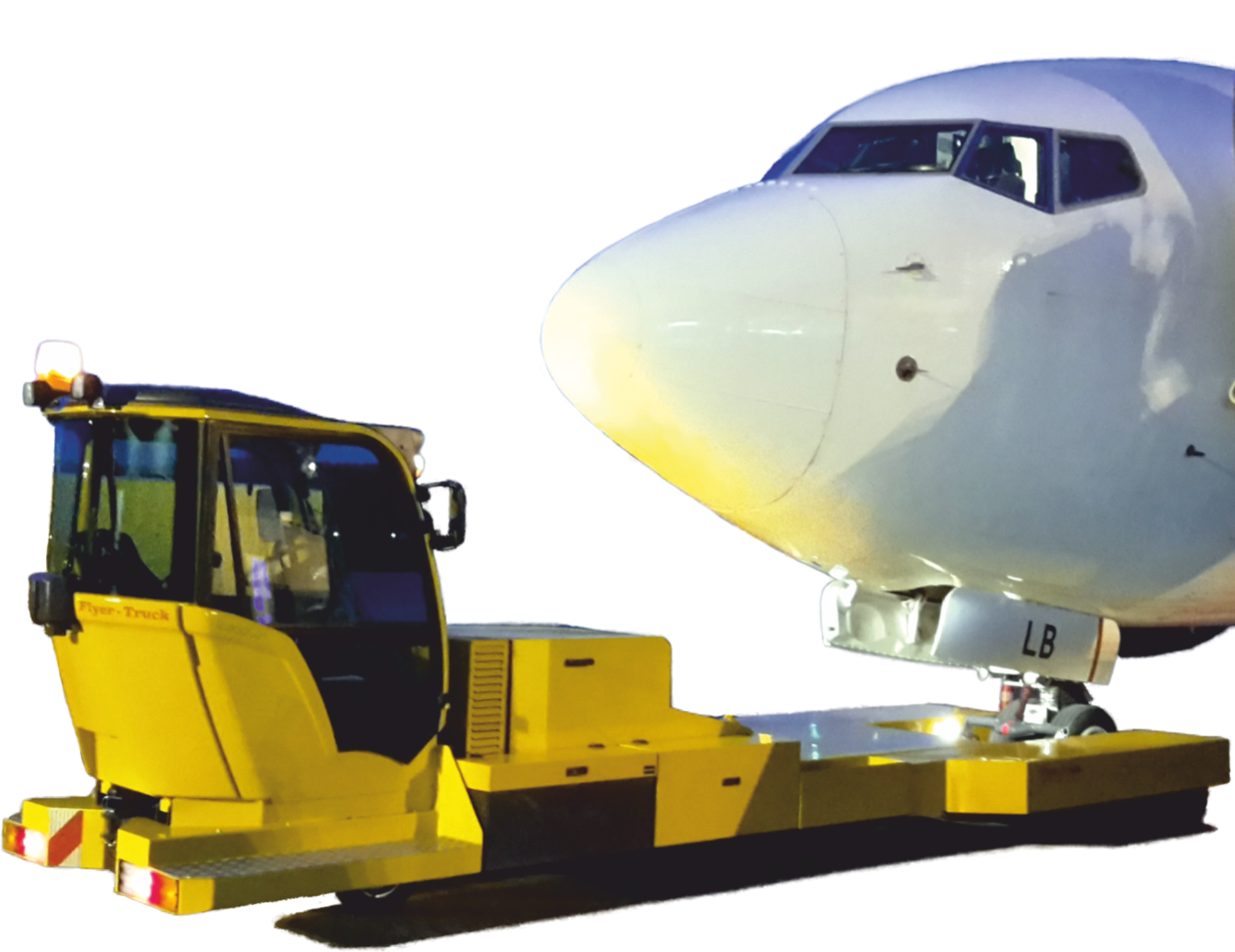

C250-1000 electro

suitable for airplanes and helicopters up to 100.0 t. Max. take-off weight

Overview

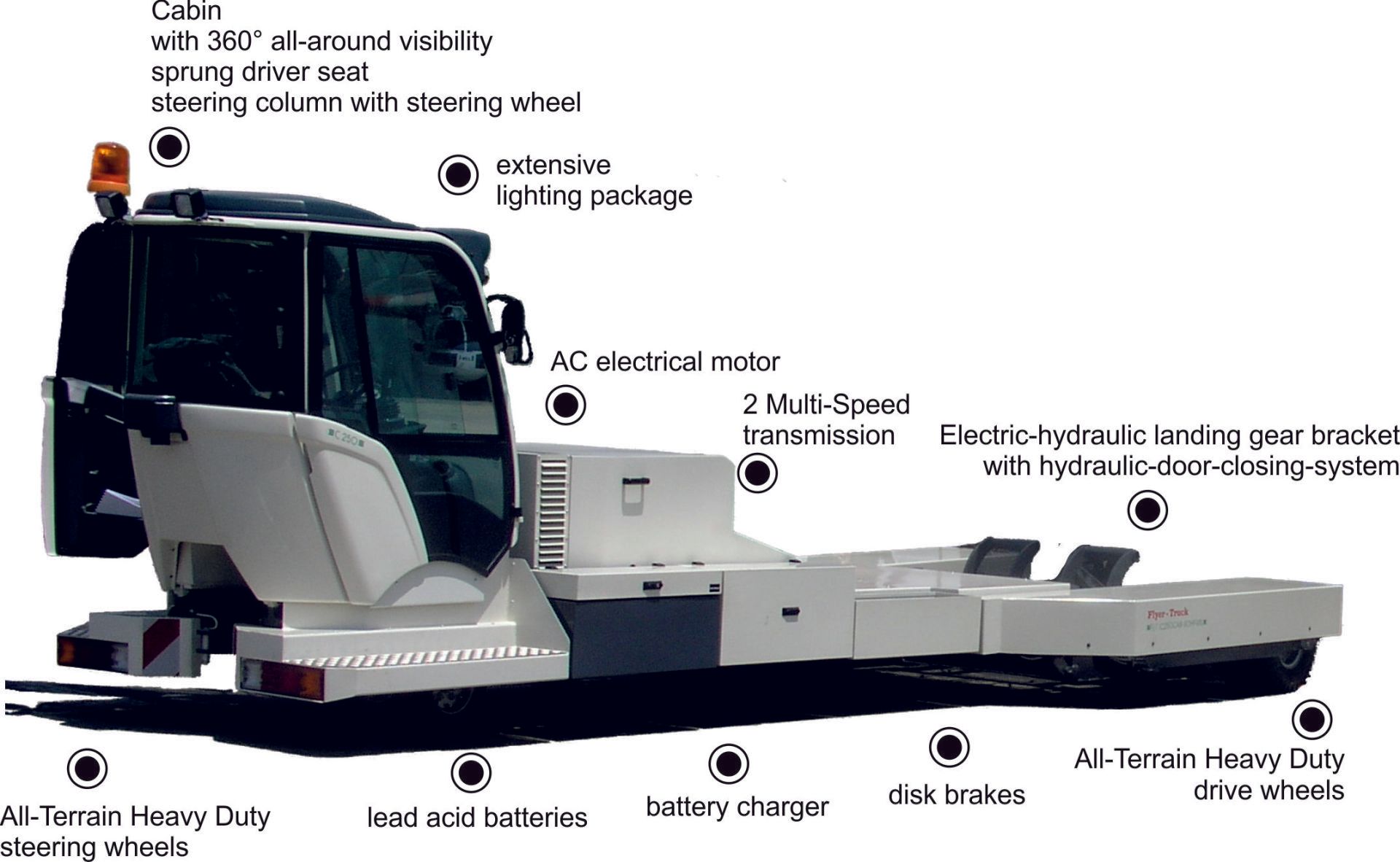

Technical Data

drive system

2 AC drive motors each 80V, 29 kW

single gear PMS

battery

850 Ah lead-acid batteries

battery charger

80V HF charger with charge level indicator, approx. 6 hours charging time, external

brake

Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake disc brake

speed

Forward and backward:

max. about 25 km / h

operation range

approx. 75 km depending on speed and load

frames

Loading weight: 11200 kg,
for aeroplanes approx. 100.0 t MTOW
weight empty: 8430 kg

control / steering

AC Controller 72-96 V 650A

electro-hydraulic steering operated by steering wheel

cabin

Driver cabin for one operator with ergonomically situated operating elements, side door, sliding window

landing gear bracket

Universal receptacle for double front landing gear, up to width tire 1150 mm, with hydraulic front gear wheel hold system, hydraulic door closing system

axes

2 drive axes

tires

Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire

lighting / safety device

- emergency stop

- LED light package after StVZO
- Safety up turn light on top
- Windshield wipers in the front and rear with wash

- heating

- signal horn
- fire-extinguisher

Configuration

Configurate your Flyer-Truck aircraft mover especially for your individual use:

- cabin equipment

- lighting

- landing gear bracket

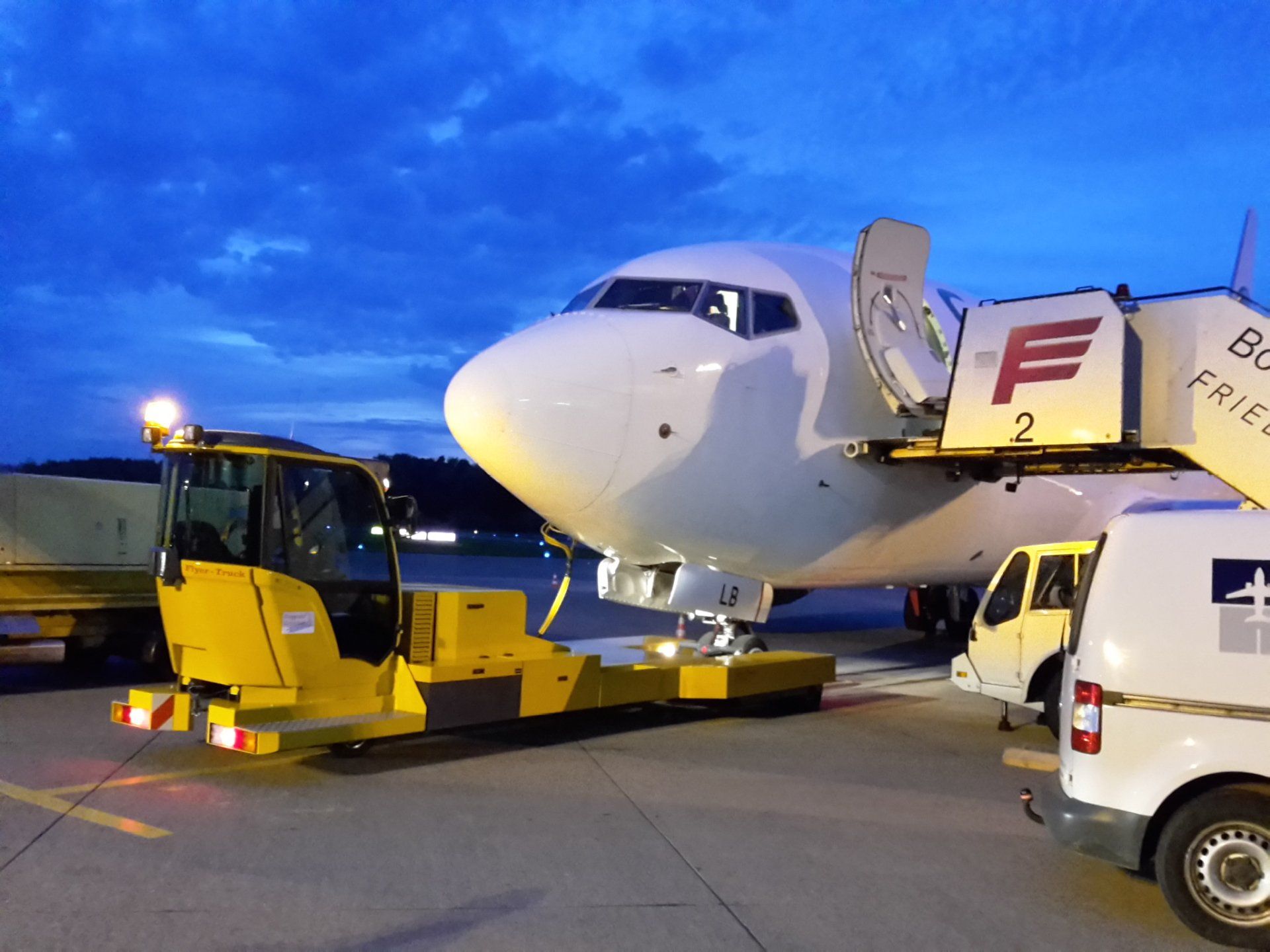

Gallery

Adapted for aircraft types like:

Airbus
Beechcraft
Boeing
Bombardier
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
