FLT 52 electro
FLT 52 electro
adapted for aircraft and helicopter
up to 5.2 t.
max. take off weight

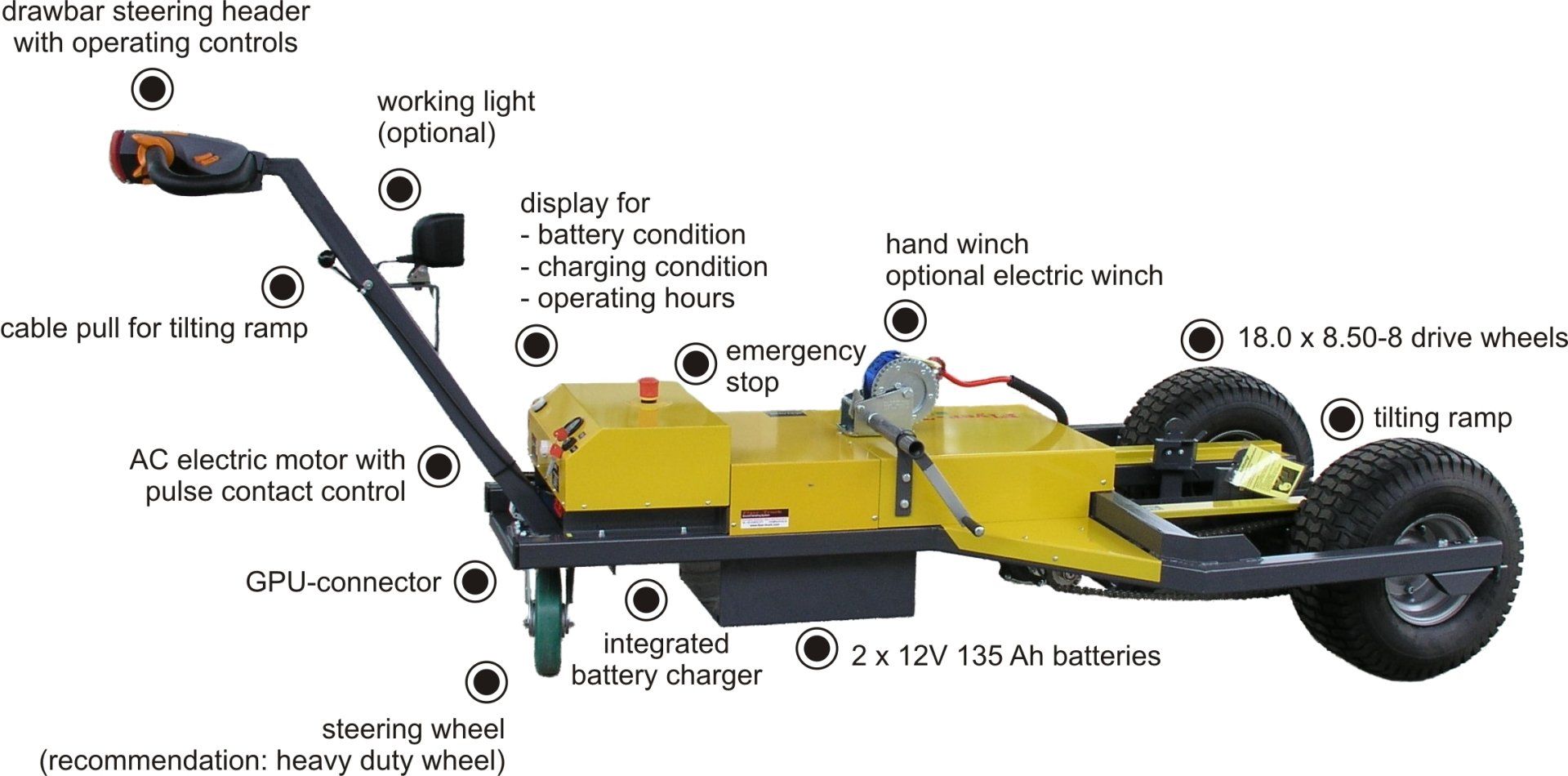

Overview
Technical Data
drive system
Electric engine AC 24V 1.2 kW
Differential axis TX1
Pulse contact control
Differential axis TX1
Pulse contact control
battery
2 x 12V 135 Ah
battery charger
HF charger 230/24V 18A with charge level indicator
incl. 230 V adapter cable 1.0 m (charging cable)
incl. 230 V adapter cable 1.0 m (charging cable)
brake
Spring power brake magnetic 16 Nm / 24V
speed
Forward and backward:
approx. 0 - 6 km / h
frames
Loading weight: 1100 kg,
up to approx. 5.2 t MTOW
weight empty: 200 kg
dimension: L x W 2.75 x 1.21 m
weight empty: 200 kg
dimension: L x W 2.75 x 1.21 m
steering

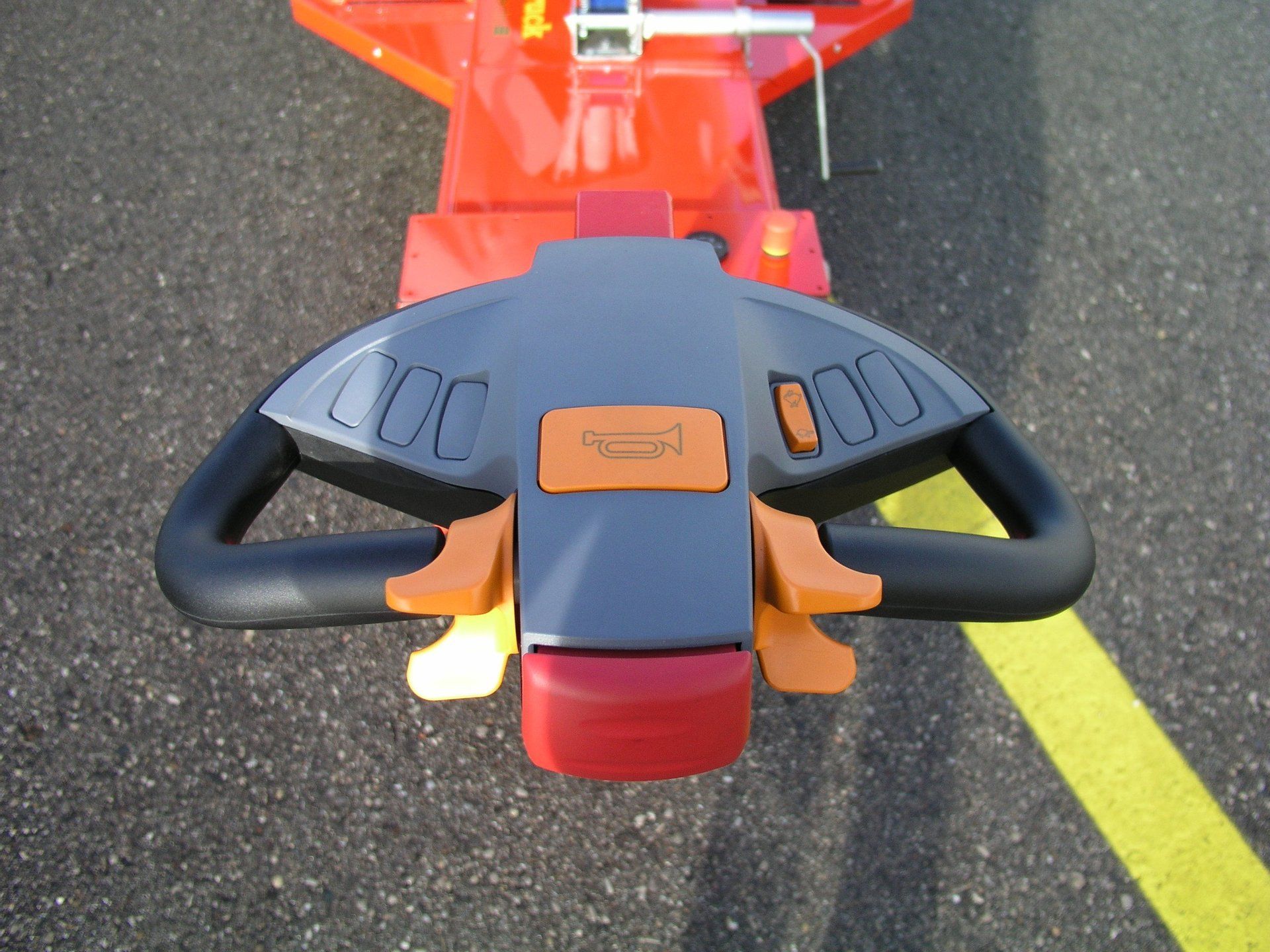

Drawbar steering header
Plastic case with driving switches, fast and creep speed, signal horn
Plastic case with driving switches, fast and creep speed, signal horn
landing gear bracket

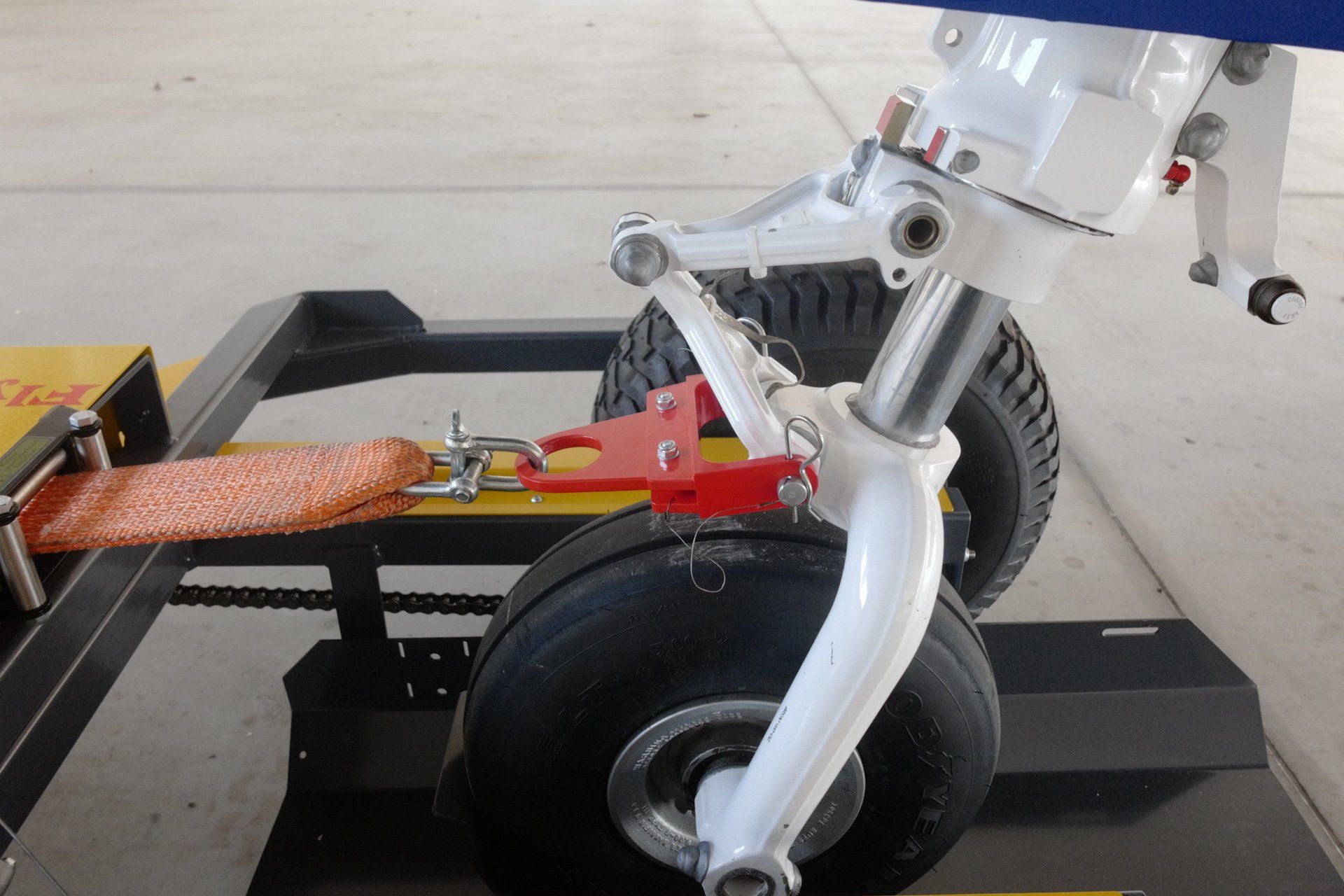

Simple bracket for nose wheel pick up with tilting ramp, hand winch with flat belt and to pull lever
tires
18.0 x 8.50-8 drive wheels
GPU

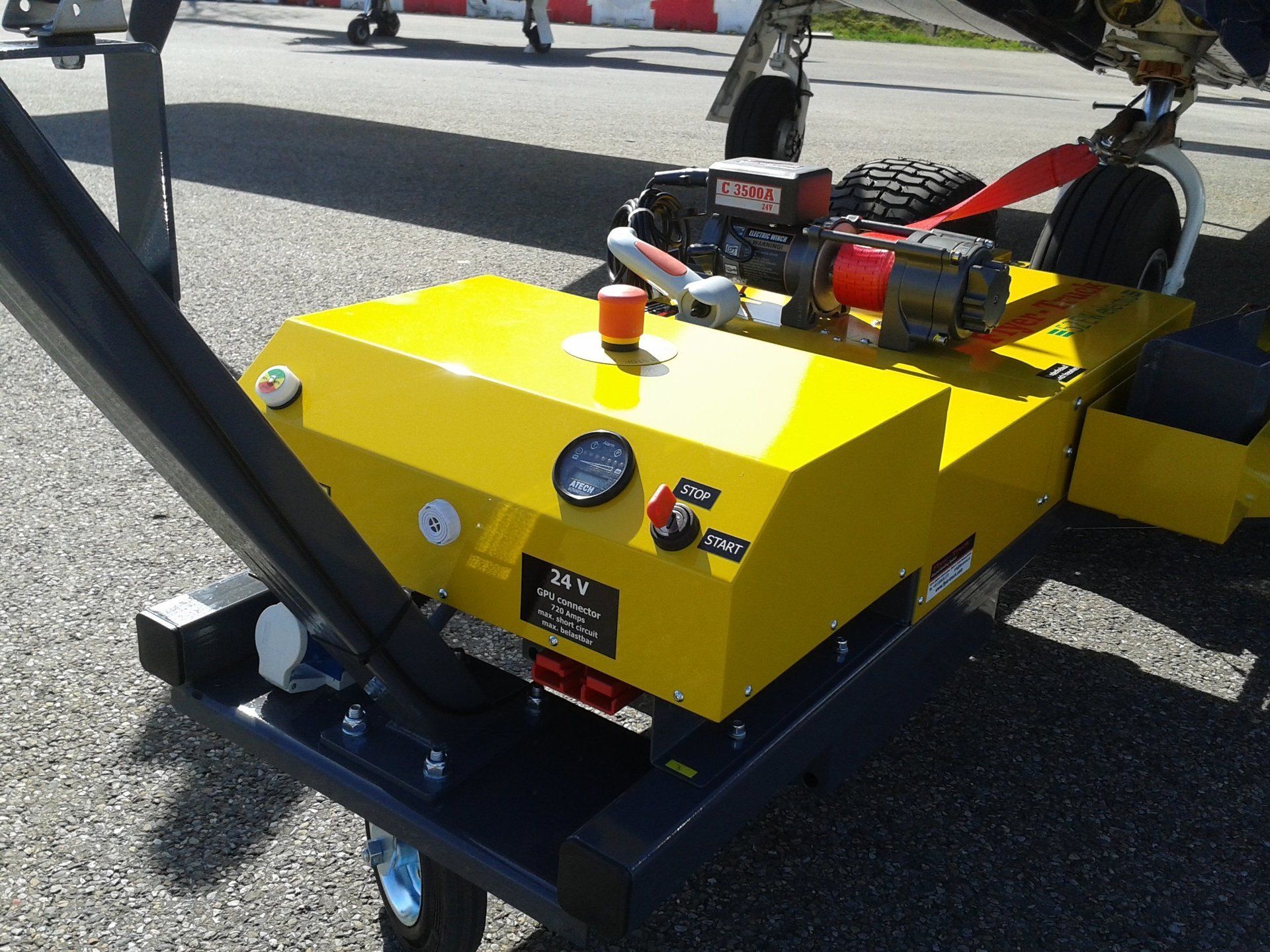

External GPU connector

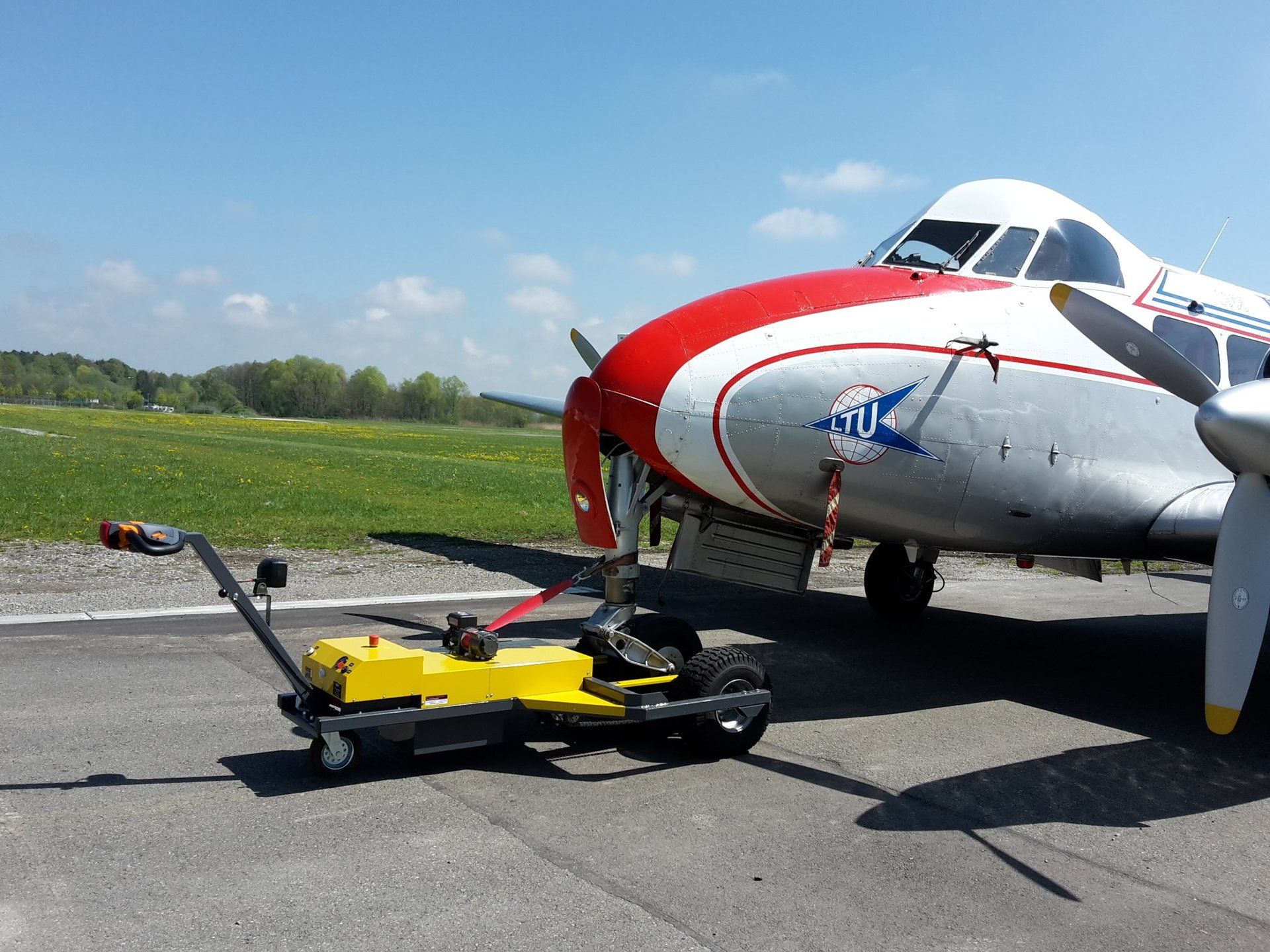

Gallery
Adapted for aircraft types like:
Beech 23, 24, Bonanza 33, 36, Baron 58
Cessna 150, 172, 182, 206, 210, Caravan I, 310, 340, 414, Golden Eagle 421

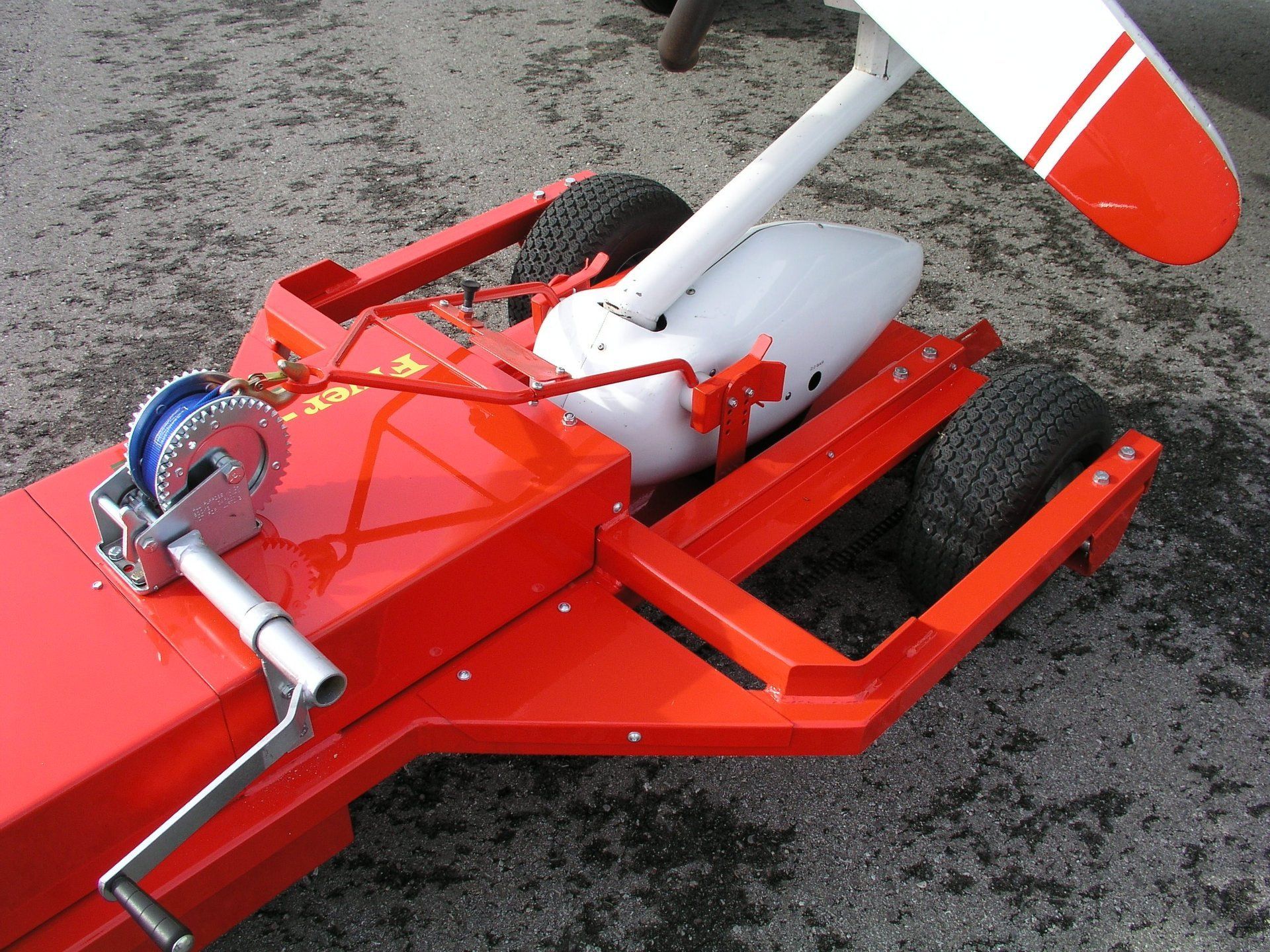

Cirrus SR20 / 22,

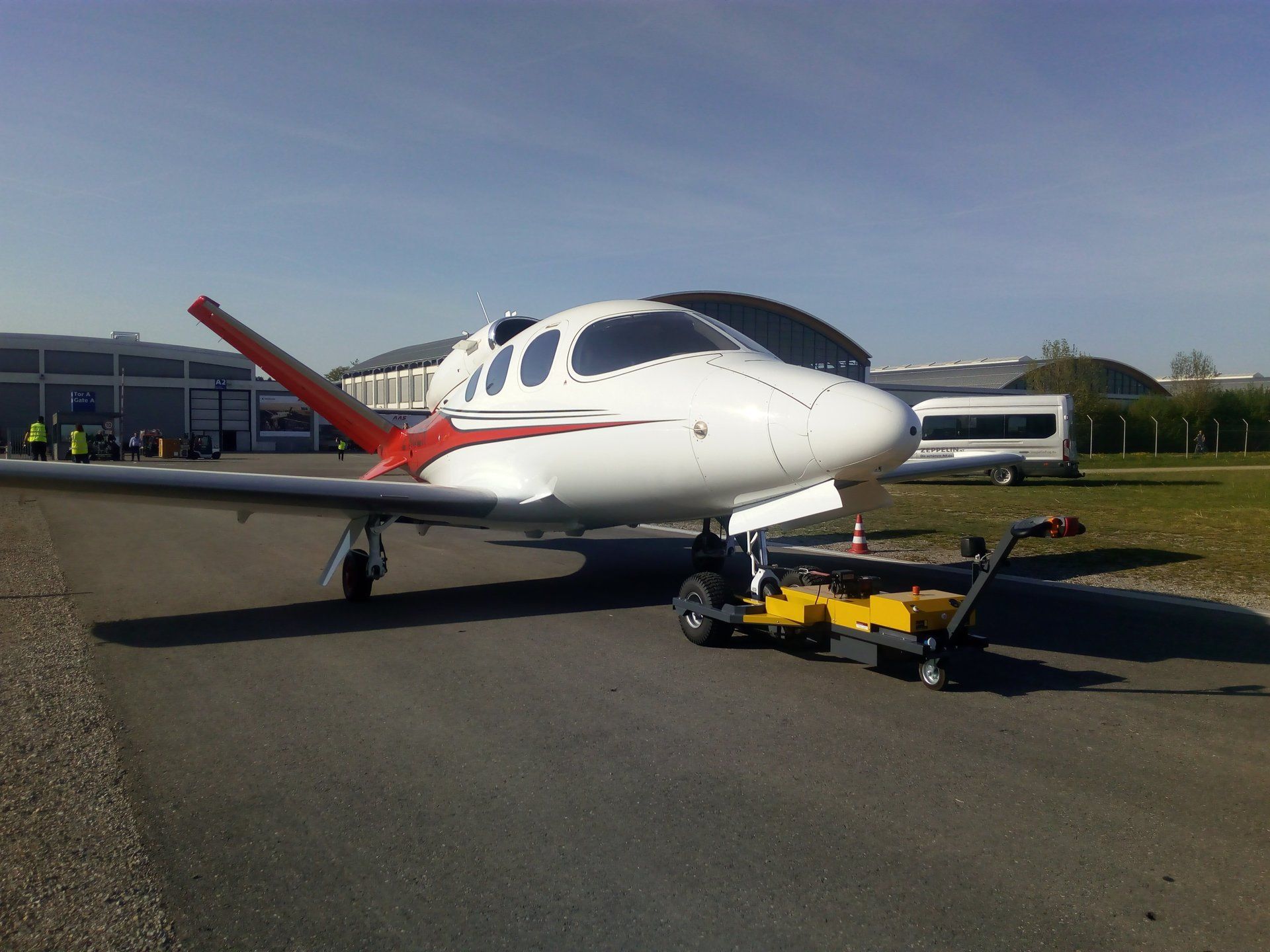

Cirrus Vision Jet

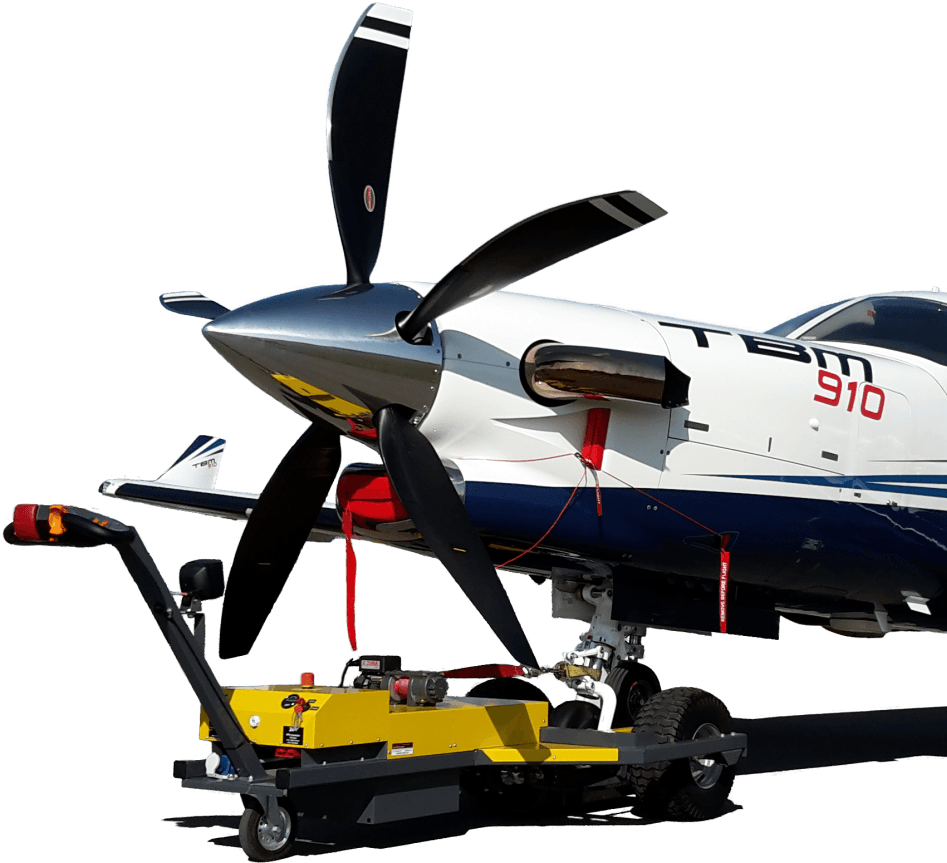

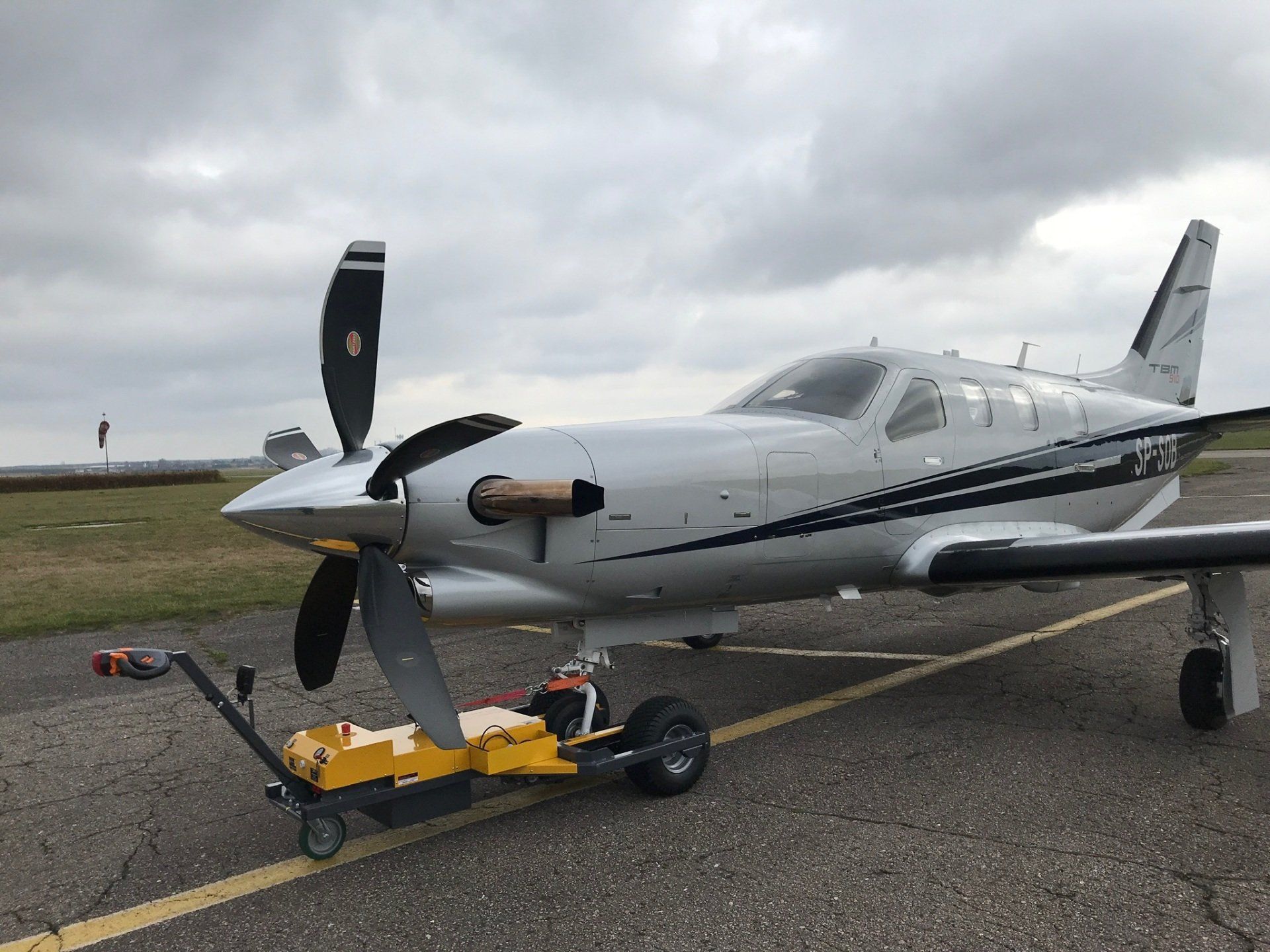

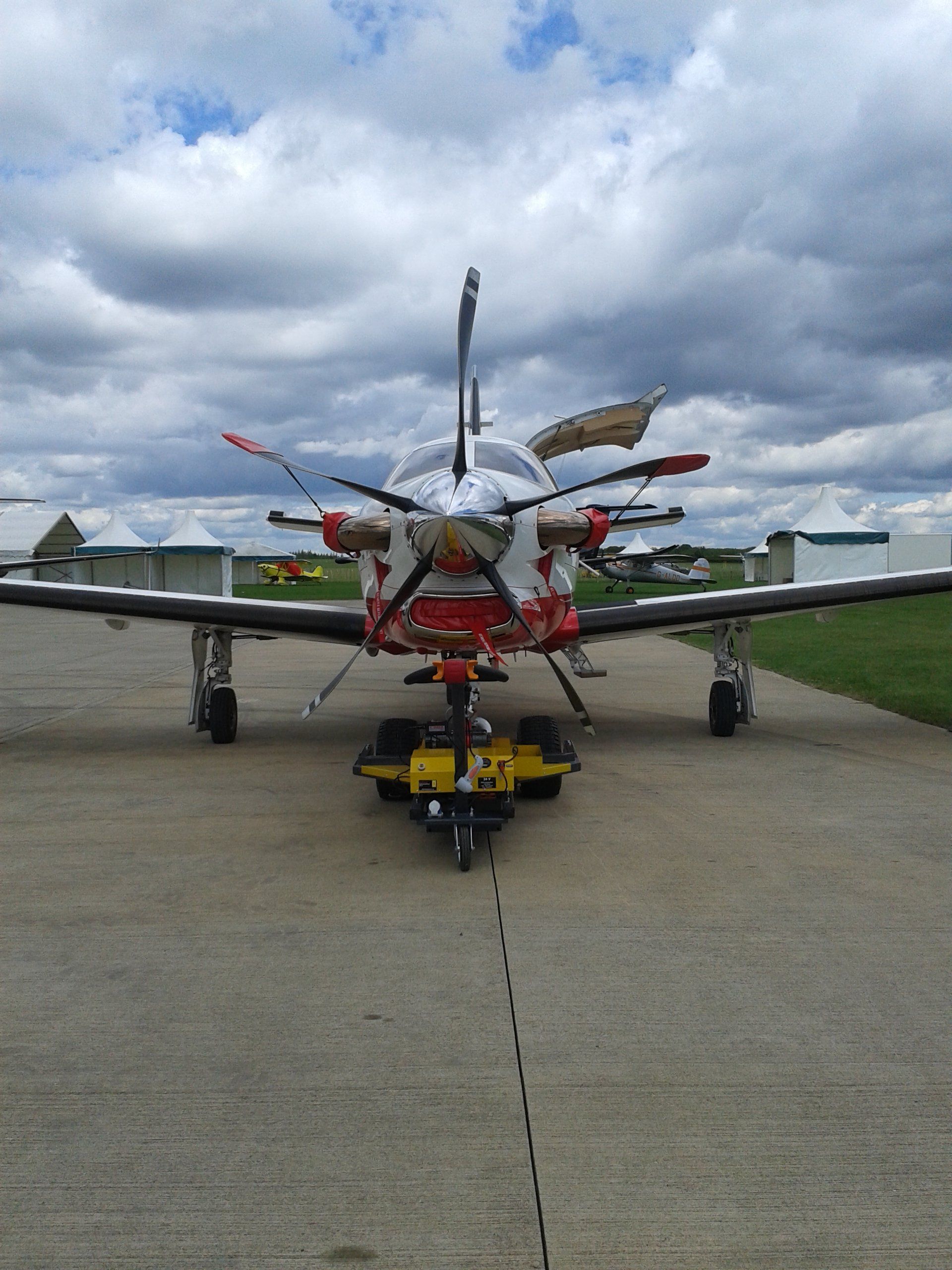

Daher TB9, 10, 20/21, 200 , TBM 700, 850, 900

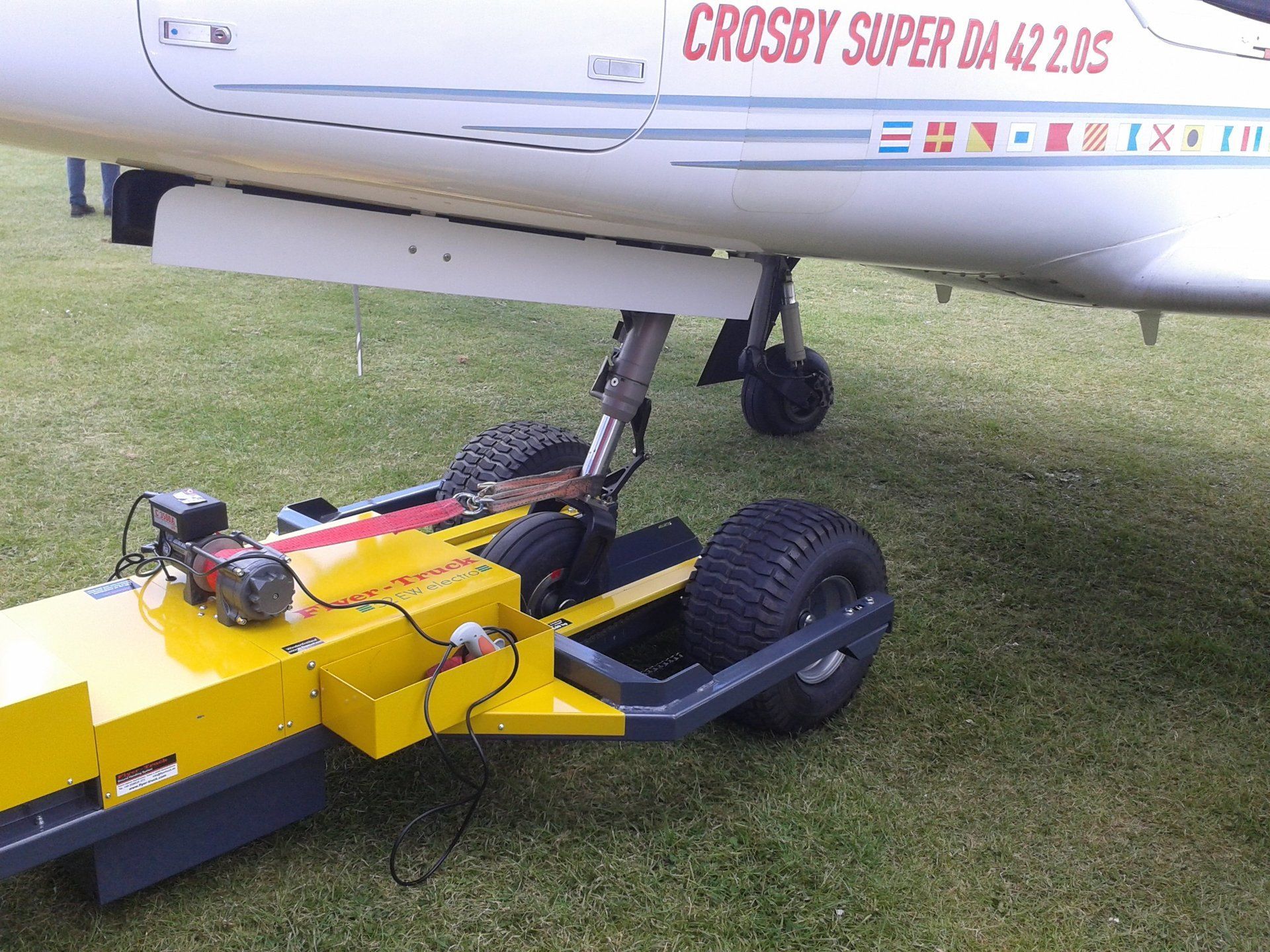

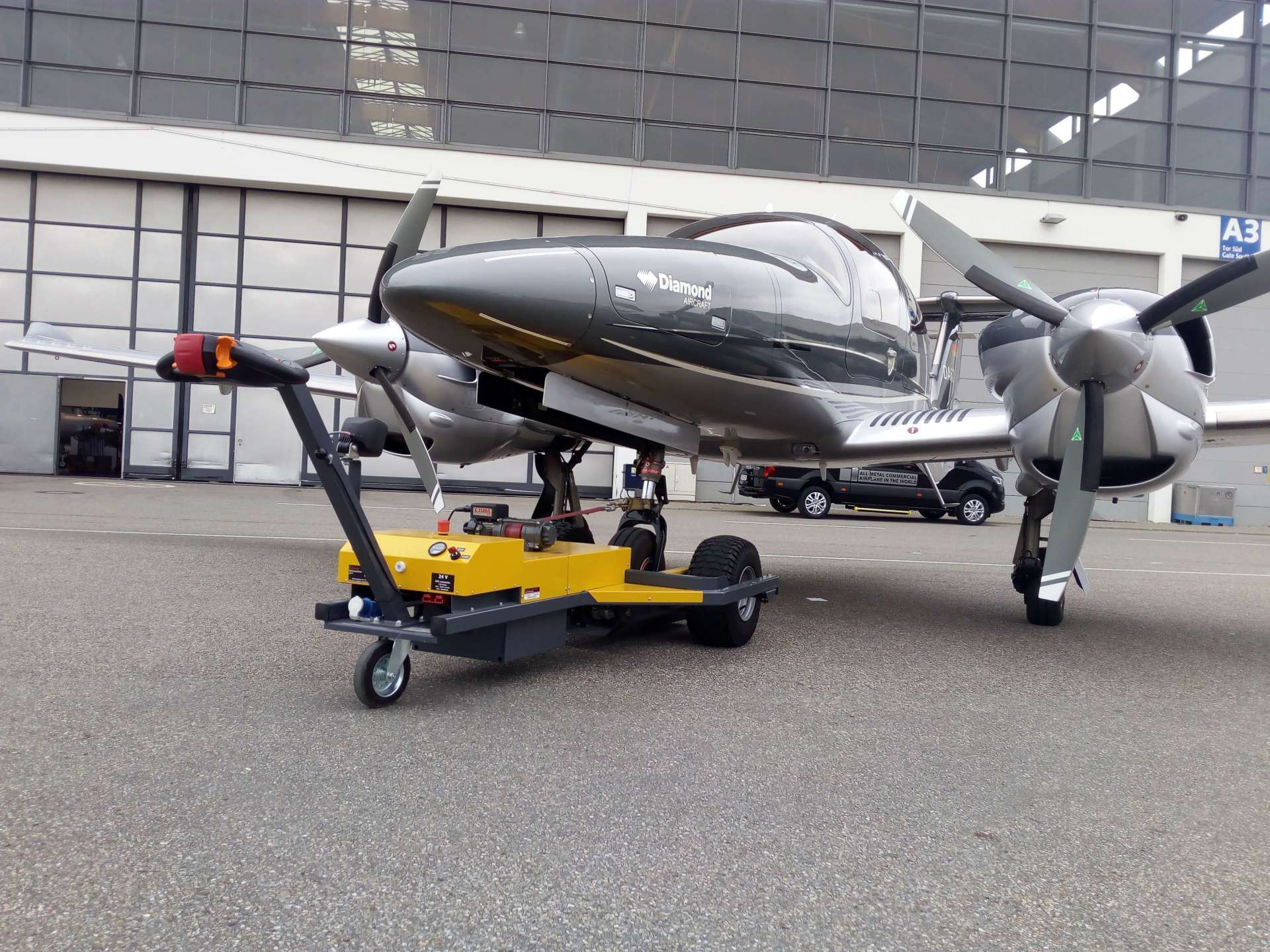

Diamond DA20 / 40, 42, 62
Eclipse 500

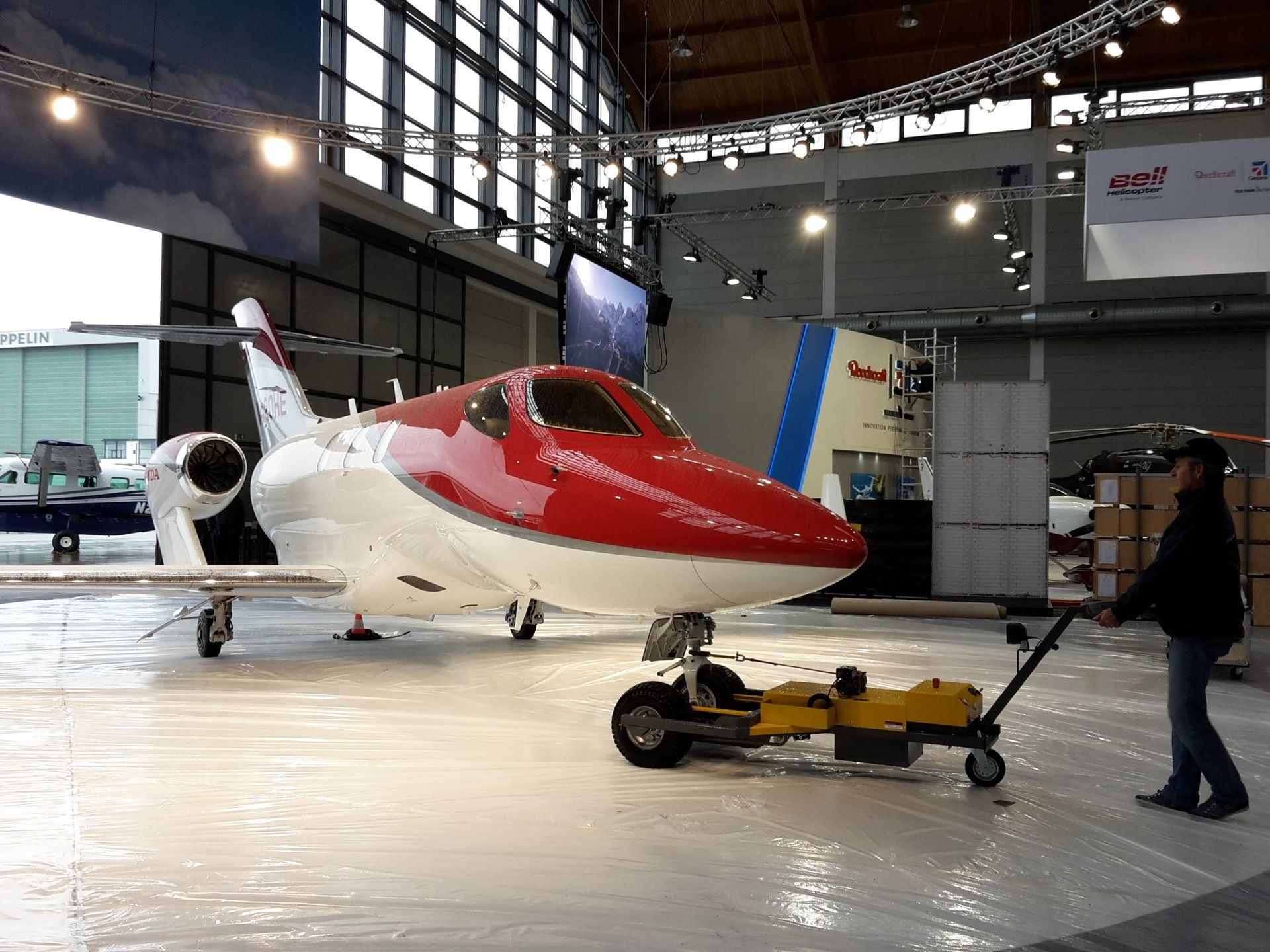

Hondajet

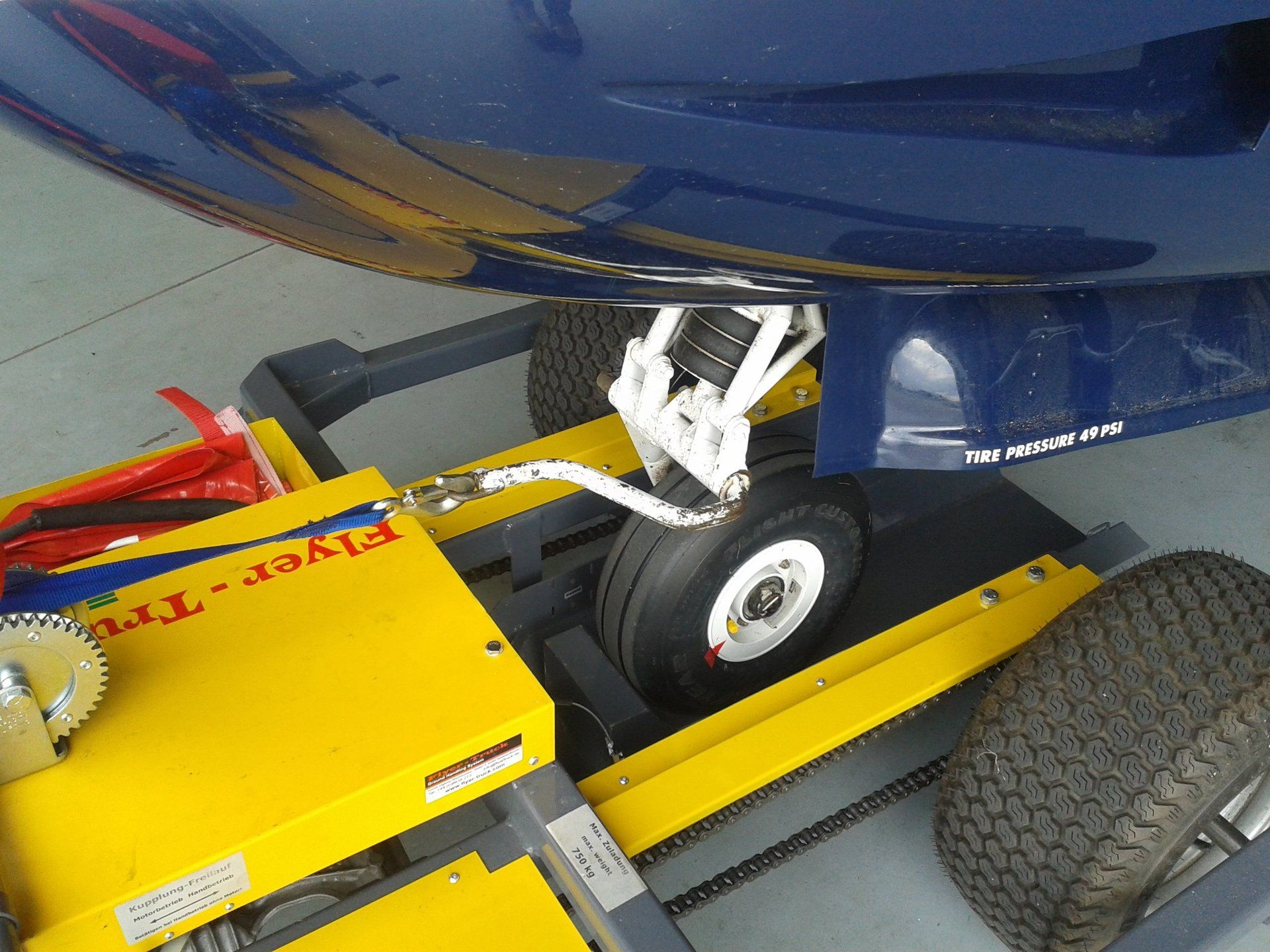

Mooney
Pilatus PC-12

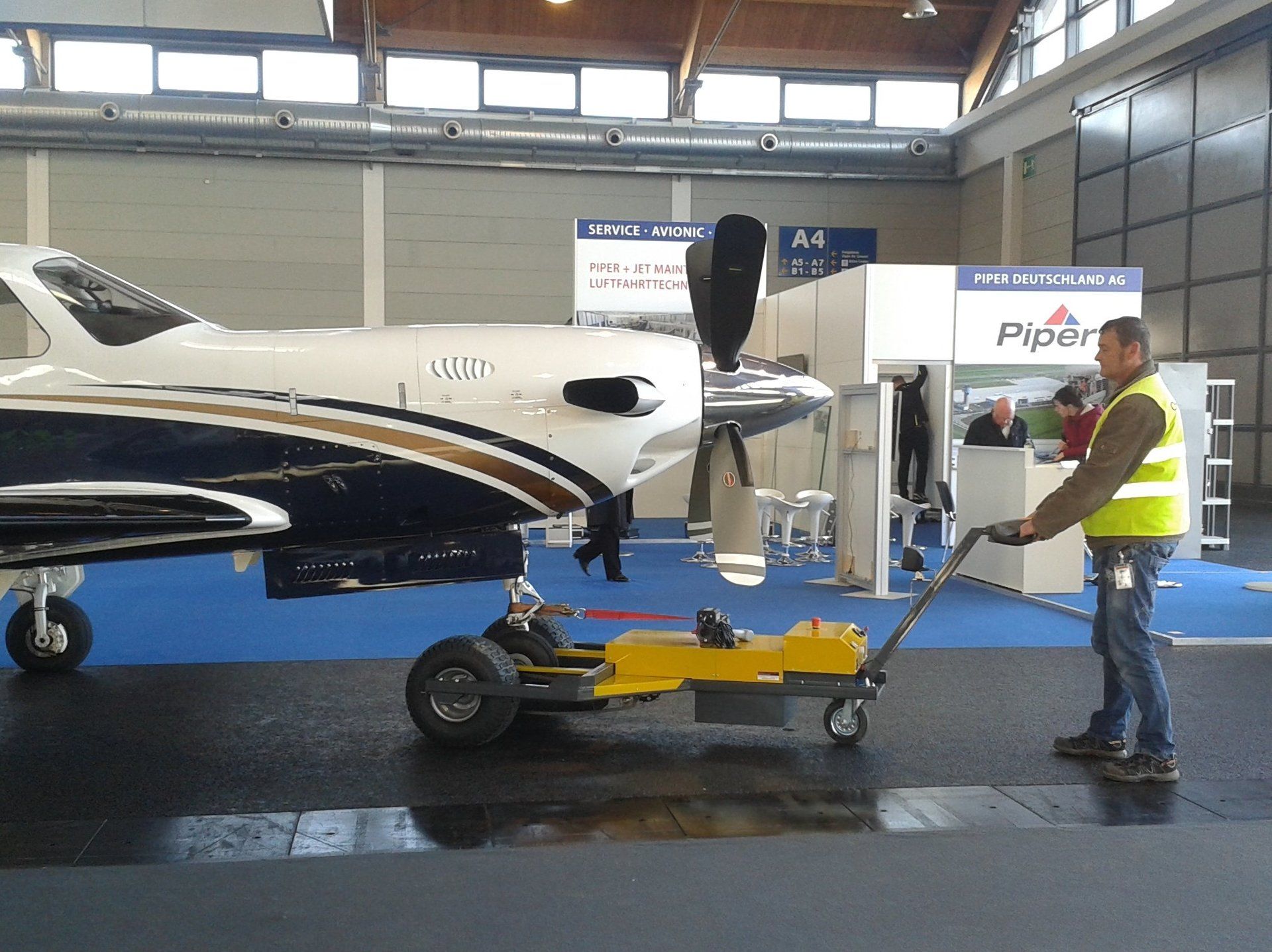

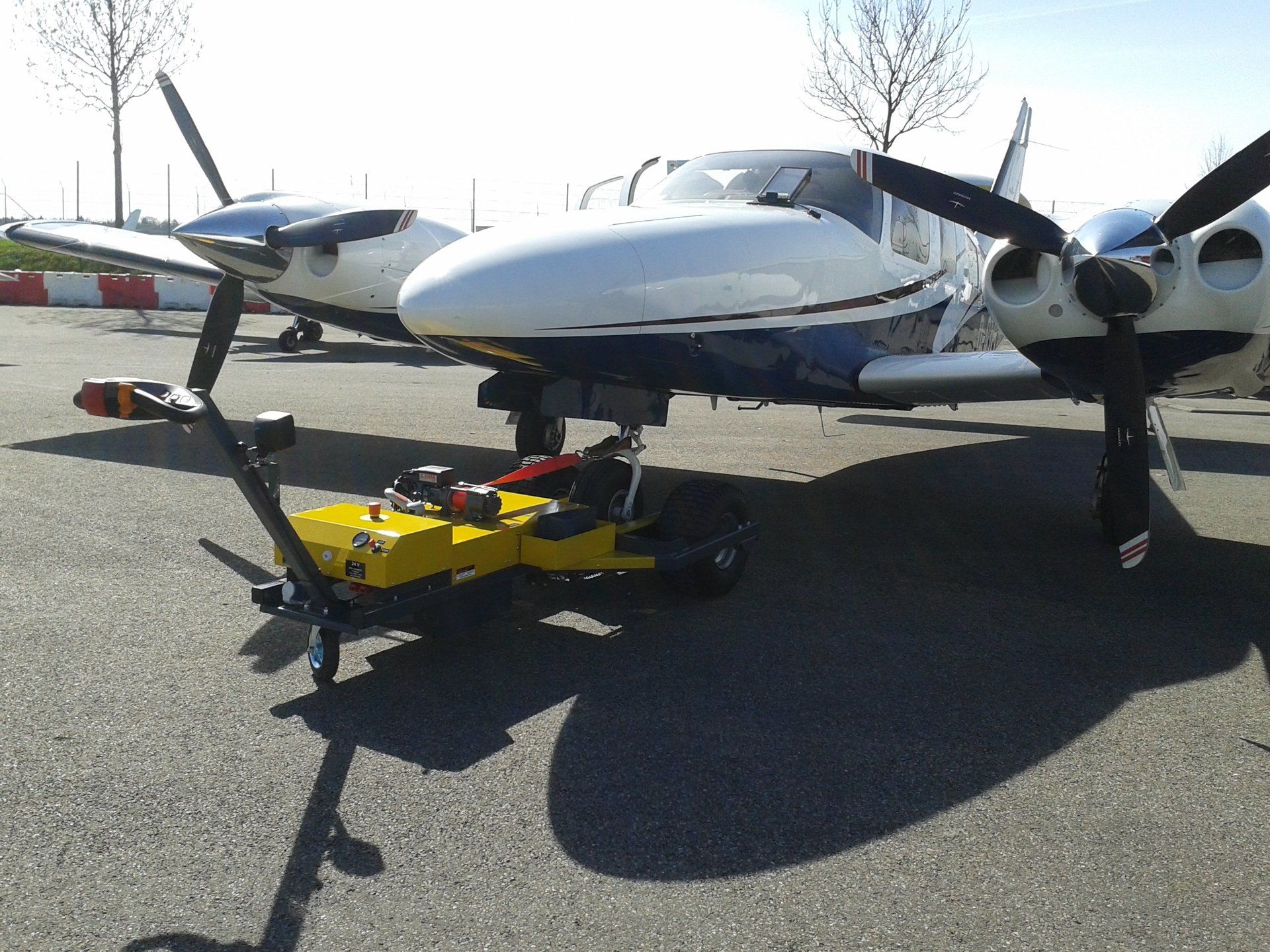

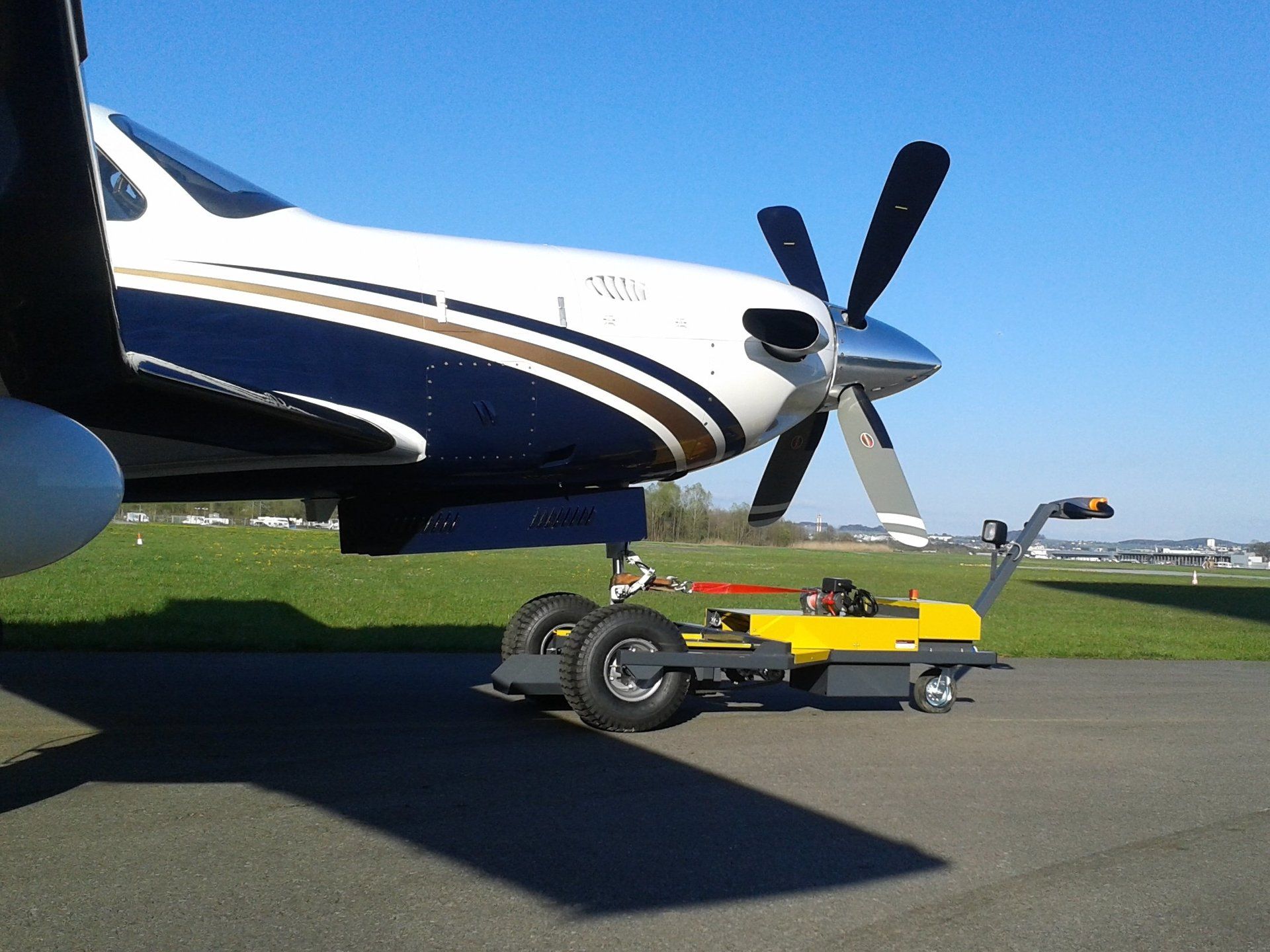

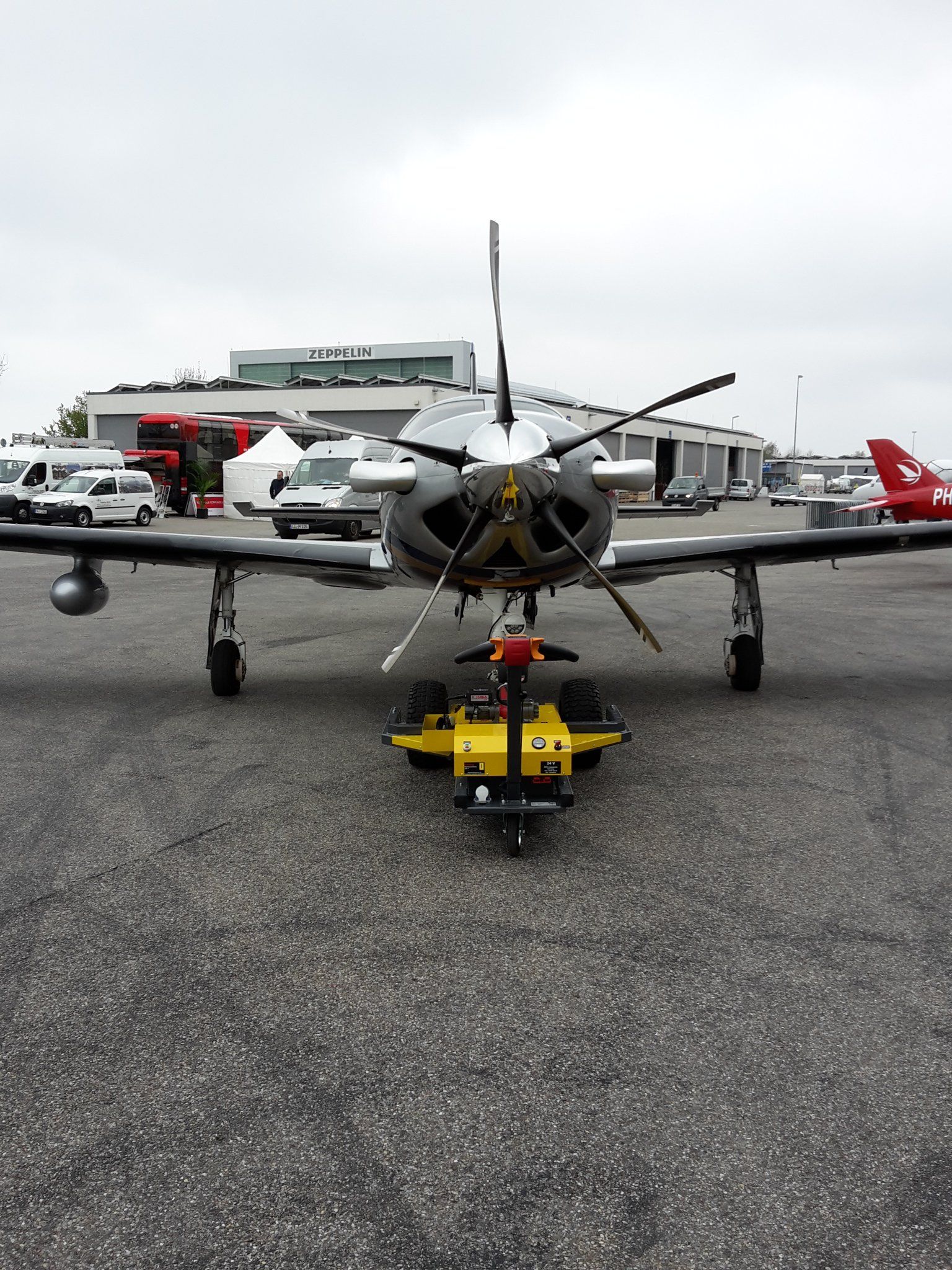

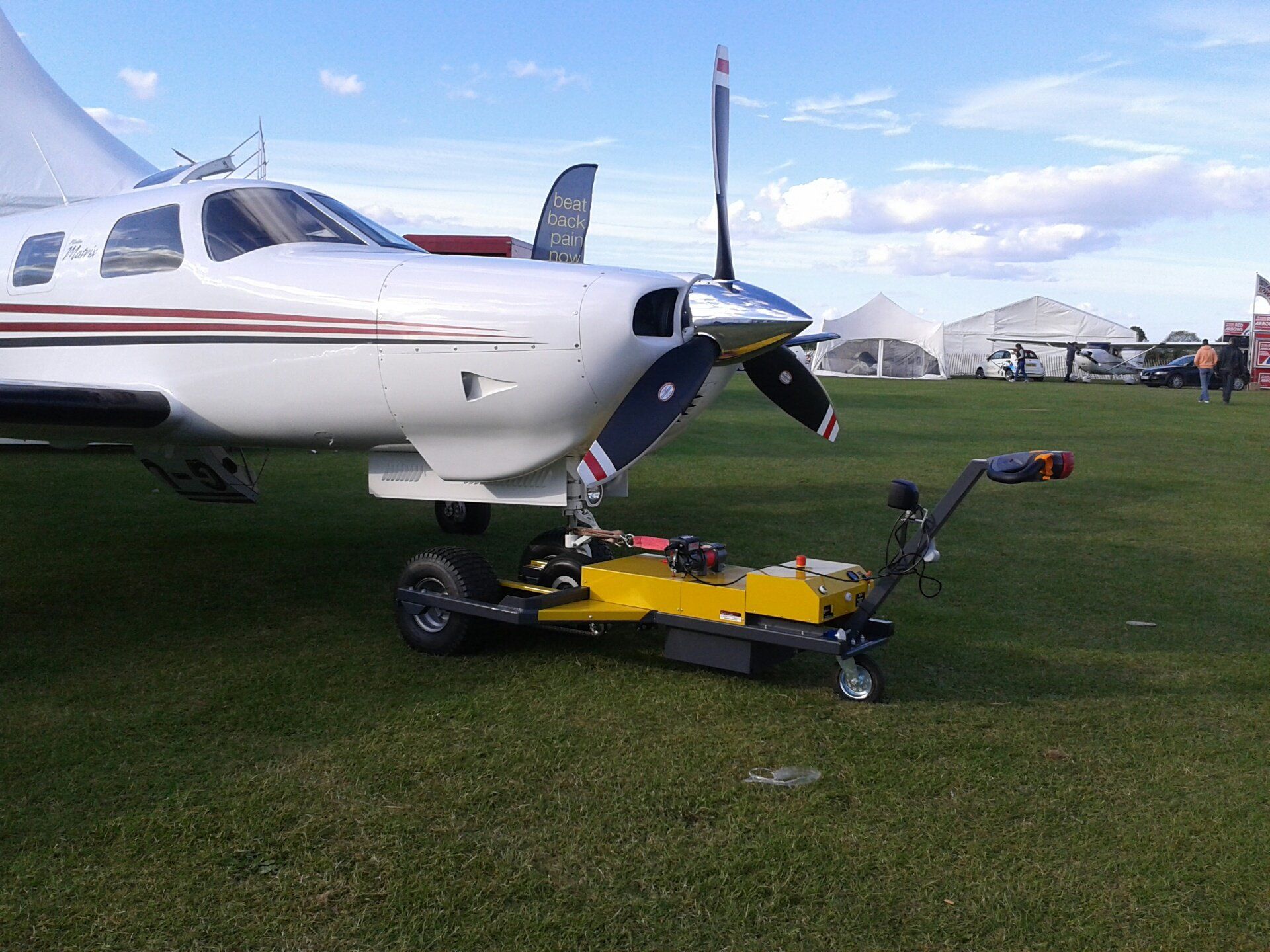

Piper PA28, 32, 34 Seneca, PA 46, Cheyenne I / II
Rockwell Commander 111-114
Tecnam P2006T
Vulcanair P68, VR
