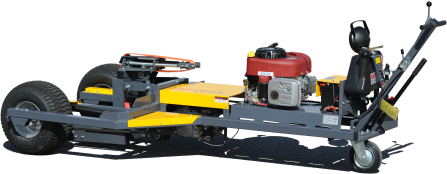

FLT 57

adapted for aircraft and helicopter

up to 5.7 t. max. take off weight

Overview

Technical Data

motor

13.5 HP Briggs & Stratton AVS 4-stroke engine with electric starter

gearbox

Hydraulic transmission drive - forward and reverse gear.
Continuously variable speed control, single lever operation

frames

Loading weight: 750 kg,

up to approx. 5.7 t MTOW
weight empty: 220 kg
dimension: L x W 2.50 x 1.25 m

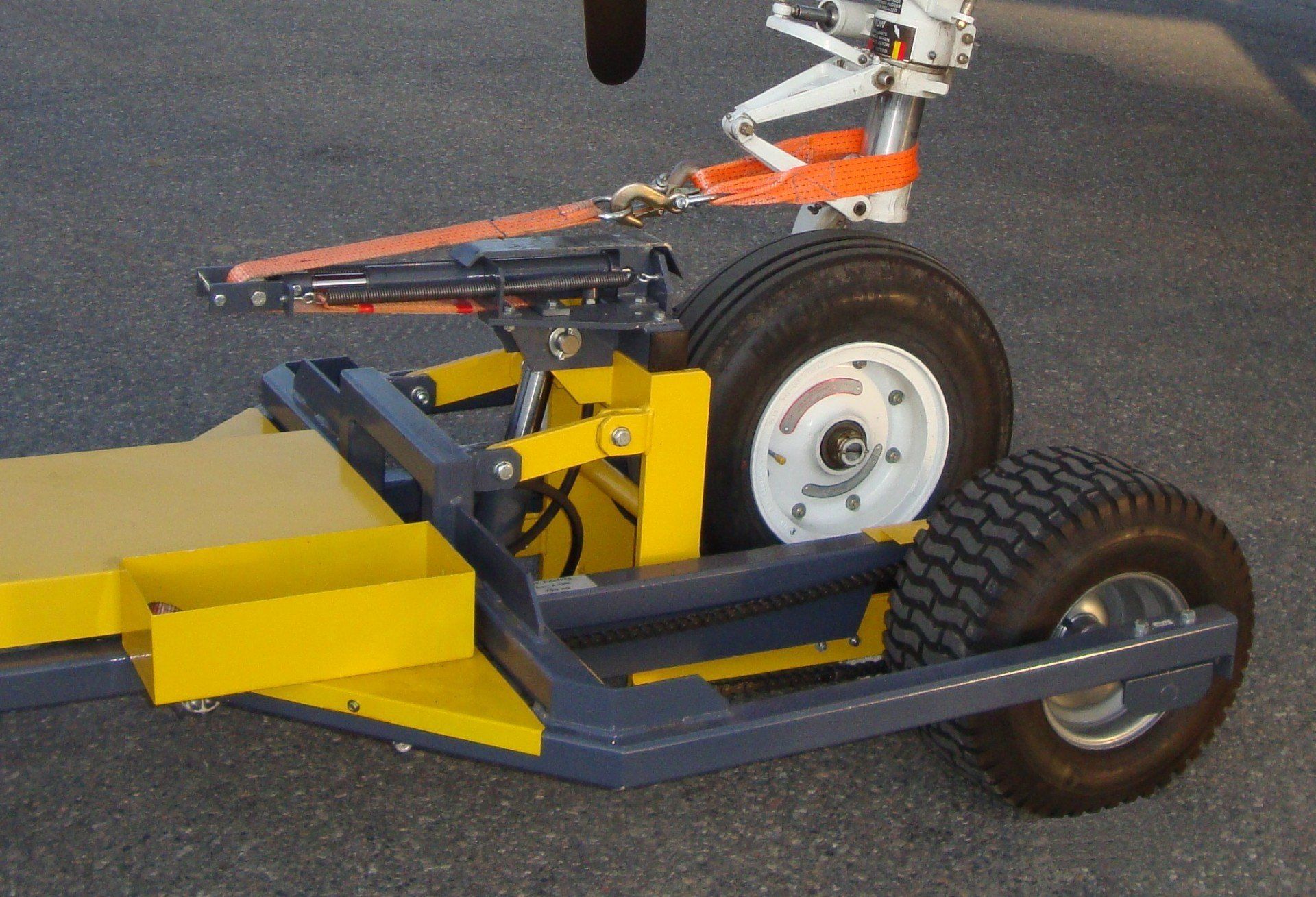

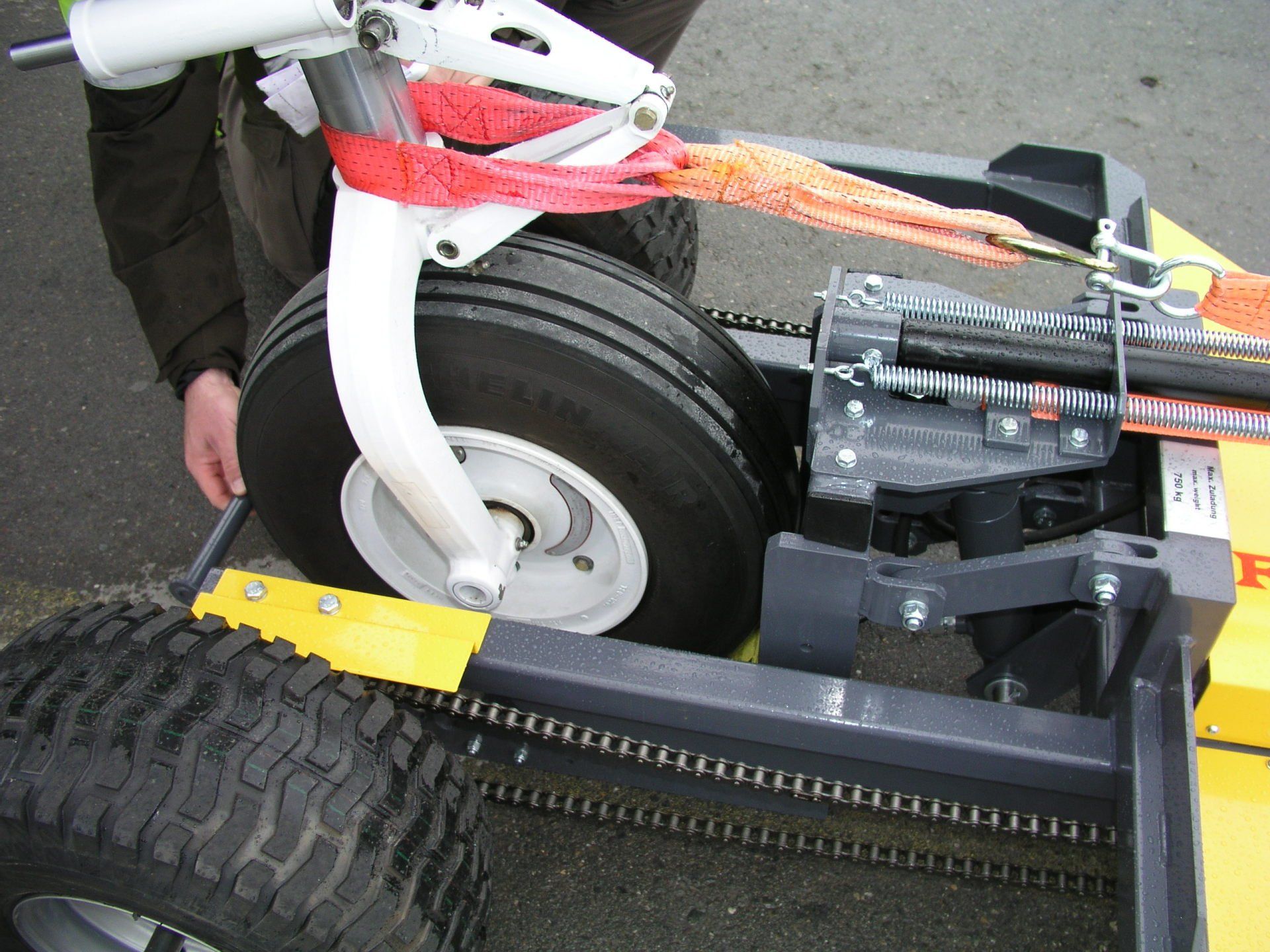

landing gear bracket

Hydraulically operated gear lifting max. 17 cm, Hydraulic cylinder with manual operated pump for max up to 750 kg beside handlebar with electric winch

drive

2 drive wheels with chain drive

tires

18.0 x 8.50-8 drive wheels

electric

Battery 12V 45 Ah

Gallery

Adapted for aircraft types like:

Beech Bonanza 33, 36, Baron 58

Beech Jet 400, 400 A

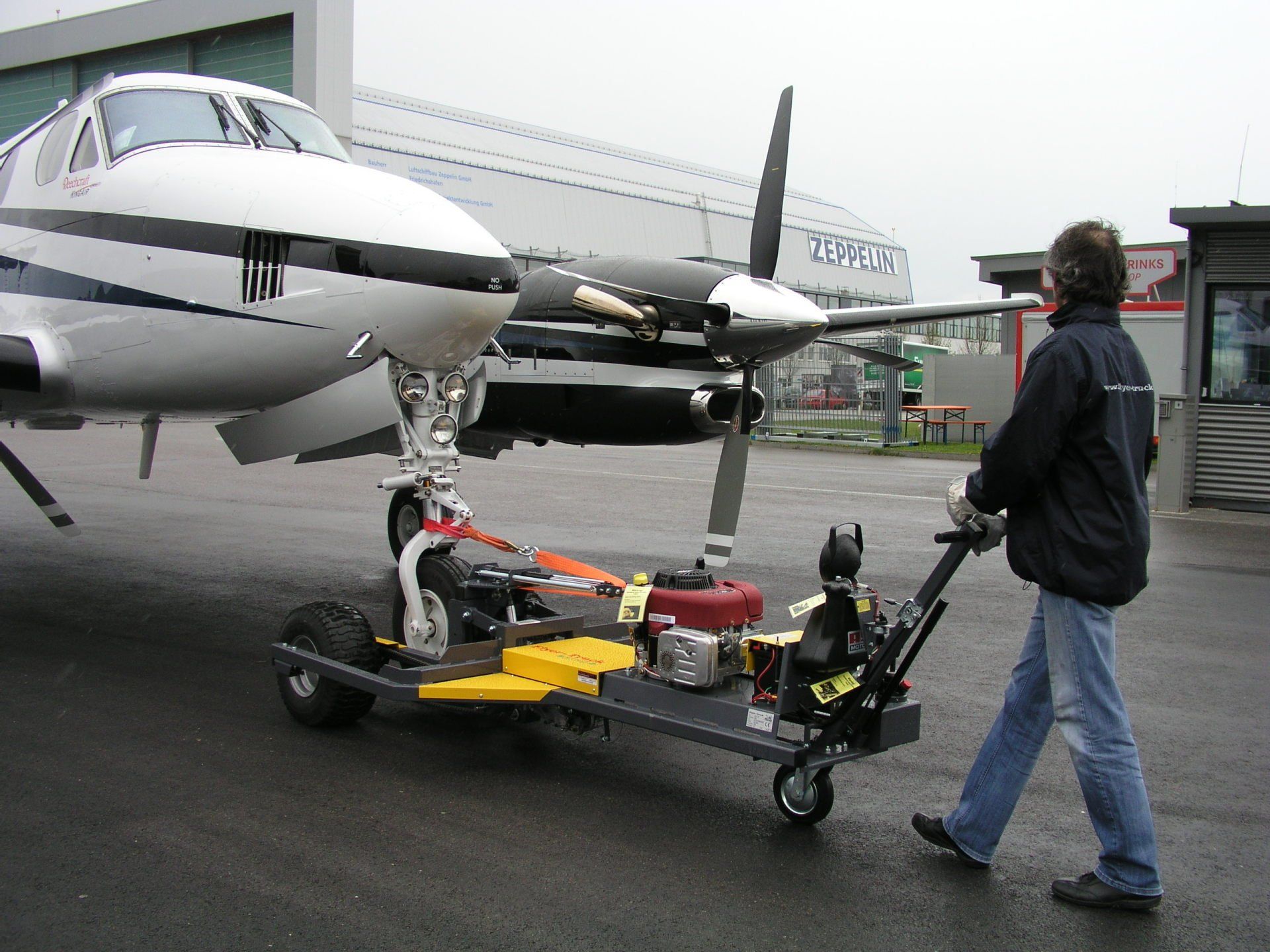

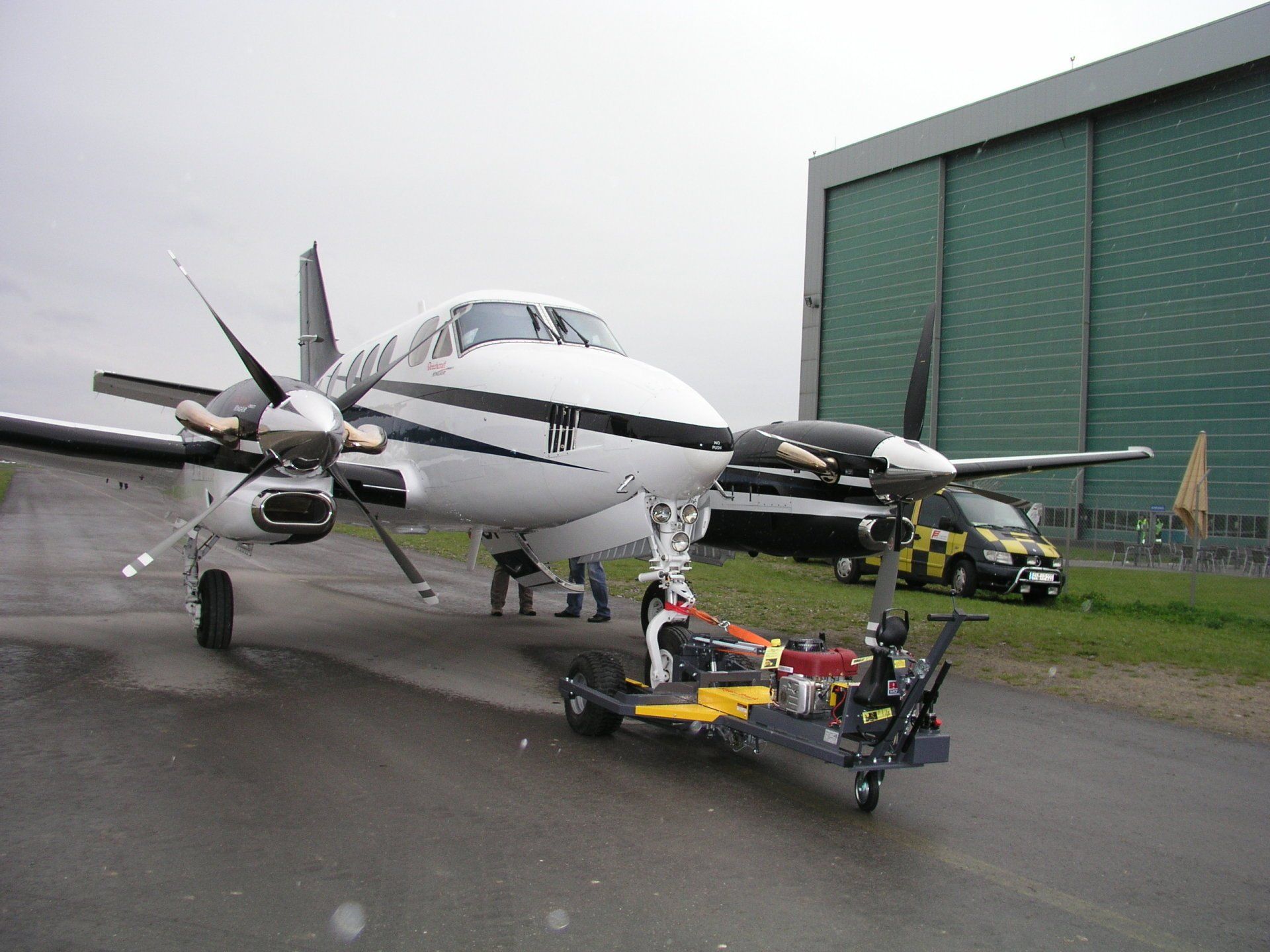

Beech King Air 90, 200, 250, Beech Premier 1

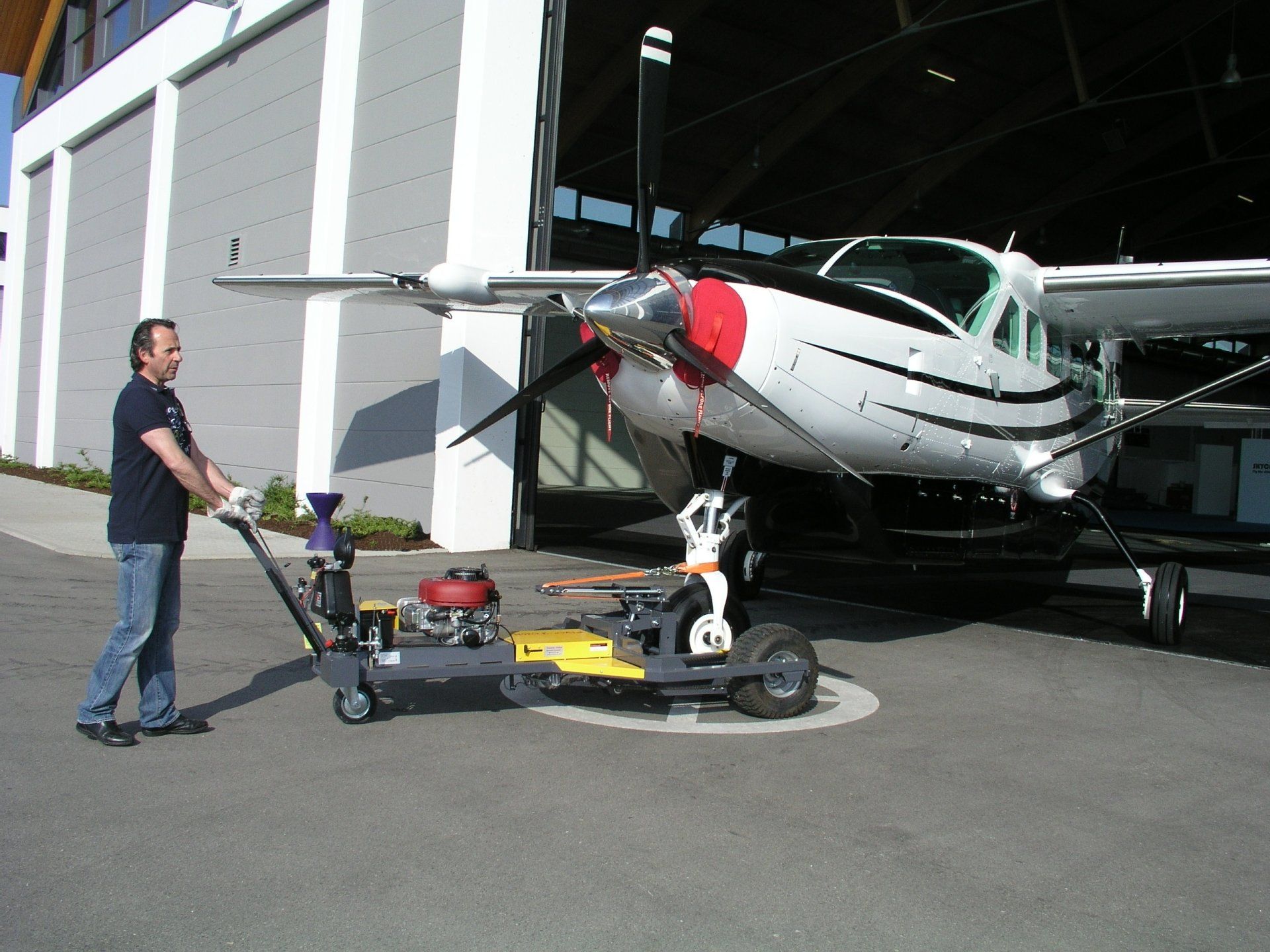

Cessna Caravan I, 414, Golden Eagle 421, 425

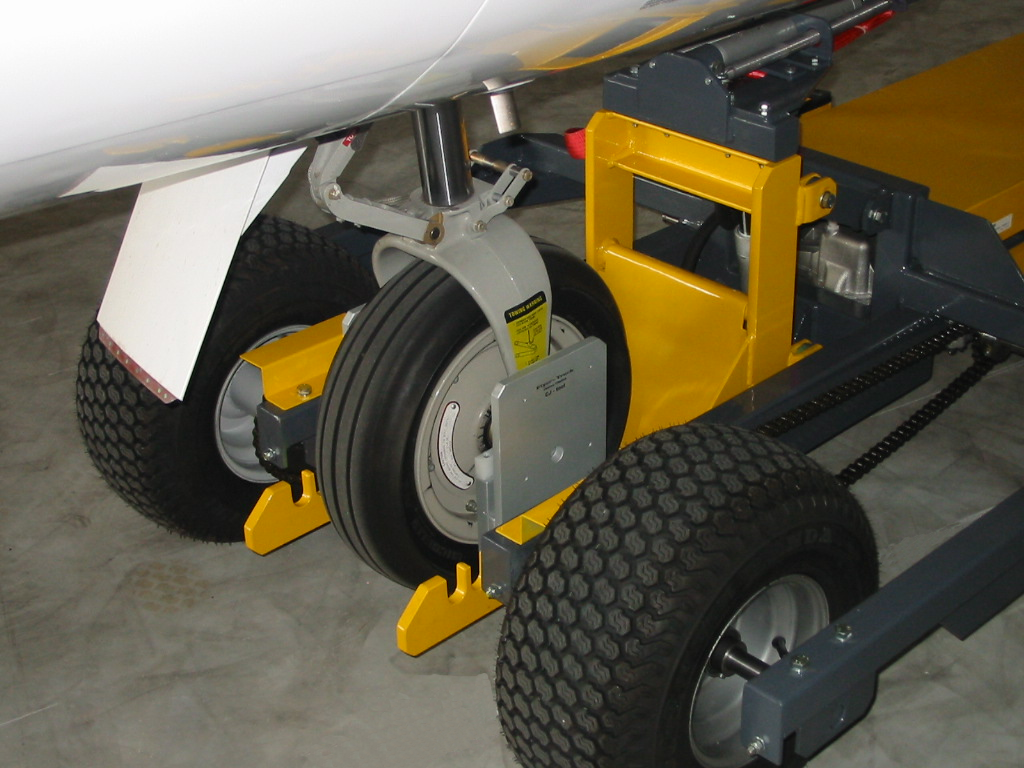

Cessna Citation II, Citation Jet CJ1 , CJ2 , M2, Mustang

Eclipse 500

Learjet 24

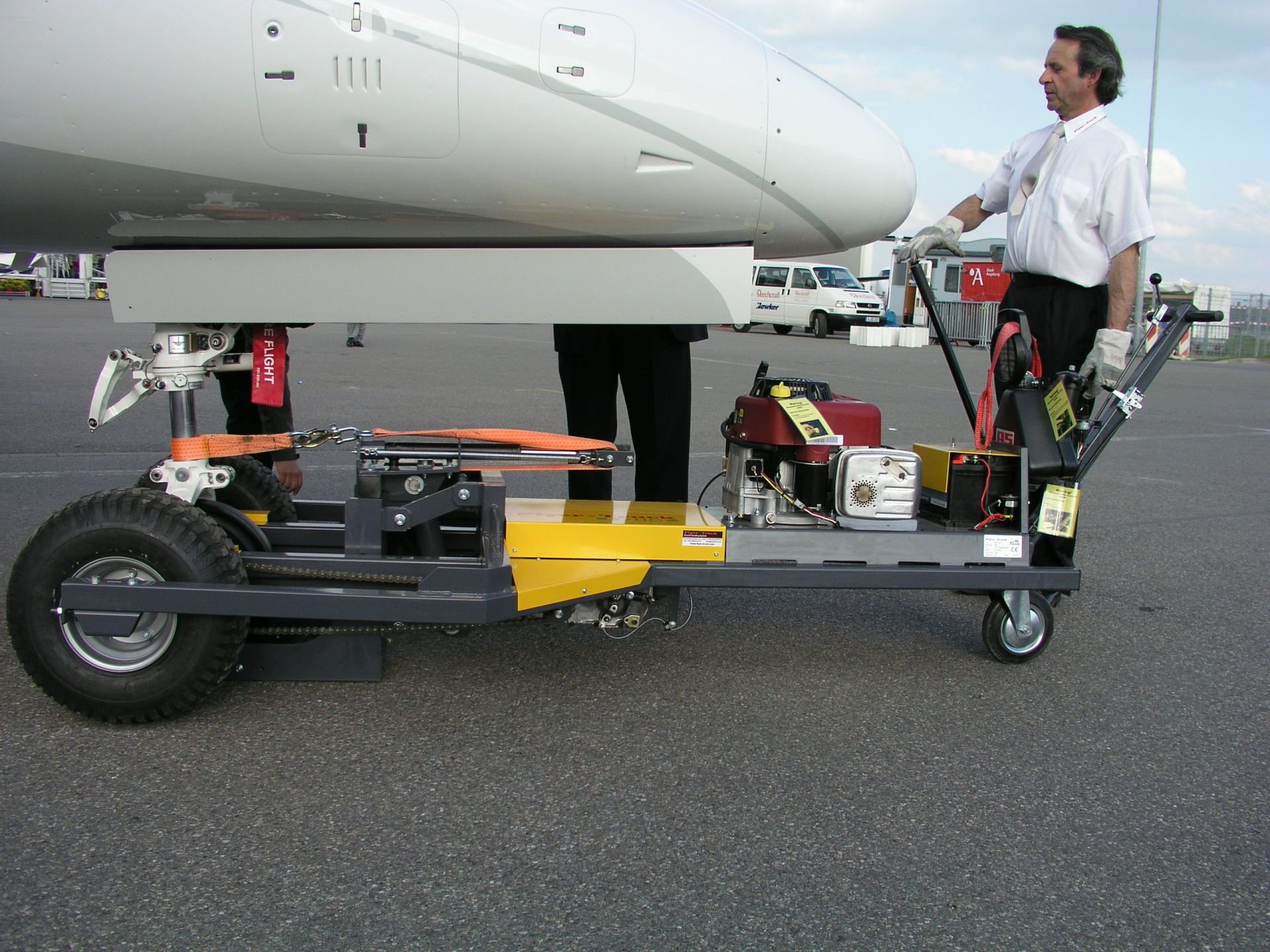

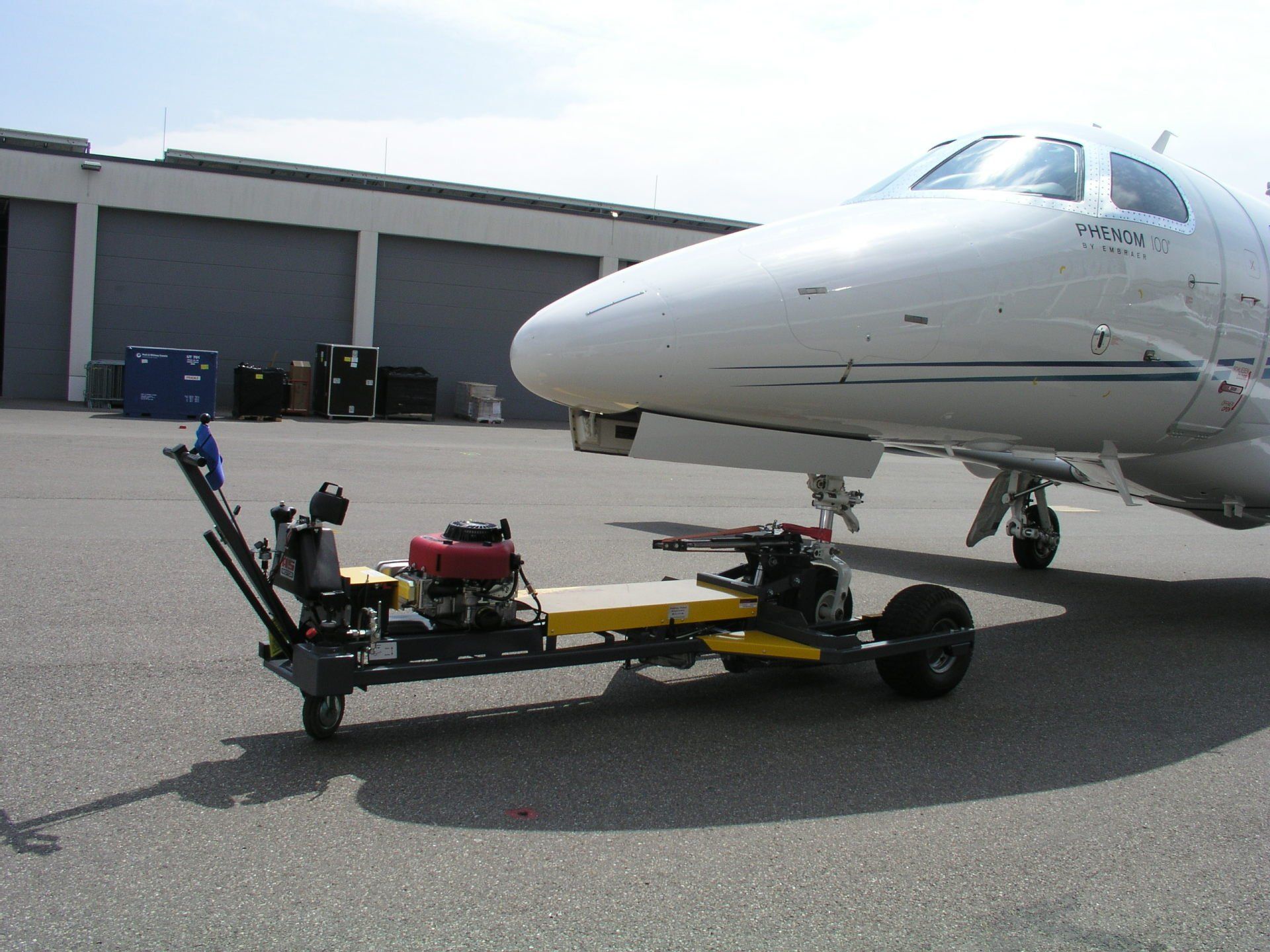

Phenom 100

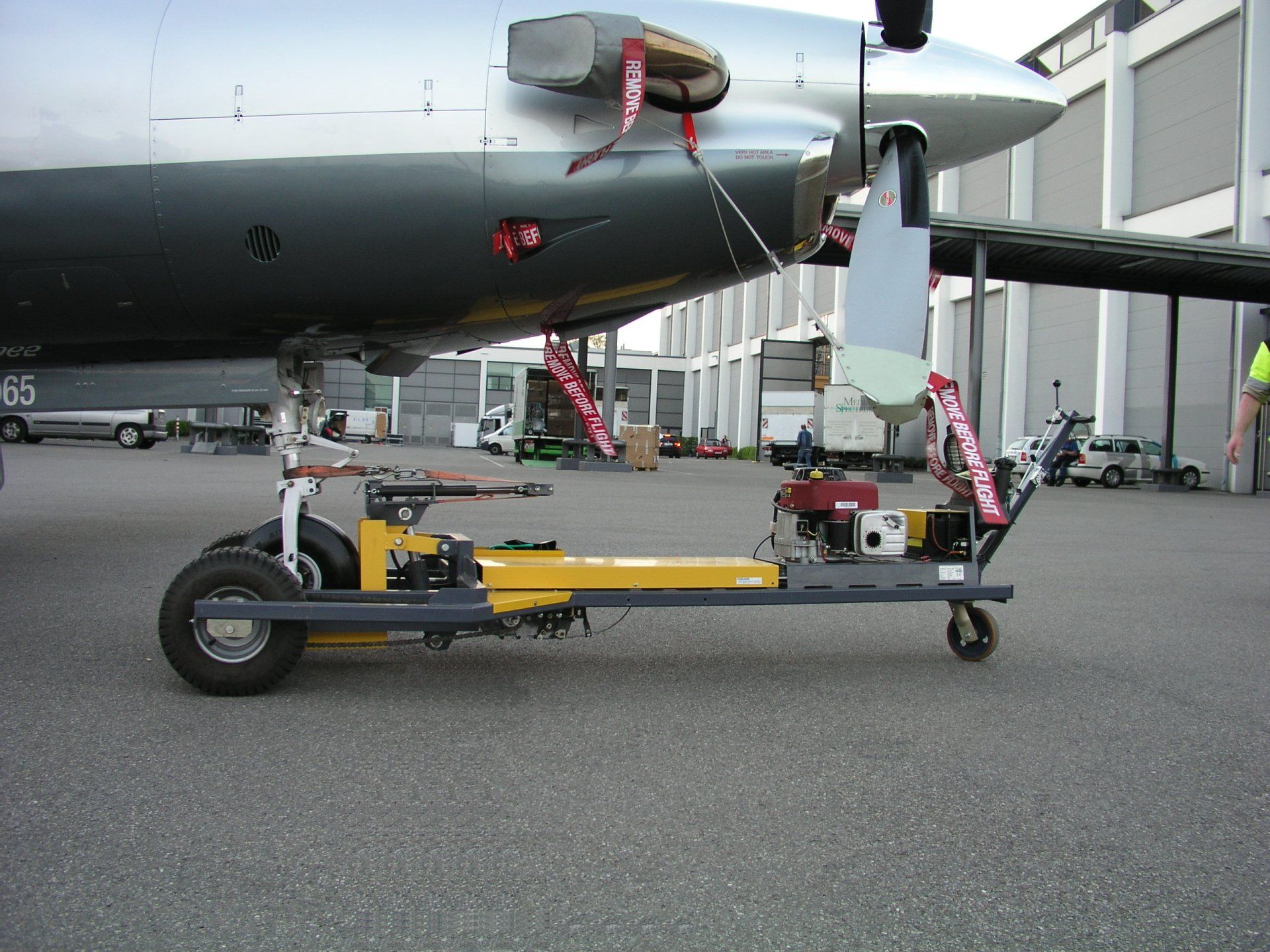

Pilatus PC-12

Piper PA 46, Cheyenne I/II

Download

Technical specifications
