C250-350
C250-350
adapted for aircraft and helicopter
up to 35.0 t.
max. take off weight
Overview
Technical Data
motor
Deutz, Yanmar or Volvo
battery
12V 120 Ah
electronic
CAN BUS
speed
Forward and backward:
max. about 15 km / h
frames
Loading weight: 6500 kg,
for aeroplanes approx. 35.0 t MTOW
weight empty: 3250 kg
weight empty: 3250 kg
drive / gearbox
Single hydraulic drive, stepless drive and speed control
control / steering
Electro-hydraulic steering operated by steering wheel

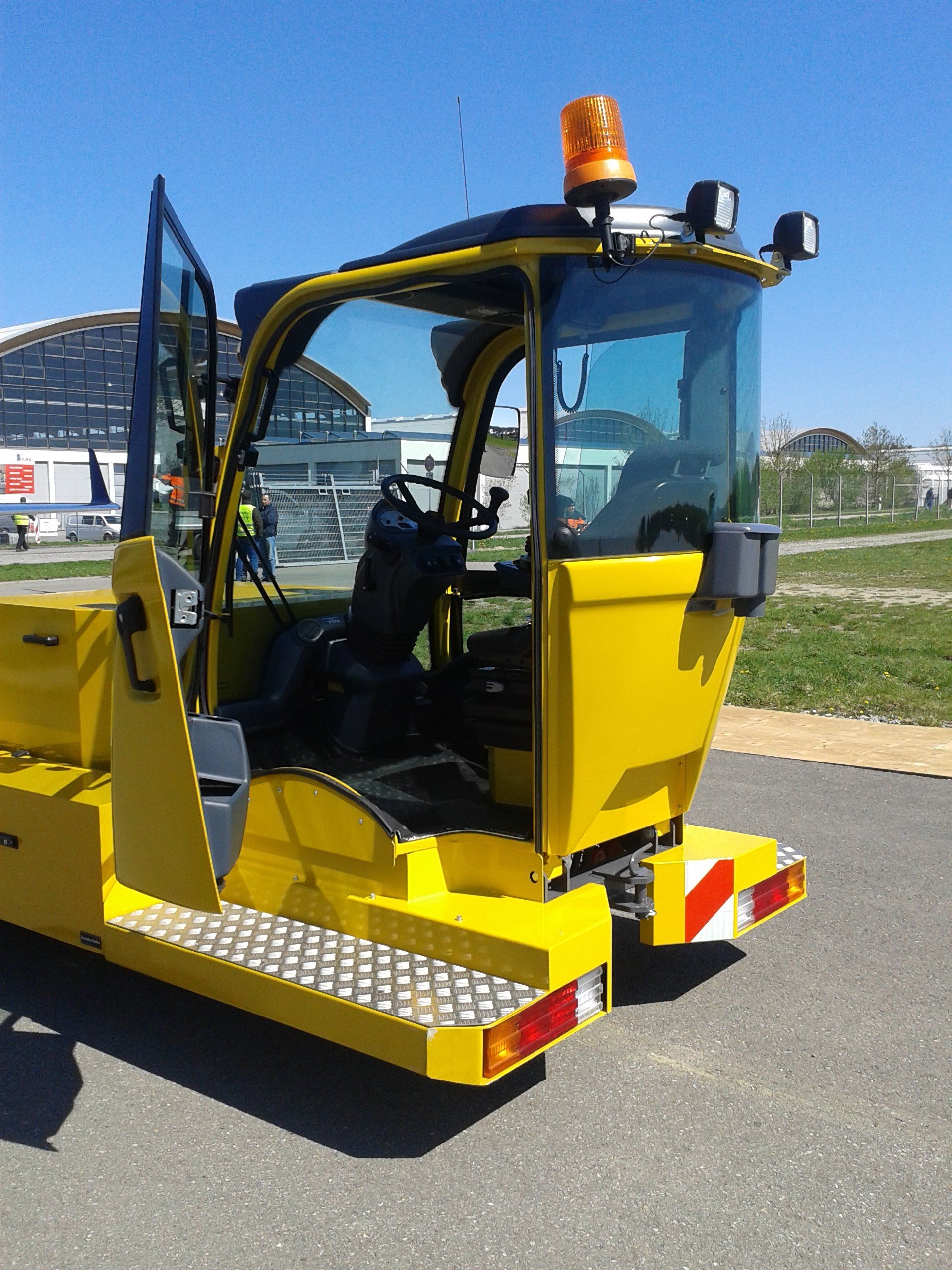

cabin
Driver cabin for one operator with ergonomically situated operating elements, side door, sliding window

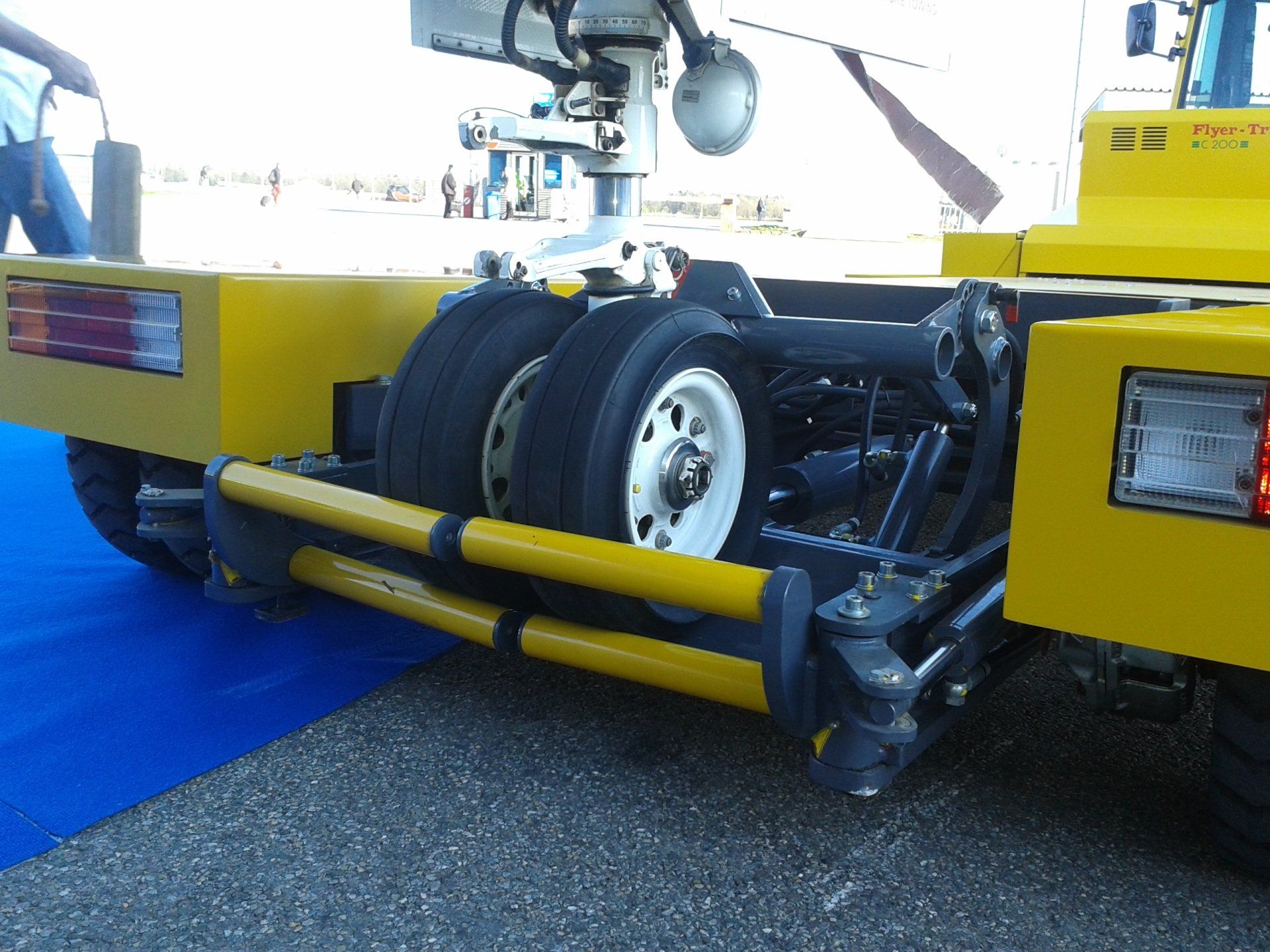

landing gear bracket
Universal receptacle for single and double front landing gear, up to width tire 800 mm, with hydraulic front gear wheel hold system, hydraulic door closing system
axes
2 drive axes
tires
Drive wheels: 690 / 6.00x9, double tires Steering wheels: 15x4.5-8, double tires
lighting / safety device
- Lighting after StVZO
- Driver and movable working lights
- Driver and movable working lights
- Safety up turn light on top
- Windshield wipers in the front with wash
- Signal horn
- Fire-extinguisher
- Windshield wipers in the front with wash
- Signal horn
- Fire-extinguisher
Configuration
Configurate your Flyer-Truck aircraft mover especially for your individual use:
- cabin equipment
- lighting
- landing gear bracket
- lighting
- landing gear bracket
Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
