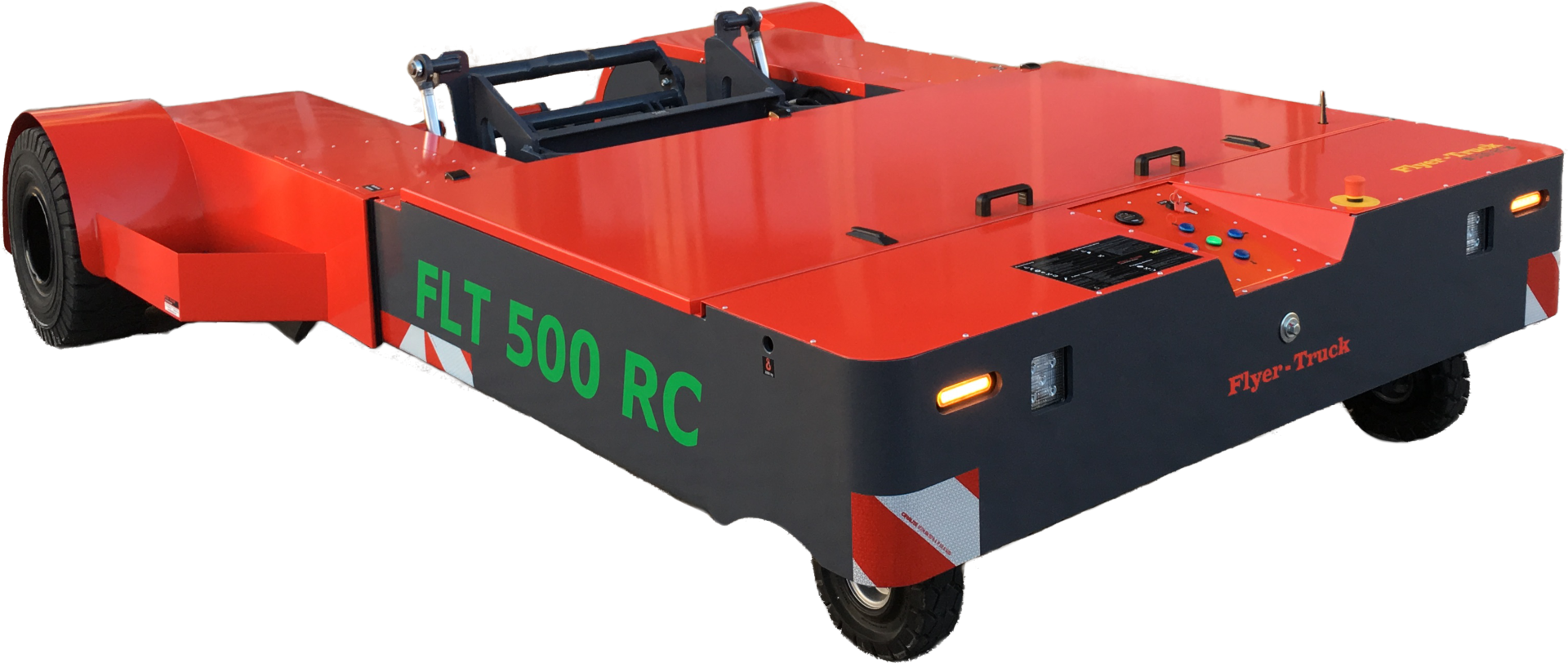

FLT 500 RC electro
FLT 500 RC electro
adapted for aircraft and helicopter
up to 50.0 t.
max. take off weight

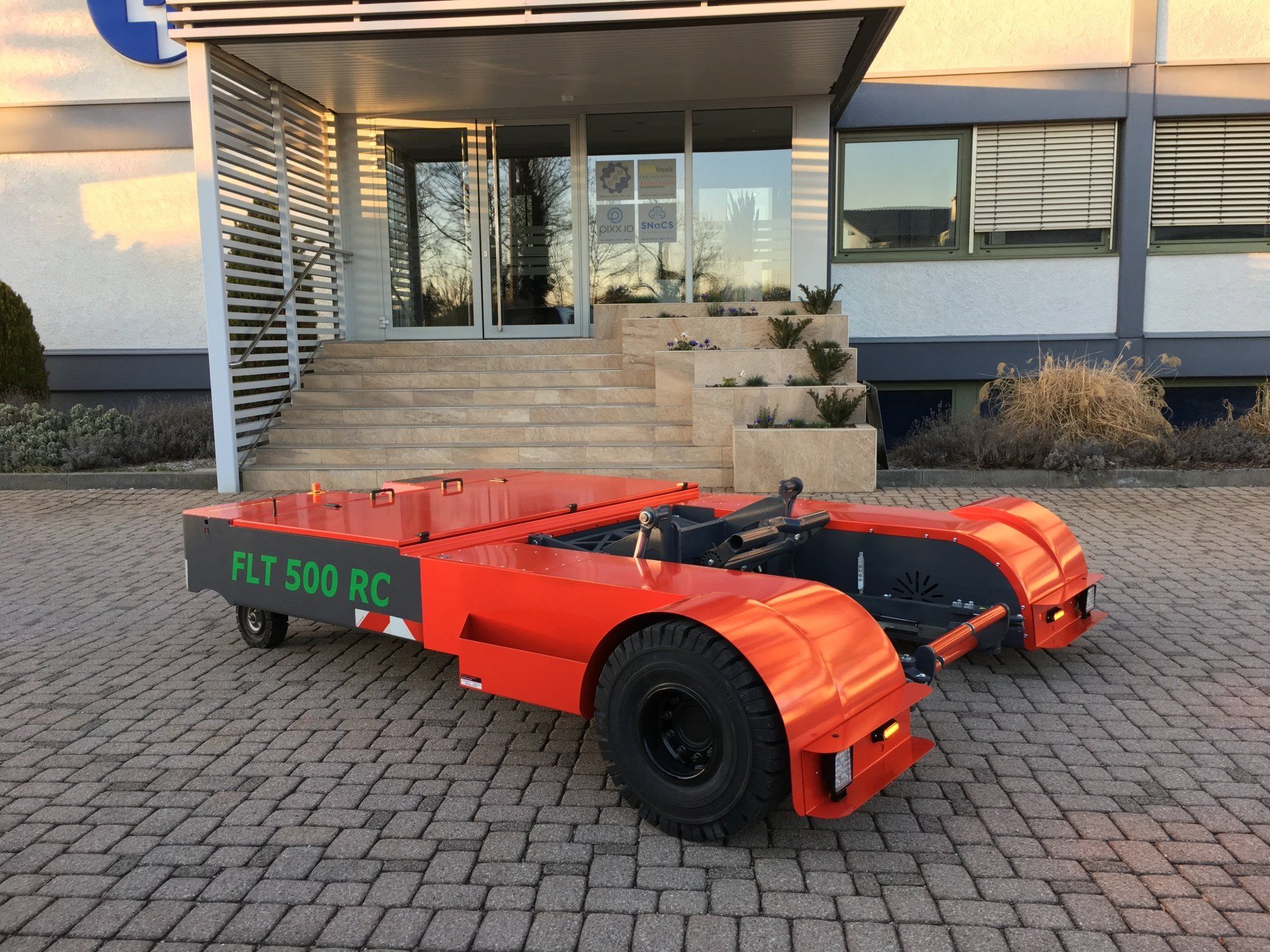

The Flyer-Truck FLT 500 RC electro is an aircraft tug for business jets up to 50 tons MTOW. A multi-talent for airplanes with single and double nose wheels. It combines the demand for value stability, easy of use, flexible use without mechanical conversion measures and the highest quality workmanship.

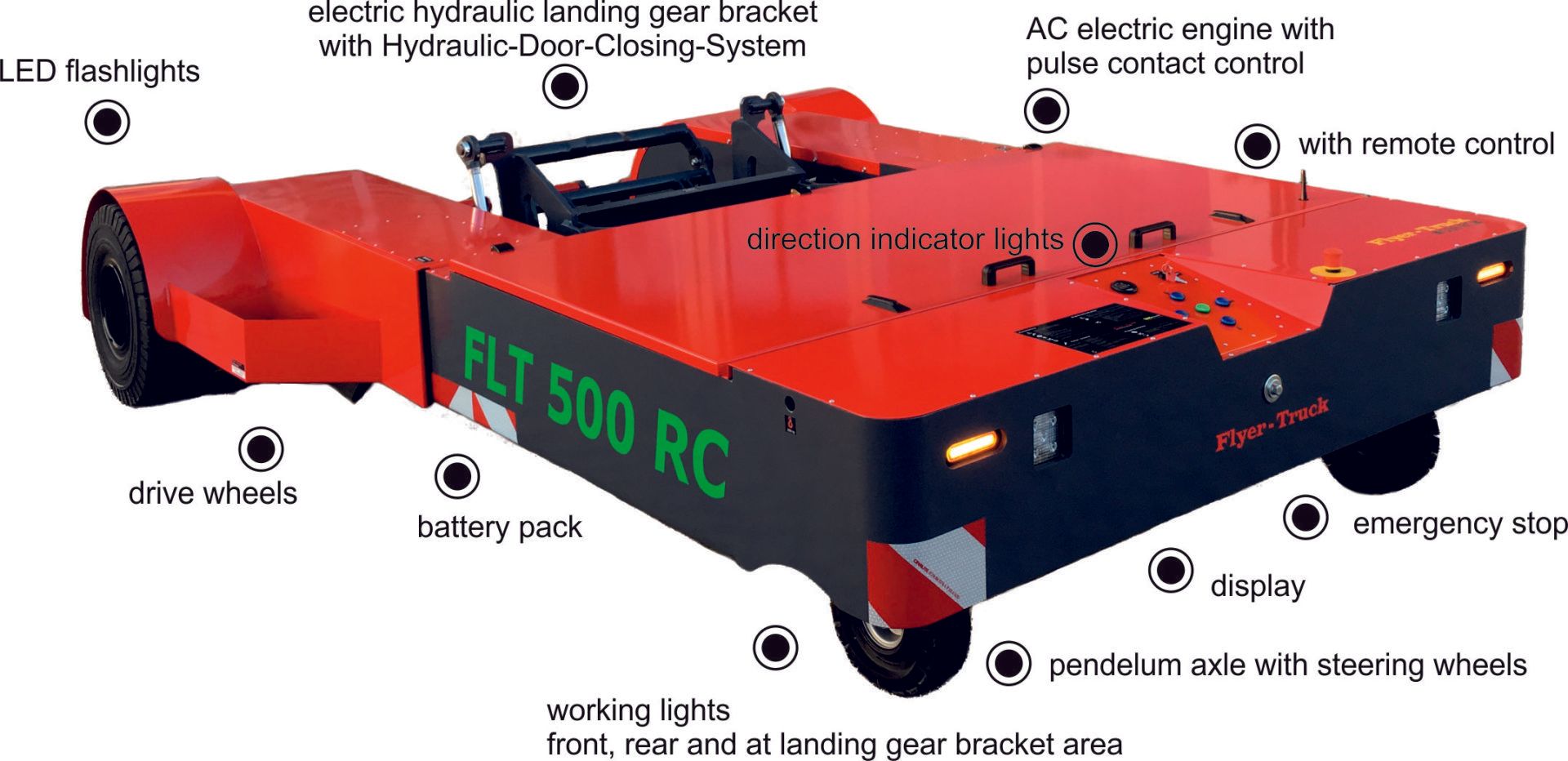

Overview
Technical Data
drive system
2 AC drive motors
3 pulse controls
battery
48V 480Ah lead-acid batteries
battery charger
HF charger 48V 50Ah with charge level indicator and power conservation
device with cell balancing, 380V main power
device with cell balancing, 380V main power
brake
Holding oil multi-disc brake
speed
Forward and backward:
approx. 0 - 12 km / h
2-stage, regulation via joystick
operating range
about 24 km depending on the speed and loading
frames
For aircraft up to approx. 50.000 kg, 110.000 lbs
Max. loading: 5.500 kg, 12.125 lbs
Empty weight: 3.350 kg
dimensions: LxWxH 3.35 x 2.59 x 0,63 m
ground clearance: 136 mm
Max. loading: 5.500 kg, 12.125 lbs
Empty weight: 3.350 kg
dimensions: LxWxH 3.35 x 2.59 x 0,63 m
ground clearance: 136 mm
steering
Remote control
With 2 finger joysticks (forward and backward / left and right)
Operator button for the landing gear bracket, fast and creep speed, light, safety operating
With 2 finger joysticks (forward and backward / left and right)
Operator button for the landing gear bracket, fast and creep speed, light, safety operating

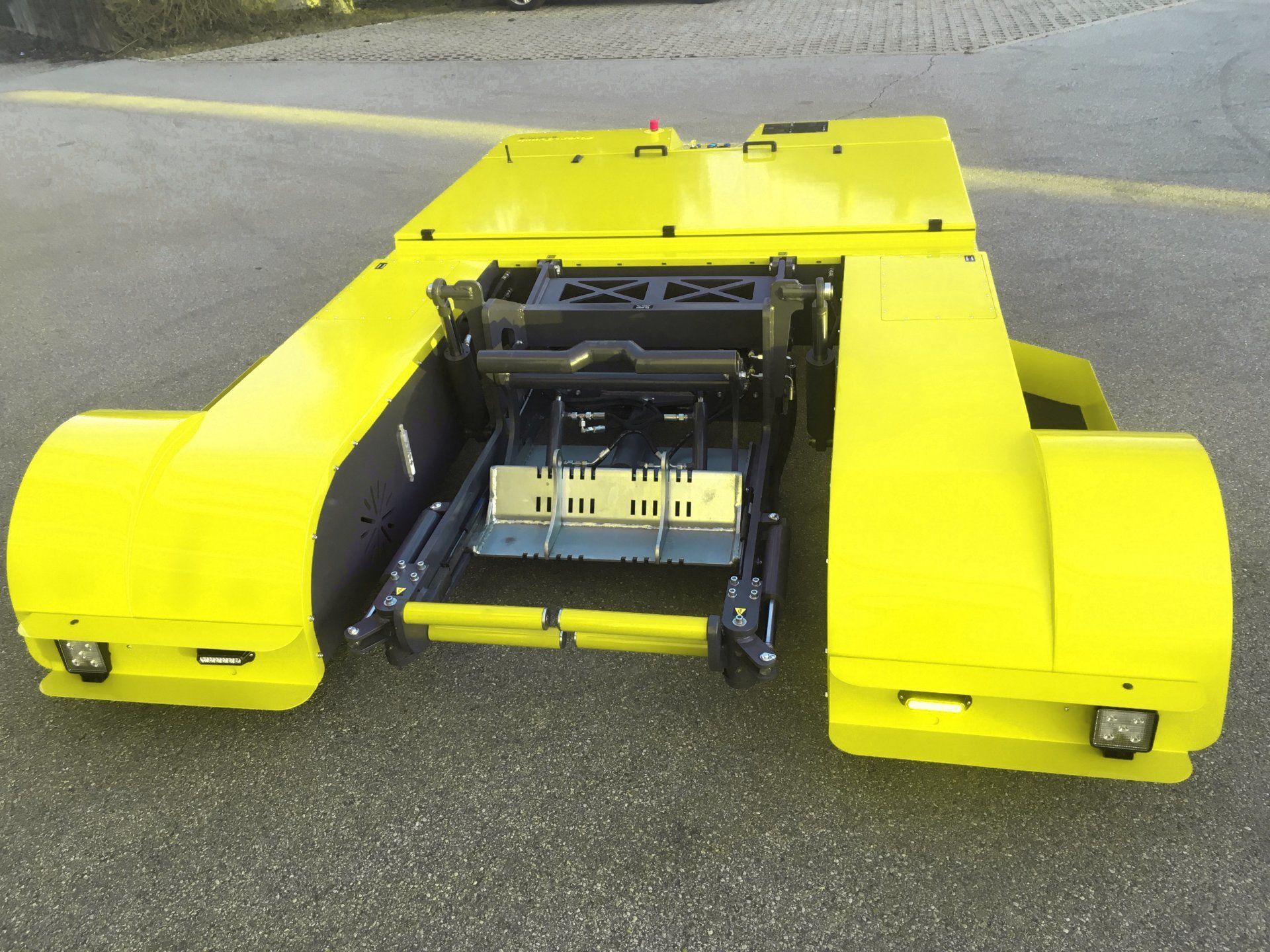

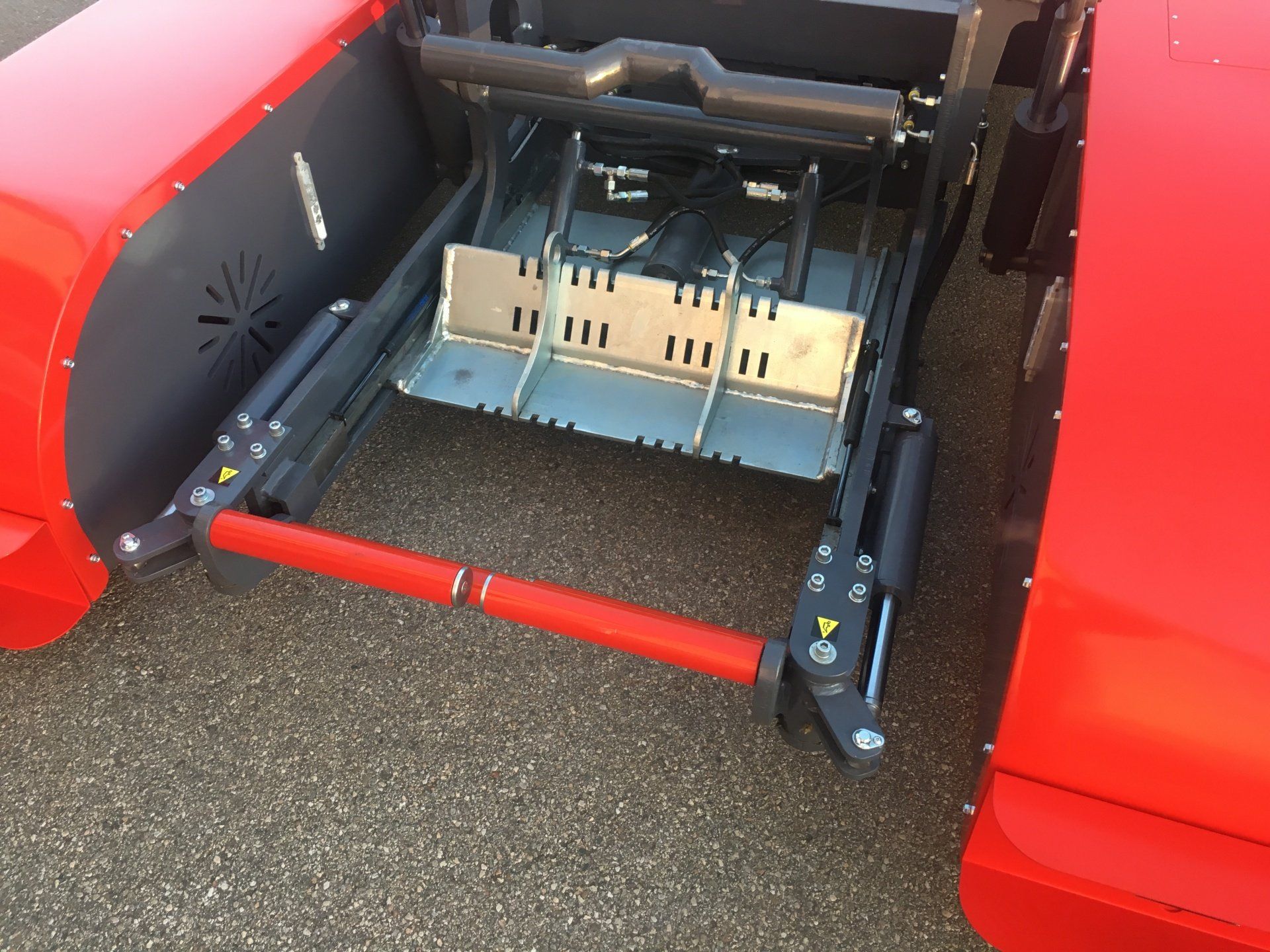

landing gear bracket
Electric hydraulic landing gear bracket:
- complete electrical guided lifting and holding hydraulic
- hydraulic door opening and closing system
- ramp hydraulic for different wheel diameter
- rotatable draw roll
- wheel hold system for safety anti output
- wheel down holder landed for single and double landing gear wheels
- safety system anti uncontrolled opening of the door opener
Dimensions:
- max. landing gear width 660 mm
- lifting height 140 mm
- complete electrical guided lifting and holding hydraulic
- hydraulic door opening and closing system
- ramp hydraulic for different wheel diameter
- rotatable draw roll
- wheel hold system for safety anti output
- wheel down holder landed for single and double landing gear wheels
- safety system anti uncontrolled opening of the door opener
Dimensions:
- max. landing gear width 660 mm
- lifting height 140 mm
axes
Front axle: pendulum axle with electric steering
Drive axle: single drive closed, with multi-disc brake
Drive axle: single drive closed, with multi-disc brake
tires
2 piece drive wheels, solid rubber, heavy duty, 225-75R10
2 steering wheels, heavy duty, 400 x 4
2 steering wheels, heavy duty, 400 x 4
lighting / safety device
2 emergency switch, 1 on the vehicle and 1 on the remote control
Working light on the landing gear bracket
4 LED driving lights
LED flashlight yellow rear and front
Warning signal during driving
Warning strips
2 tool boxes
Indicator lights forward and backward / left - right
key switch
Battery capacity indicator, operating hours counter
Working light on the landing gear bracket
4 LED driving lights
LED flashlight yellow rear and front
Warning signal during driving
Warning strips
2 tool boxes
Indicator lights forward and backward / left - right
key switch
Battery capacity indicator, operating hours counter

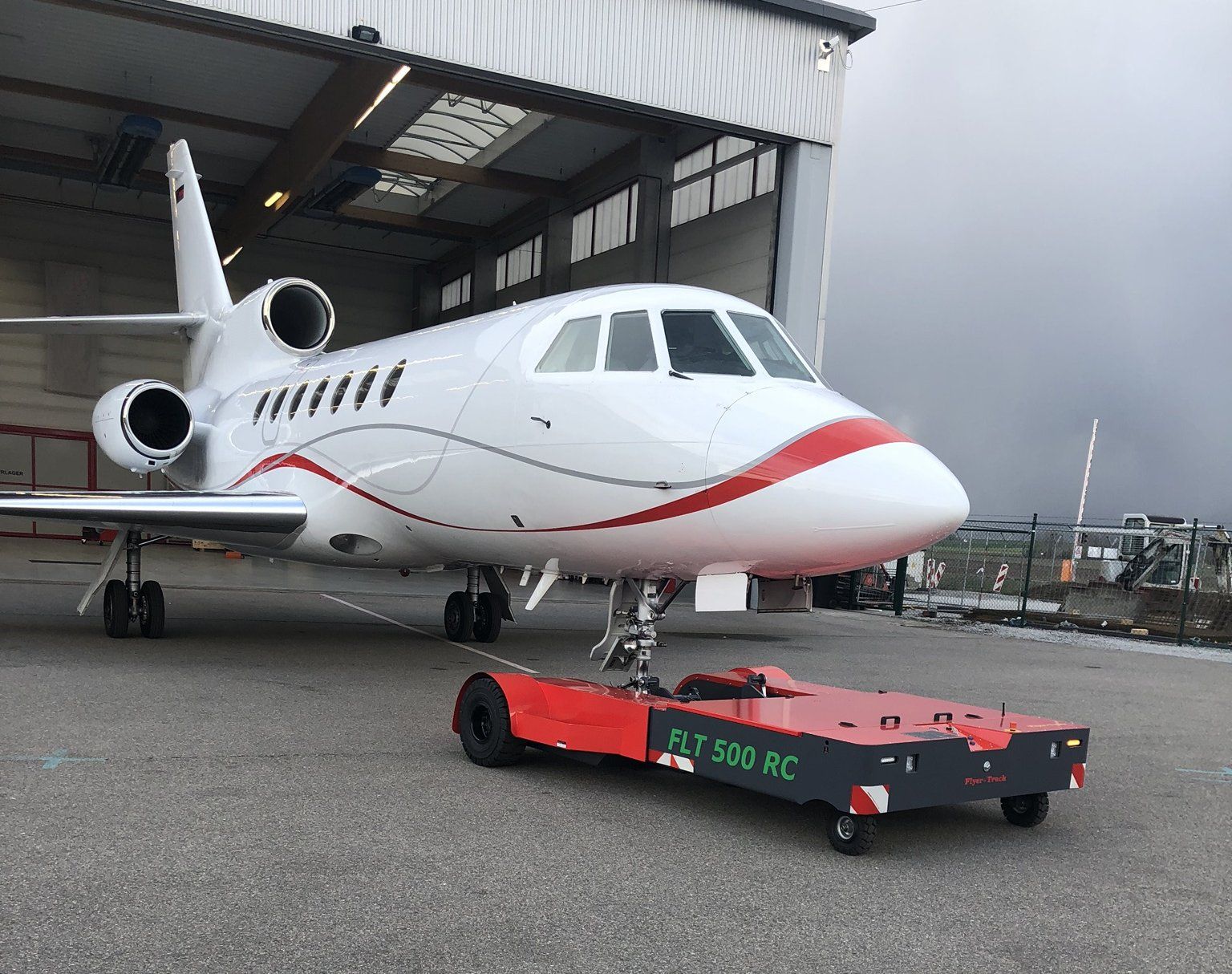

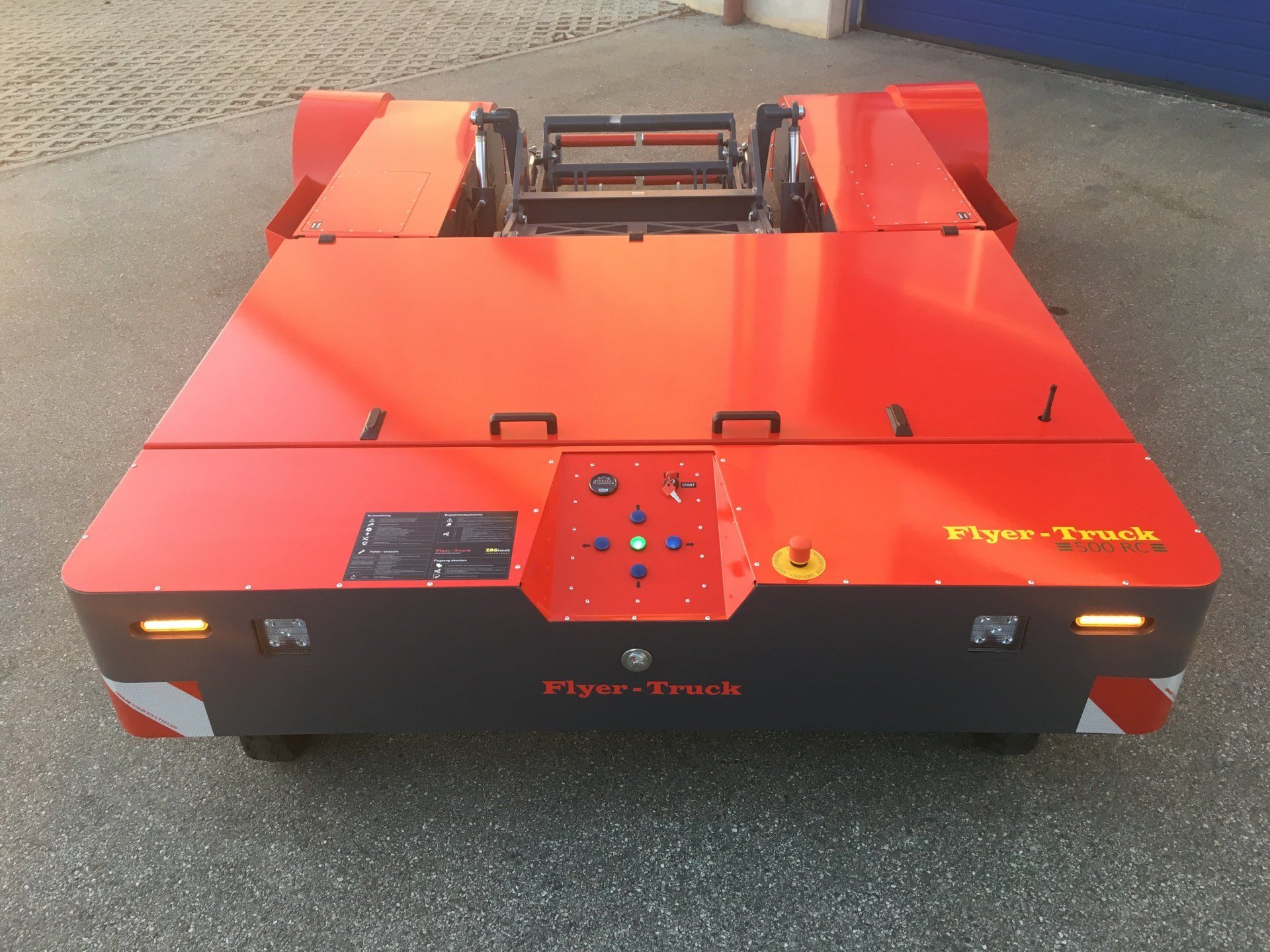

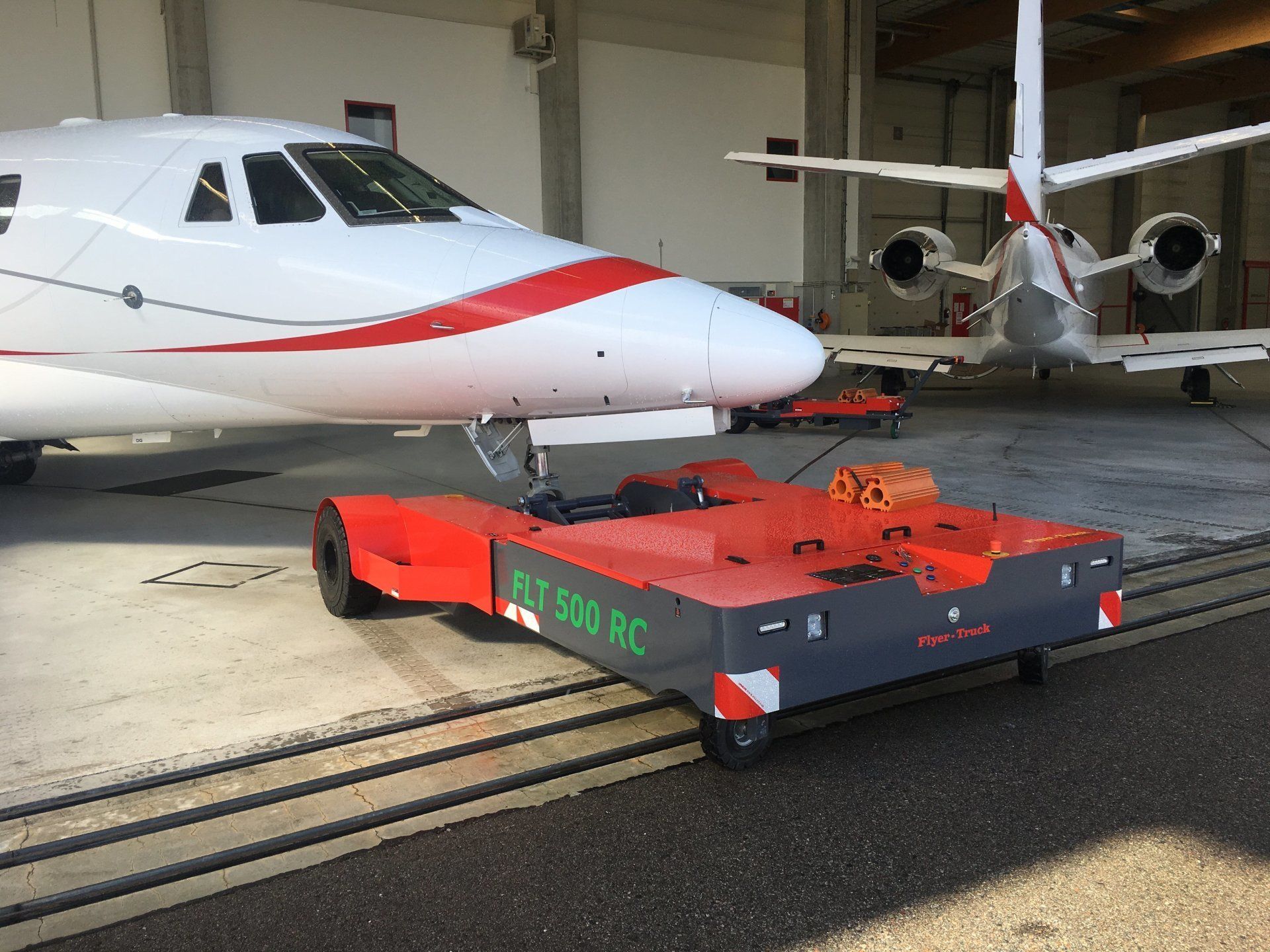

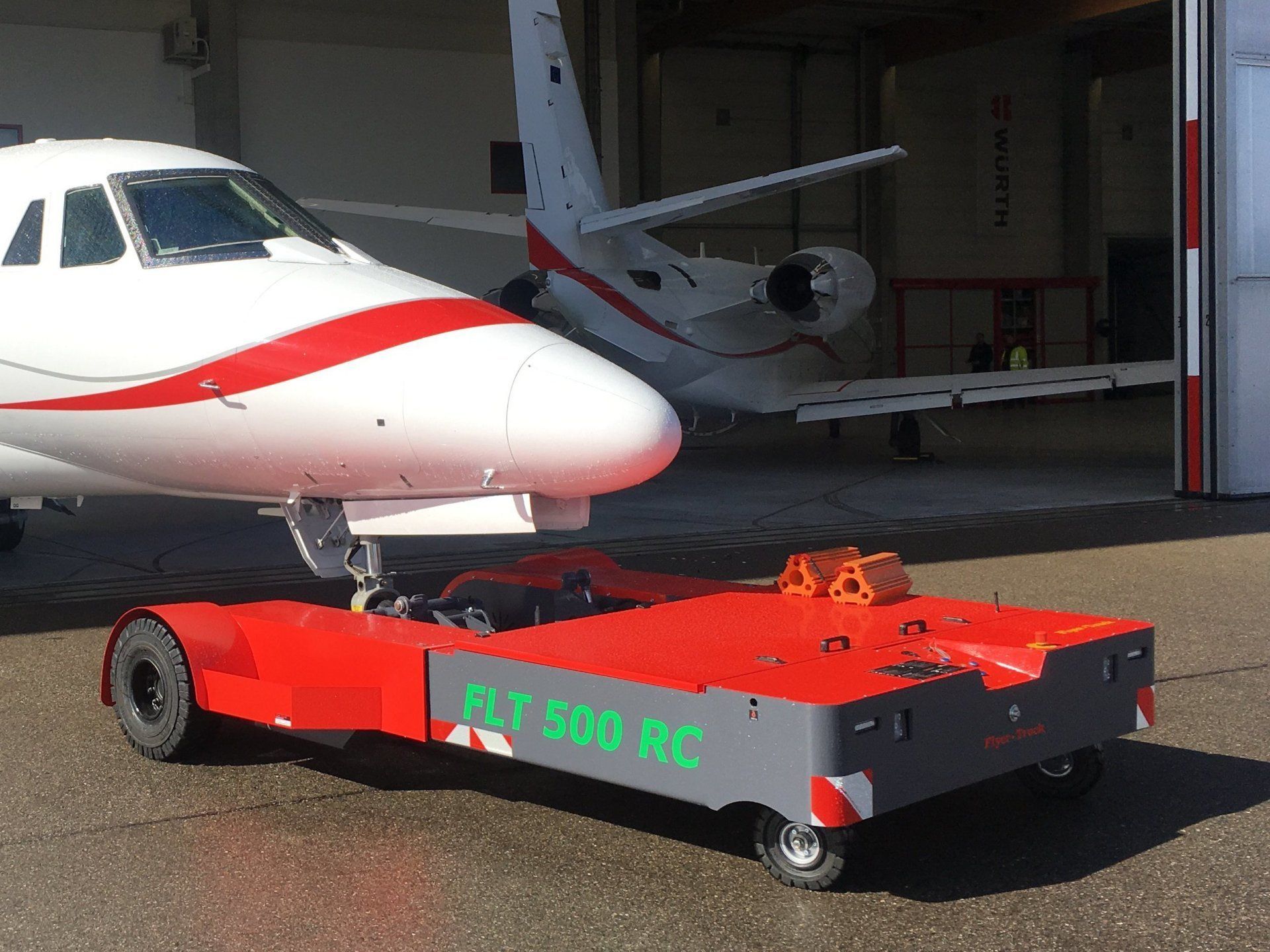

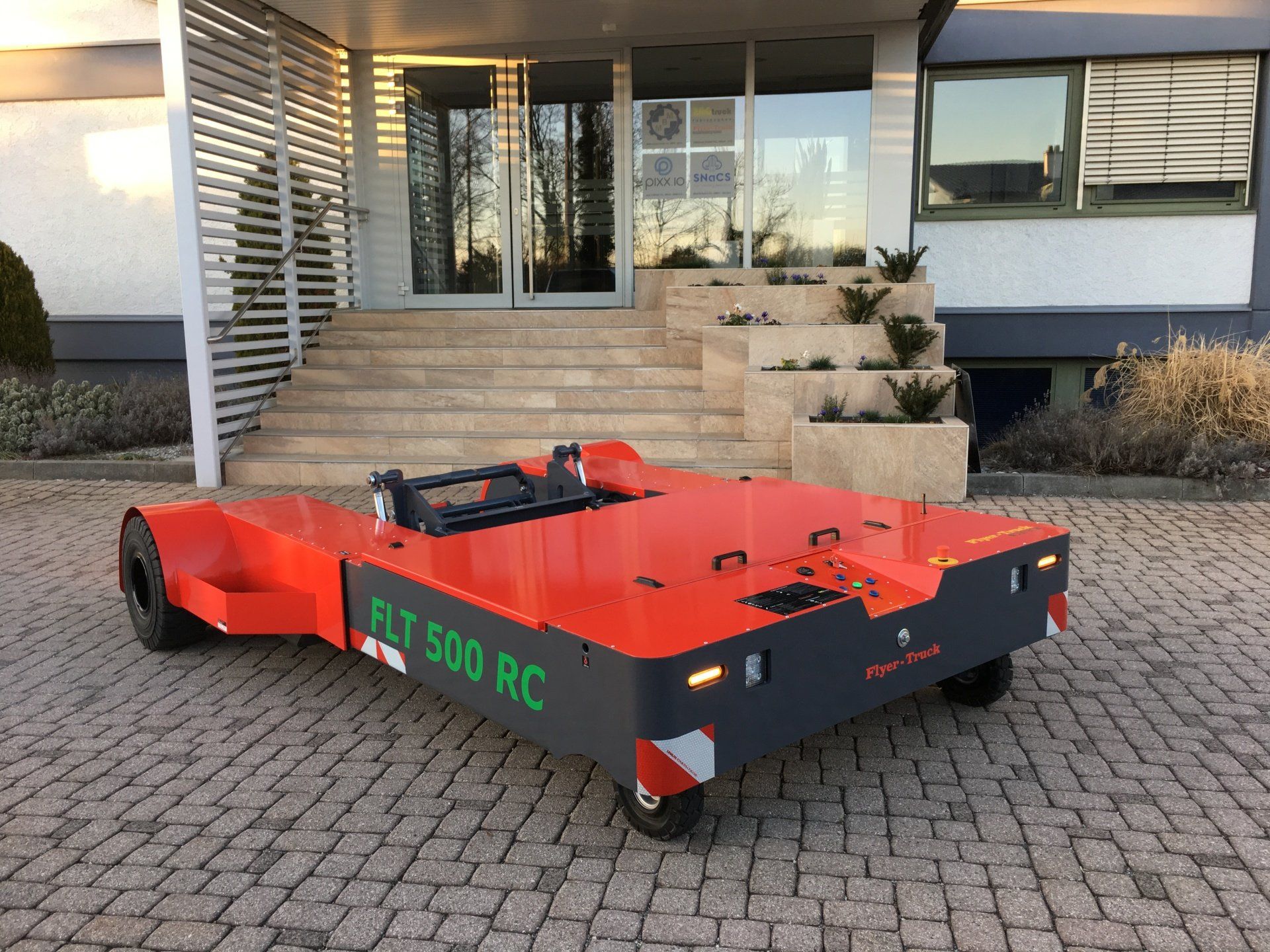

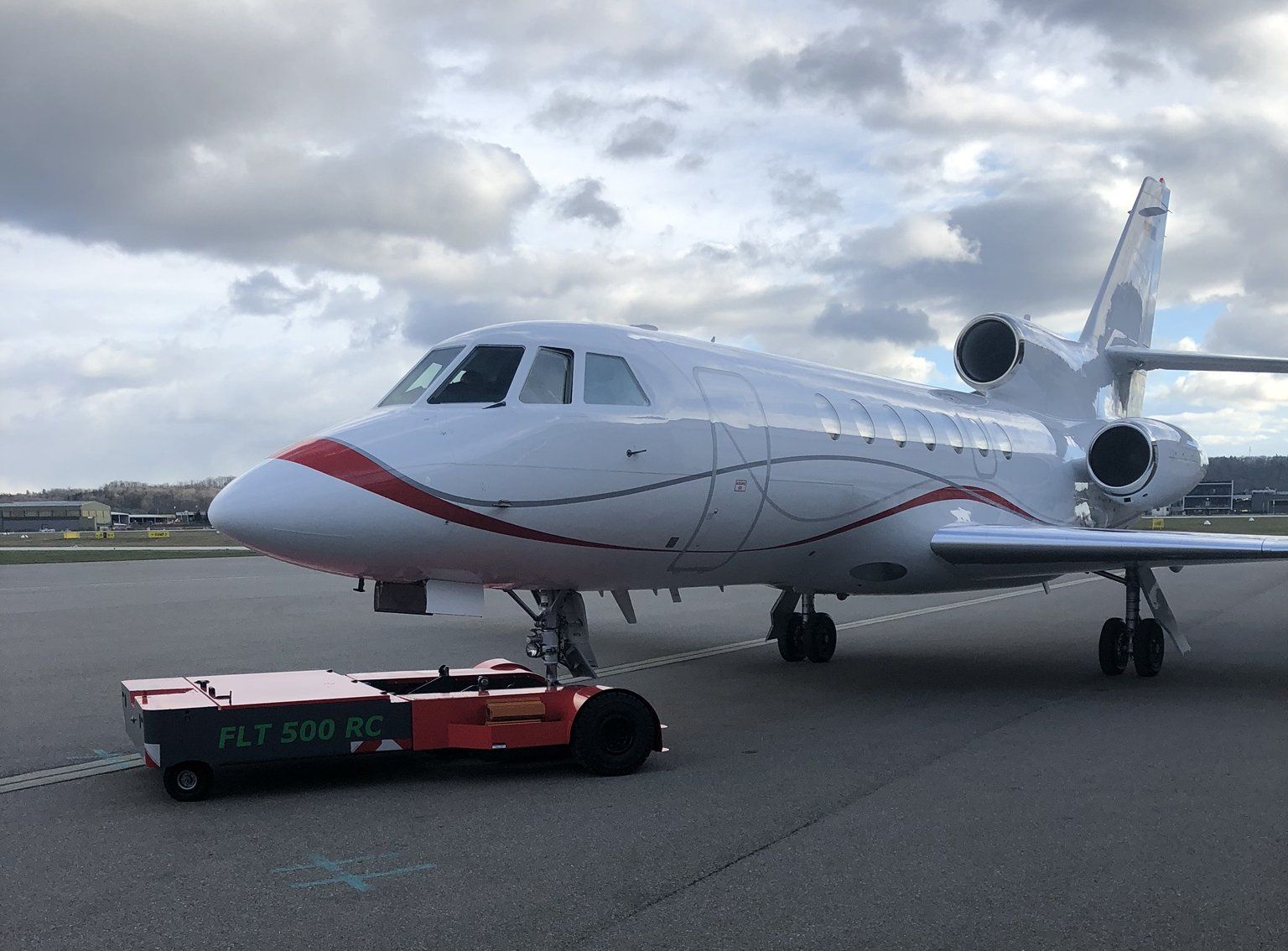

Gallery
Adapted for aircraft types like:
Beechcraft
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
Cessna
Challenger
Embraer
Falcon
Gulfstream
Hawker
